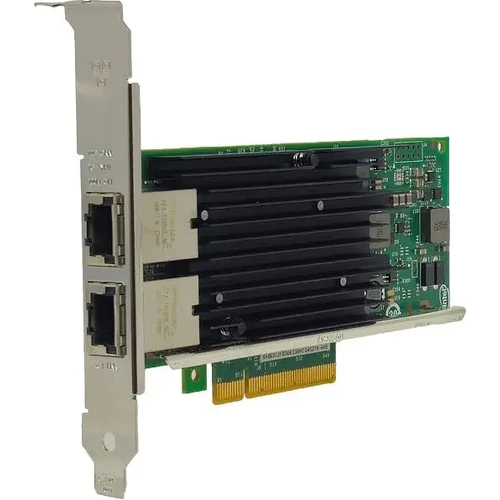

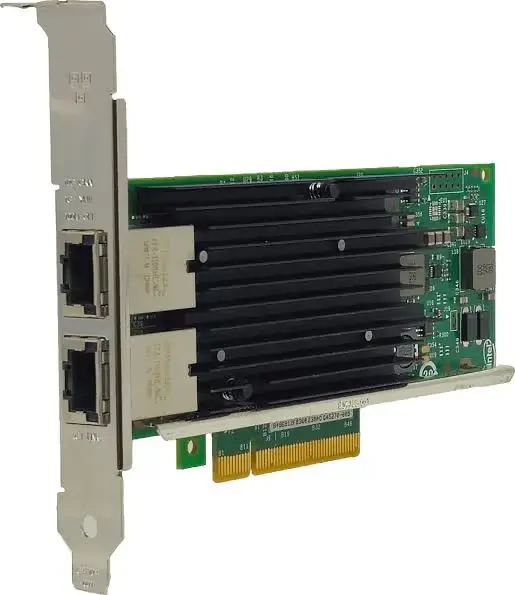

The Intel® Ethernet Converged Network Adapter X540-T2 (Intel® Ethernet CNA X540-T2) is the latest innovation in Intel’s leadership to drive 10 Gigabit Ethernet into the broader server market. This adapter hosts Intel’s latest Ethernet silicon, the Intel® Ethernet Controller X540, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet (10 GbE) on the latest server platforms.

The X540 family of products works with existing networks today. It works with legacy Gigabit Ethernet (GbE) switches and CAT-6a cabling. Install the X540 adapter into a server and the auto-negotiation between 1 GbE and 10 GbE provides the necessary backwards compatibility that most customers require for a smooth transition and easy migration to 10 GbE. When time and budget allows, 10GBASE-T switches can be added any time to experience the full benefits of 10 GbE.

Essentials

  • Product P/N: X540-T2
  • Product Collection: 500 Series Network Adapters (up to 10GbE)
  • Launch Date: Q1'12
  • Vertical Segment: Server
  • Cable Medium: Copper
  • Cabling Type: RJ45 Category 6 up to 55m; Category 6A up to 100m
  • Bracket Height: Low Profile and Full Height
  • Product Order Code: X540T2, X540T2BLK

Networking Specifications

  • Port Configuration: Dual
  • Data Rate Per Port: 10GbE/1GbE/100Mb
  • Intel® Virtualization Technology for Connectivity (VT-c): Yes
  • Speed & Slot Width: 5.0 GT/s, x8 Lane
  • Controller: Intel® Ethernet Controller X540

Package Specifications

  • System Interface Type: PCIe v2.1 (5.0 GT/s)
  • Bus Width: PCIe x8 lane

Intel® Virtualization Technology for Connectivity

  • On-chip QoS and Traffic Management: Yes
  • Flexible Port Partitioning: Yes
  • Virtual Machine Device Queues (VMDq): Yes
  • PCI-SIG* SR-IOV Capable: Yes

Advanced Technologies

  • iWARP/RDMA: No
  • Intel® Data Direct I/O Technology: Yes
  • Intelligent Offloads: Yes
  • Storage Over Ethernet: iSCSI, FCoE, NFS

(Intel-X540T2BLK-R)

General Information
Category Network interface cards
Description Intel Gigabit ET Dual Port Server Adapter - Network adapter - PCIe 2.0 x4 low profile - Gigabit Ethernet x 2
Manufacturer Intel
UNSPSC 43201404
Main Specifications
Dimensions & Weight / Depth 16.7 cm
Dimensions & Weight / Height 6.8 cm
Header / Brand Intel
Networking / Connectivity Technology Wired
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Networking / Type Network adapter
Packaged Quantity 1
Dimensions & Weight
Depth 16.7 cm
Height 6.8 cm
Environmental Parameters
Max Operating Temperature 55 °C
Min Operating Temperature 0 °C
Expansion / Connectivity
Compatible Slots 1 x PCI Express 2.0 x4 - low-profile
Interfaces 2 x 1000Base-T - RJ-45
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 2.0 x4
PCI Specification Revision PCIe 2.0
Miscellaneous
Compatible with Windows 7 "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards FCC Class B certified, UL, VCCI, C-Tick, BSMI, MIC, RoHS
Included Accessories Low-profile bracket
Networking
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP)
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Features Flow control, fault tolerance, load balancing, VLAN support, IPv6 support, Intel I/OAT, VMDq
Network / Transport Protocol TCP/IP, UDP/IP, IPSec
Ports Gigabit Ethernet x 2
Remote Management Protocol SNMP
Status Indicators Link OK, link/activity
Processor / Memory
Processor Intel 82576
Software / System Requirements
Additional Requirements PCIe slot
Software Included Intel PROSet
SKU Intel-X540T2BLK-R
Barcode # 634607485030
Brand Intel
Type Network Card
MPN X540T2BLK
Model X540-T2
Shipping Cubic 0.017794000m3
