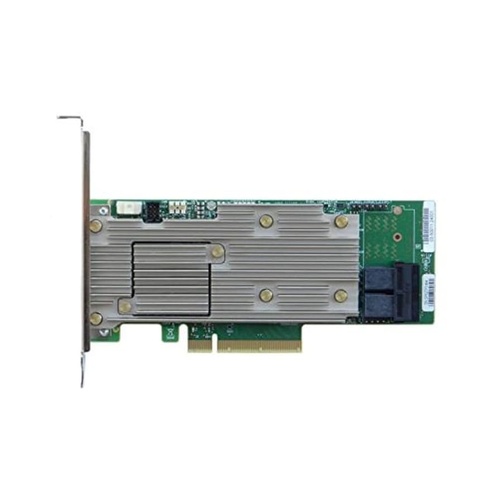

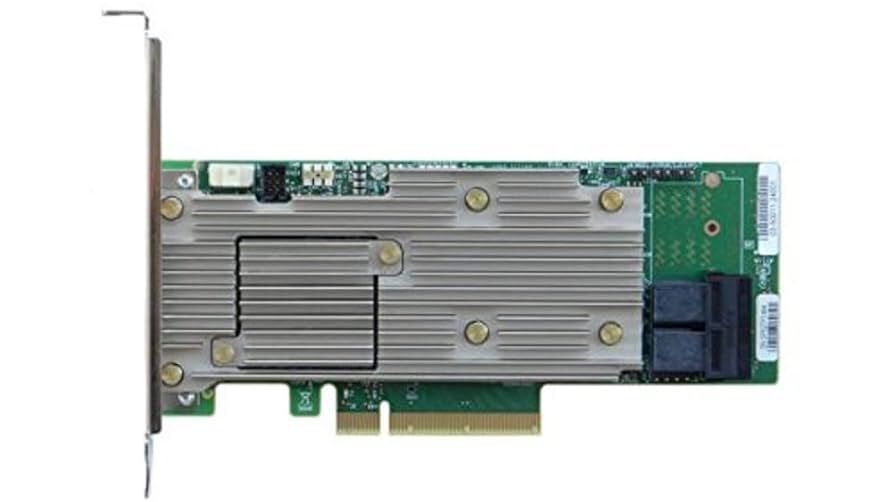

The Intel® RAID Adapter RSP3DD080F is designed for use in content and web hosting appliances, security appliances, financial institutions, cloud service providers, and enterprise IT. Its standard, low-profile MD2 form factor is designed for use in both Intel and third-party server products. It supports RAID levels 0/1/10/5/50/6/60 and optional maintenance-free cache backup with 4 GB DDR4. With eight internal ports, the Intel® RAID Adapter RSP3DD080F enables NVMe, SAS, and SATA performance and scalability. It provides high uptime for mass storage, with maximum reliability for high-intensity workloads.

(IntelRaidRSP3DD080F)

General Information
Category Peripheral controller cards
Description Intel RAID Controller RSP3DD080F - Storage controller (RAID) - 8 Channel - SATA 6Gb/s / SAS 12Gb/s / PCIe - low profile - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 3.0 x8
Manufacturer Intel
UNSPSC 43201407
Main Specifications
General / Product Type Storage controller (RAID)
Header / Brand Intel
Miscellaneous / Product Color Green
Packaged Quantity 1
Service & Support / Type 3-year warranty
Storage Controller / Form Factor Plug-in card
Expansion / Connectivity
Interfaces 2 x SATA 6Gb/s / SAS 12Gb/s / PCIe - 4 x Mini SAS HD (SFF-8643) (internal)
General
Device Type Storage controller (RAID) - plug-in card - low profile
Host Bus PCIe 3.0 x8
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Miscellaneous
Features Vertical orientation
Included Accessories Low-profile bracket
Storage Controller
Buffer Size 4 GB
Channel Qty 8
Data Transfer Rate 12 Gbit/s
Interface SATA 6Gb/s / SAS 12Gb/s / PCIe
Max Storage Devices Qty 255
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Supported Devices Disk array (RAID)
SKU IntelRaidRSP3DD080F
Barcode # 601527559417
Brand Intel
Brand Intel
Type RAID Controller Card
Model RSP3DD080F
Shipping Cubic 0.017794000m3
