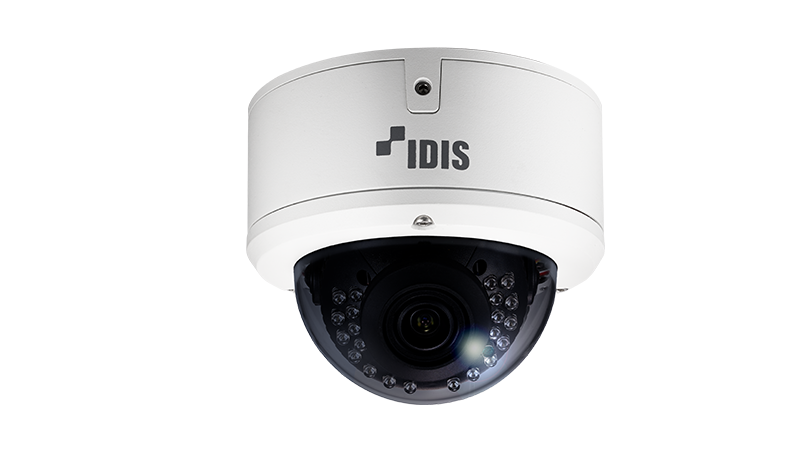

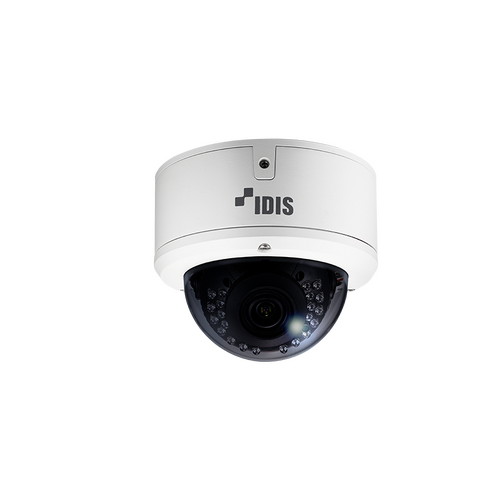

DirectCX Full HD Vandal-Resistant IR Dome Camera

  • Full HD (1080p) resolution
  • Vari-focal Lens (f=2.8mm ~ 12mm)
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • Motion Detection
  • De-fog
  • HSBLC
  • Vandal Proof / IP66 supports
  • Coaxial OSD Control

(TC-D4222WRX)

Video
Image Sensor 1/2.8" CMOS Sensor
Max. Resolution 1920 x 1080
Scanning Mode Progressive Scan
Frame Rate -
Lens Type Vari-focal
Focal Length 2.8 ~ 12.0mm
Aperture F1.4 ~ F2.8
Iris Control DC Iris
Angular Field of View WIDE : 95.1°(H) 50.8°(V) 110.6°(D)
TELE : 35.6°(H) 20.0°(V) 40.8°(D)
Min. Illumination COLOR : 0.1 Lux @ F1.4
B/W : 0 Lux (IR LED ON)
S/N Ratio More than 50dB
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30,1/25Sec ~ 1/30000Sec) / Anti-Flicker
Day and Night Yes (ICR)
IR Distance (LEDs) 30 m / 98.4 ft(24ea)
Video Out 1 HD BNC, 1 SD BNC
Function
Functions via OSD menu control · AGC : 0 ~ 10 Level Adjustable
· Brightness : 0 ~ 20 Level Adjustable
· Sens-UP : OFF / x2 ~ x32
· WDR(Wide Dynamic Range) : OFF / ON (Low,Middle,High)
· Backlight Compensation(BLC) : OFF/ON
· HLC : 1 ~ 20 Level Adjustable(ALL DAY/NIGHT ONLY)
· Motion Detection : OFF/ON (4 Zone)
· Privacy Masking : OFF/ON (16 Zone)
· Day & Night : Color/B&W/EXTERN
· Smart-IR(IR OPTIMIZER) : 0~20 Level Adjustable
· White Balance : AUTO / AUTOext / PRESET / MANUAL (3,000K, 5,000K, 8,000K)
· Digital Noise Reduction : OFF/LOW/MIDDLE/HIGH
· Mirror : MIRROR, FLIP
· D-ZOOM(EZOOM) : X
· Sharpness : 0~10 Level Adjustable
· De-fog : OFF/ON
· GAMMA Correction : r = 0.45 ~ 0.75
· Lens Shading(LSC) : X
· Language : ENG / CHN / CHN(S) / JPN / KOR
Pan/Tilt/Rotate
Pan Range 0° ~ 360°
Tilt Range -5° ~ 55°
Rotate Range 0° ~ 360°
Environmental
Vandal Proof Casing IK10
Outdoor Ready IP66
Operating Temperature -10℃ ~ +50℃ (14℉ ~ +122℉)
Operating Humidity 0% ~ 90%
Electrical
Power Source DC 12V, AC 24V
Power Consumption 6W
Mechanical
Dimensions Ø136mm x 111mm (Ø5.35" x 4.37")
Weight 0.903kg (1.99lb)
SKU TC-D4222WRX
Barcode # 5060248224076
Brand IDIS
Brand IDIS
Type Dome Security Camera
Model TC-D4222WRX
Shipping Cubic 0.017794000m3
