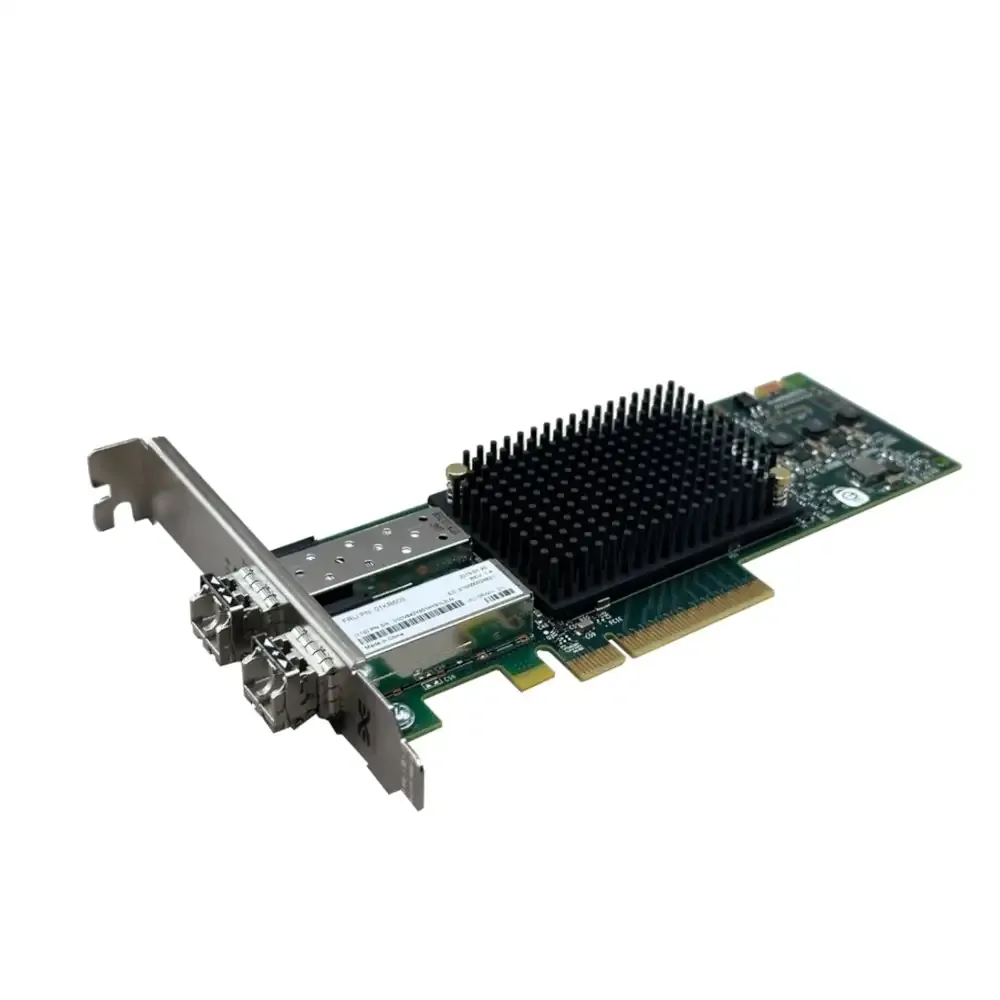

The IBM/Lenovo 01KR609 is an Emulex 16Gb Gen6 Dual-Port Fibre Channel (FC) Host Bus Adapter (HBA), a high-performance server component for connecting to storage area networks (SANs), offering dual SFP+ ports, PCI-E 3.0 x8 interface, and designed for demanding enterprise environments requiring fast, reliable data access for System x and ThinkSystem servers.

Key Features & Technical Specifications

Dynamic Multicore Architecture:
Allocates processing resources dynamically across eight cores to maximize active/standby or dual-active port performance.

ExpressLane™ QoS: Prioritizes mission-critical I/O traffic to high-performance flash/SSD arrays over spinning media to reduce bottlenecks.

Brocade ClearLink Diagnostics: Integrates directly with Brocade SAN fabrics to simplify physical link testing and cable validation.

Virtualization Support: Supports N_Port ID Virtualization (NPIV) and SR-IOV (up to 255 Virtual Functions) to maximize VM density per host.

(IBM01KR6092-R)

Product Type HBA (SFP+)
Brand IBM
Model LPe3100
Part Number 01KR609
OEM Model Emulex
Chipset LPE31002
REV 1.4
Bracket Profile High Height
Number of Ports 2 x SFP+
Transceiver Modules 2 x 16Gb Short-Wavelength *¹
Data Transfer Rate 16Gbps
Connector Type SFP \ DAC
Thermal Solution Passive (fanless heatsink)
Interface Type PCIe x8 3.0
Compatibility Rackmount Servers
Notes *¹ Subject to stock availability, Finisar or Avago transceiver
    will be supplied.

      AFBR-57F5MZ-ELX OR
      FTLF8529P3BCV-EM
SKU IBM01KR6092-R
Barcode # 615678822603
Brand IBM
Brand IBM
Type SFP+ Server Adapter
MPN 01KR609
Model LPE31002
Manufacturer Part Number 01KR609
Bracket Profile High Height
Shipping Cubic 0.003744000m3
