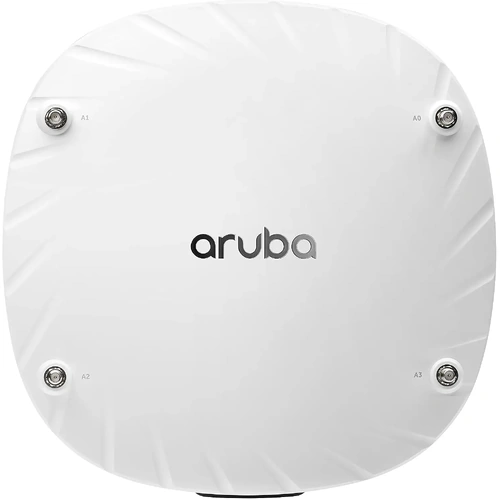

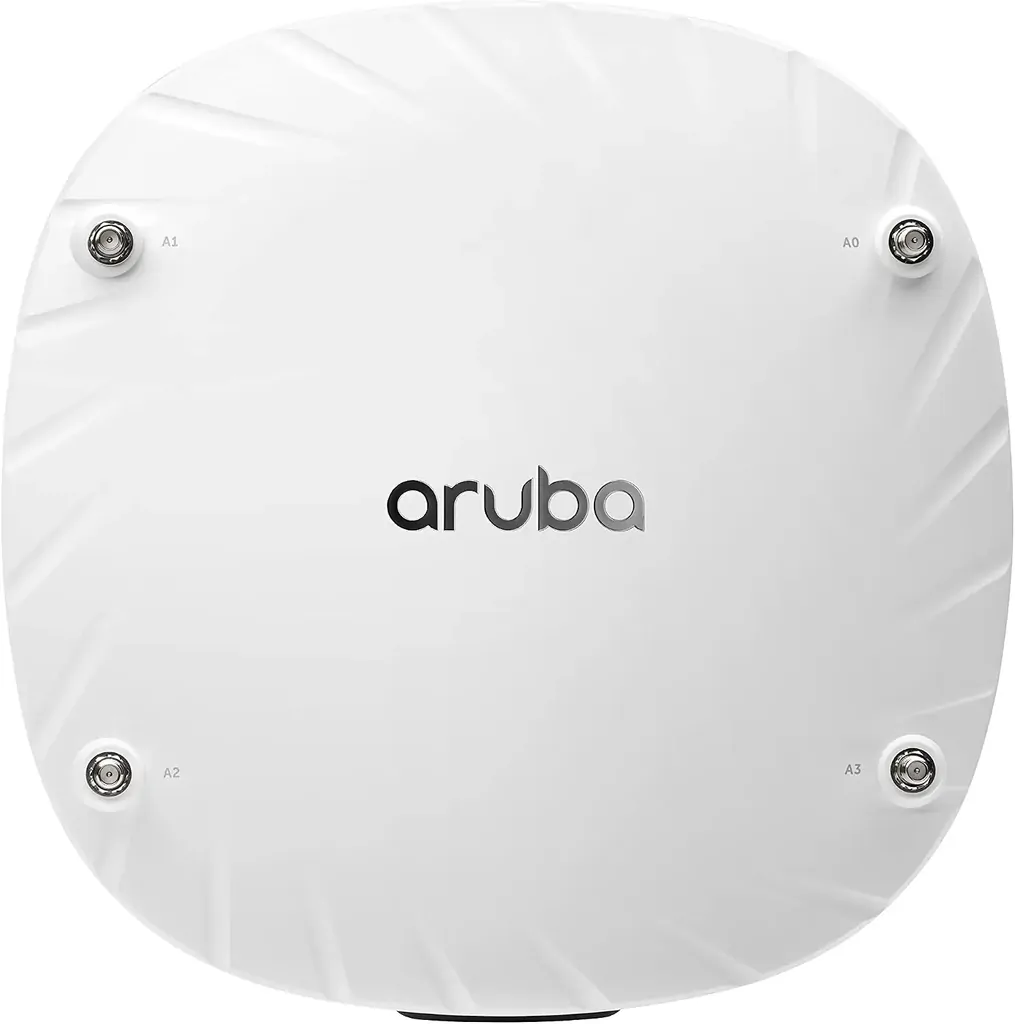

The HPE Aruba Networking 530 Series Campus Access Points provide Wi-Fi 6 connectivity for high-density deployments such as larger office spaces, training and meeting facilities, and hospitals. Providing up to 2.97 Gbps combined aggregate data rate, this series is built on Wi-Fi 6 standards (IEEE 802.11ax) and includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.

The 530 series can be deployed using zero touch provisioning (ZTP) without on‑site technical expertise, for ease of implementation in branch offices and for remote work. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution.

(APIN0534)

Deployment Indoor
Wi-Fi generation Wi-Fi 6 (802.11ax)
Wi-Fi radios Dual 4x4
Radio configuration options 2.4 GHz and 5 GHz
Max bandwidths and peak data rate per band 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps
Wi-Fi antenna Four RP-SMA connectors for external dual-band antennas.
Ultra tri-band (UTB) filtering No
IoT support IEEE 802.15.4/Zigbee or Bluetooth 5.0, USB 2.0 Type A
Integrated sensor No
Location services 802.11 FTM support
Cellular support USB LTE modem (sold separately)
Wired network interface 2 x 5GbE
MACsec support No
Ports E0, E1: Ethernet port (RJ-45)
Serial console interface (proprietary, micro-B USB physical jack)
USB 2.0 host interface (Type A connector)
Kensington security slot
Power sources DC power; PoE-PD
AP operating system support HPE Aruba Networking Wireless Operating System 8.5.0.0*
HPE Aruba Networking Instant OS 8.5.0.0*
HPE Aruba Networking Wireless Operating System 10.0.0.0 or later.
Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later.
AP management On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Certifications UL2043 plenum rating
Wi‑Fi Alliance®:
Wi-Fi CERTIFIED® a, b, g, n, ac
Wi-Fi CERTIFIED 6 (ax)
WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, Wi-Fi Agile Multiband
Wi-Fi CERTIFIED Location
Bluetooth Special Interest Group (SIG)
Regulatory FCC/ISED
CE marked
Radio Equipment Directive (RED) Directive 2014/53/EU
Electromagnetic compatibility (EMC) Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 62368-1
EN 60601-1-1, EN60601-1-2
Railway certs (AP-535 Only):
EN 50155:2017—Railway applications
EN 50121-1:2017—Railway EMC
EN 50121-3-2—Railway EMC
EN 50121-4:2016—Railway immunity
IEC 61373 ed2:2008—Railway shock and vibration.
For more country-specific regulatory information and approvals, contact your HPE representative.
SKU APIN0534
Barcode # 190017232706
Brand Aruba
Brand Aruba
Type Access Point
Model APIN0534
Shipping Cubic 0.017794000m3
