Reinvent docking the small, sophisticated HP Thunderbolt Dock 120W G2 with Audio Module. It has network manageability, USB-C device connectivity, and audio.

Features

- Connect a single Thunderbolt 3 cable to your notebook2 to access a wired network, data, video, and charging with a dock that supports both HP and non-HP Thunderbolt notebooks.
- Reclaim your work area with this space-saving centerpiece that helps create a clean desk. Its elegant, black, rounded design with smooth accents changes everything you thought you knew about docks.
- Help IT easily secure and remotely manage a wide range of HP notebooks and the dock with advanced network manageability features built into the dock, including WoL and MAC Address Pass-Through in all power states and PXE Boot.
- See every color and detail of your projects with a superfast connection to dual external 4K displays as soon as you plug your notebook into the dock.
- Take calls without a headset with the included Audio Module that attaches vertically to the dock with no cabling.

(HP-TB-DockG2AudioMod-R)

Top components

LED and power button to power or wake host system

NOTE: Requires host notebook to support in its BIOS.

Front components

(1) USB-C port with data and power out (15 W)

(1) USB-C cable to connect to host system

Side components

(1) USB 3.0 port (powered)

(1) Combo audio jack

NOTE: HP Thunderbolt Dock Audio Module sold separately and required for audio.

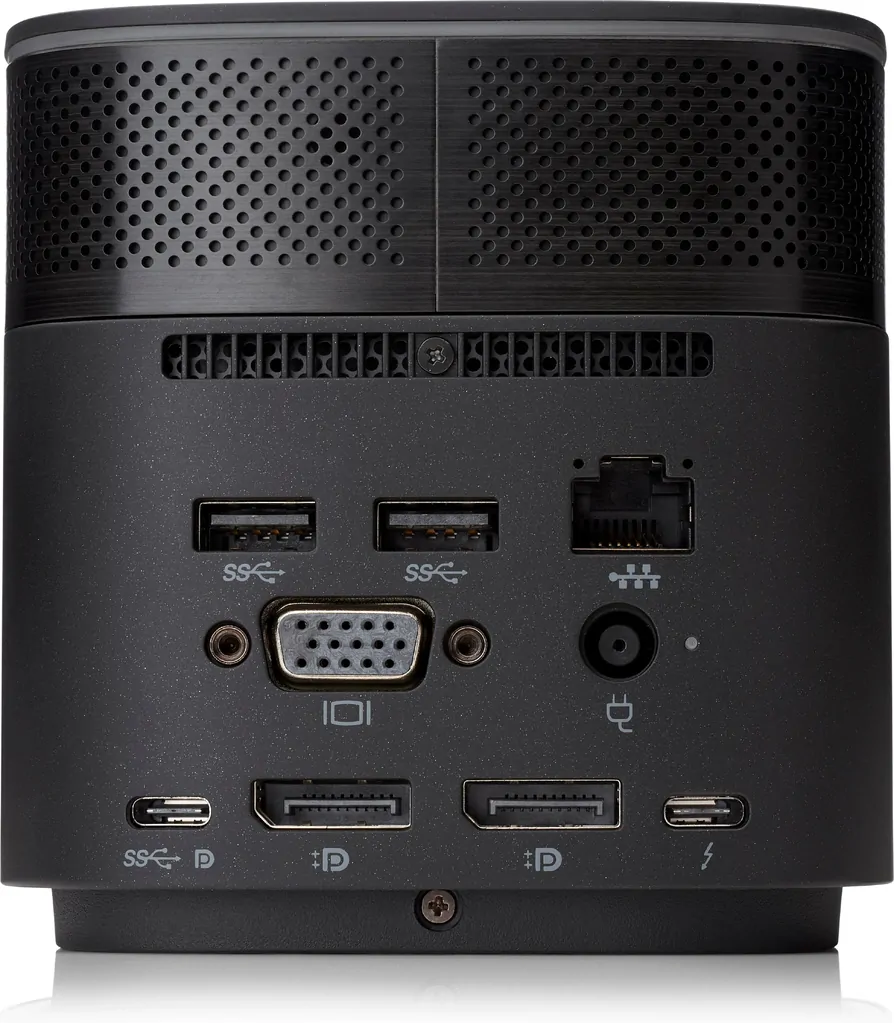

Back components

(1) Thunderbolt port

(1) USB-C DisplayPort data and power out port (15 W)

(2) DisplayPort ports

(1) VGA port

(2) USB 3.0 ports

(1) RJ45/Ethernet port

(1) AC adapter connector

Network manageability features

Preboot Execution Environment (PXE)

Wake-on-LAN

MAC Address Pass Through

WLAN-LAN Switching

External monitor support

Up to 4

NOTE: Displays sold separately.

Power Delivery (PD) profiles

5 V/5 A

9 V/5 A

12 V/5 A

15 V/5 A

20 V/5 A

Power to system

Up to 100 W

Operating voltage and current

19.7 VDC at 6.1 A/120 W

Temperature (operating)

0° to 35° C (32° to 95° F)

Relative humidity (operating)

10% to 90% (non-condensing)

Maximum altitude (operating)

0 to 5,000 m (49.2 to 16,404 ft) (unpressurized)

HP Thunderbolt Dock G2 and cables compatibility

HP Thunderbolt Dock 120W G2 (2UK37AA)
HP Thunderbolt Dock 120W G2 cable (3XB94AA)
HP Elite x2 1012 G1
HP Pro x2 612 G2
HP EliteBook Folio G1
HP EliteBook x360 1030 & 1020 G2
HP EliteBook 1040 G4
HP EliteBook 800, 700 G5
HP ProBook 600 G4, 400 G5 ZBook 14u/15u G5
HP Thunderbolt Dock 230W G2 (2UK38AA)
HP Thunderbolt Dock 230W G2 cable (3XB95AA)
HP ZBook 17, 15: G3, G4, G5 and Studio: G3, G4, G5
HP ZBook x2 G4
HP ZBook Studio x360 G5
HP ZBook 14u/15u G5
HP Zbook 15v G5
HP EliteBook 800, 700 G5, 1050 G1
HP Thunderbolt Dock G2 w/ combo cable (3TR87AA)
HP Thunderbolt Dock G2 combo cable (3XB96AA)

Compatible with all notebooks listed for 120W and 230W models

NOTE: Requires 230W AC adapter

SKU HP-TB-DockG2AudioMod-R
Barcode # 601527970489
Brand HP
Brand HP
Type Docking Station
Model Thunderbolt Dock 120W G2
Shipping Cubic 0.000125000m3
