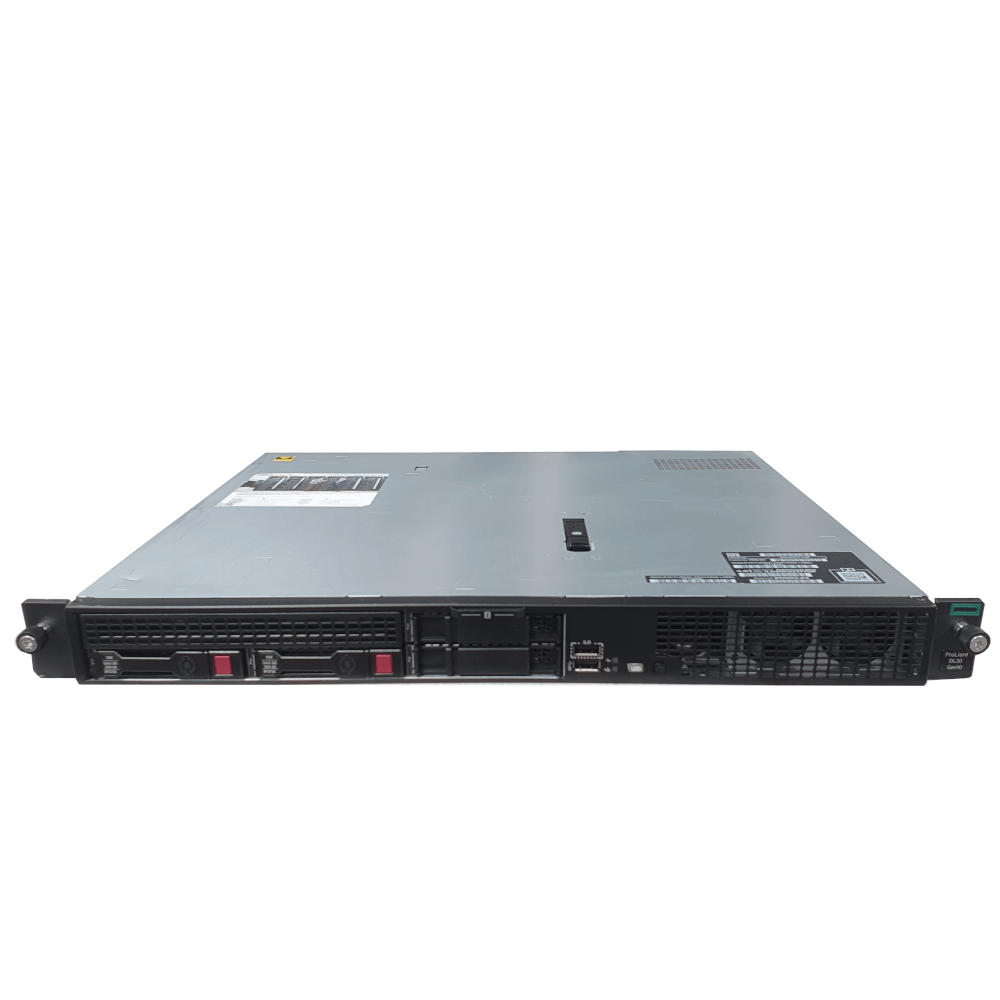

A compact, short-depth (15.05 inches) 1U single-socket rack server engineered for small-to-medium businesses (SMBs), edge environments, retail point-of-sale systems, and remote/branch offices. Despite its space-saving chassis, it delivers enterprise-grade security, redundancy options, and performance for essential IT infrastructure, web serving, and lightweight virtualization workloads.

Key Hardware & Management Capabilities

CPU Support
: Single-socket architecture (No dual CPU support). Supports one Intel® Xeon® E-2100 or E-2200 Series Processor (up to 8 cores), or budget-friendly Intel® Core™ i3 or Intel® Pentium® G Series options.

DIMM Slots: Features 4 DDR4 Unbuffered DIMM (UDIMM) slots (2 memory channels, 2 DIMMs per channel). Supports HPE Standard ECC Memory operating up to 2666 MT/s with a maximum memory capacity of up to 64 GB (4 x 16 GB UDIMMs).

Short Depth: Featuring a short-depth chassis of approximately 15.05 inches (38.2 cm), the DL20 Gen10 fits easily into shallow telecom racks, wall-mount cabinets, or space-constrained server rooms where standard 30-inch deep servers cannot.

Storage: Supports 4x Small Form Factor (2.5-inch) hot-plug SAS/SATA/SSD drives, accompanied by a dedicated onboard M.2 NVMe SSD slot for high-speed OS booting and an integrated HPE Smart Array S100i SATA RAID controller.

Remote Management: Built-in HPE Integrated Lights-Out 5 (iLO 5) management engine featuring HPE Silicon Root of Trust for firmware-level security. Includes agentless monitoring, Intelligent Provisioning, Active Health System, an optional dedicated iLO management port kit, and integration with HPE InfoSight for cloud-based AI analytics.

(HPDL20G10i391001-r)

Product

Power Cable

Brand HPE
Model ProLiant DL20 Gen10 *¹
Form Factor 1RU Rackmount (Short Depth)
Bays 4x 2.5"
Processor Intel Core i3-9100 Gen 9 3.60Ghz 4C
Memory 16GB (2x 8GB PC4-2666V E) HPE Smart *²
Storage 2x 300GB 10K SAS HDD
Raid Controller E208i-a
  No write-cache support
  RAID 0,1,5,10 and HBA pass-through
Remote Acess iLO5 Advanced (Share)
Networking Onboard 2-Port 1GB RJ45
PCIe Slots 1x Low Profile, 1x High Profile
Adapter Cards 4-Port 1GB RJ45 NIC
Power Supply 2x 500W
Rails None
Bezel None
Operating System None
Dimensions 43.2x 382.2x 434.6 mm (1.70x 15.05x 17.11 inches, without bezel)
Weight 7.9 Kg
Other Features
Notes *¹  Minor dent top lid

*²  Max CPU Memory Speed: 2400 MHz
     (2400T)
    Supports ECC-Unbuffered RAM Only

SKU HPDL20G10i391001-r
Barcode # 615678641129
Brand HPE
Brand HPE
Form Factor 1RU Rackmount (Short Depth)
Type Server
Series ProLiant
Storage Type SAS HDD
RAM Size 16 GB
Processor Speed 3.60 GHz
Model ProLiant DL20 Gen10
DIMMs Installed 2x 8GB PC4-2666V (Running at 2400 MHz)
Drive Bays 4x 2.5"
Remote Access Management iLO5 Advanced (Share)
RAID Controller E208i-a (RAID 0, 1, 5, 10 and HBA pass-through)
Power Supply 2x 500W
Network Connectivity Wired-Ethernet RJ-45
Processor Cores 4
UPC 615678641129
Processor Type Intel Core i3-9100 Gen 9
HDD Capacity 2x 300GB SAS
Memory Type DDR4 ECC-Unbuffered (HP Smart Memory)
Shipping Cubic 0.105020000m3
