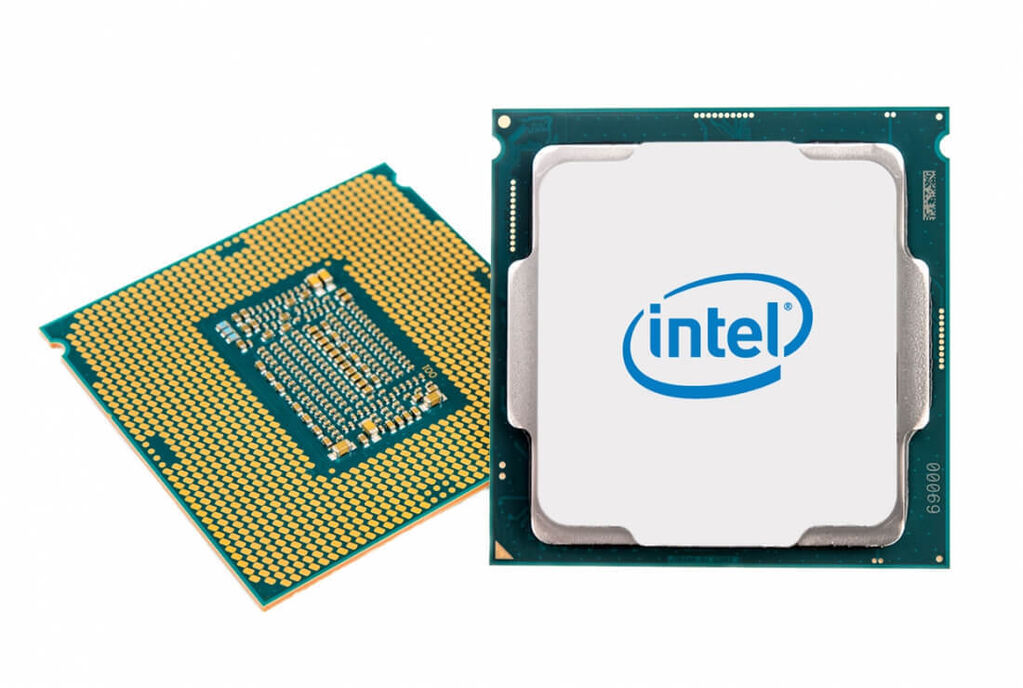

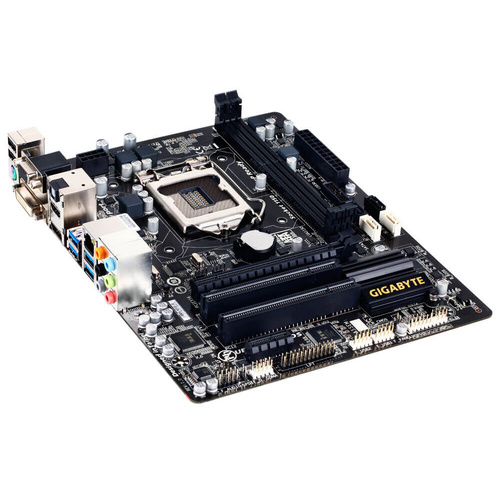

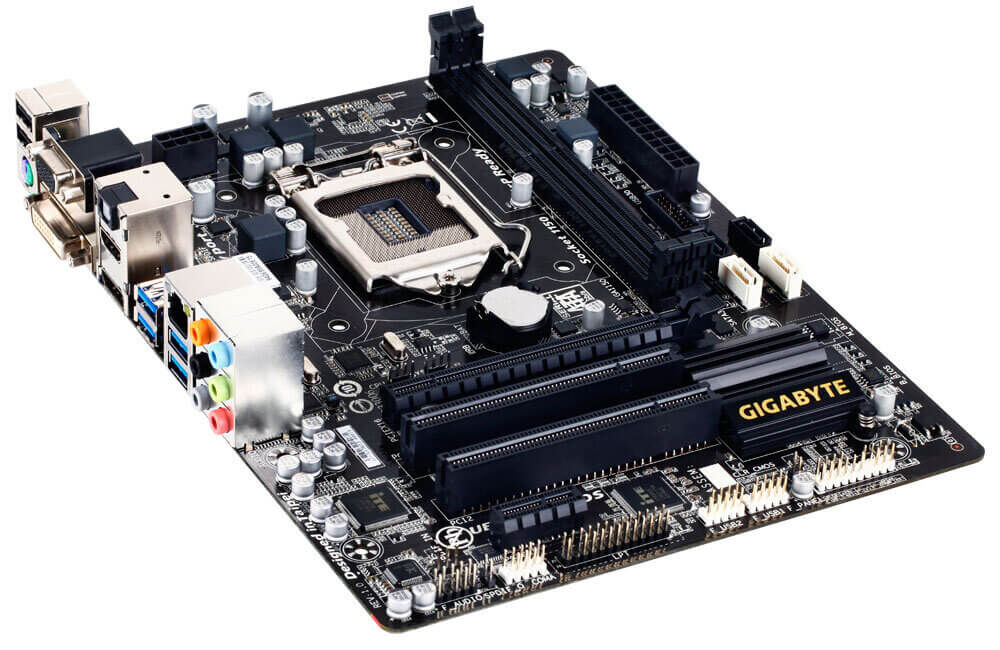

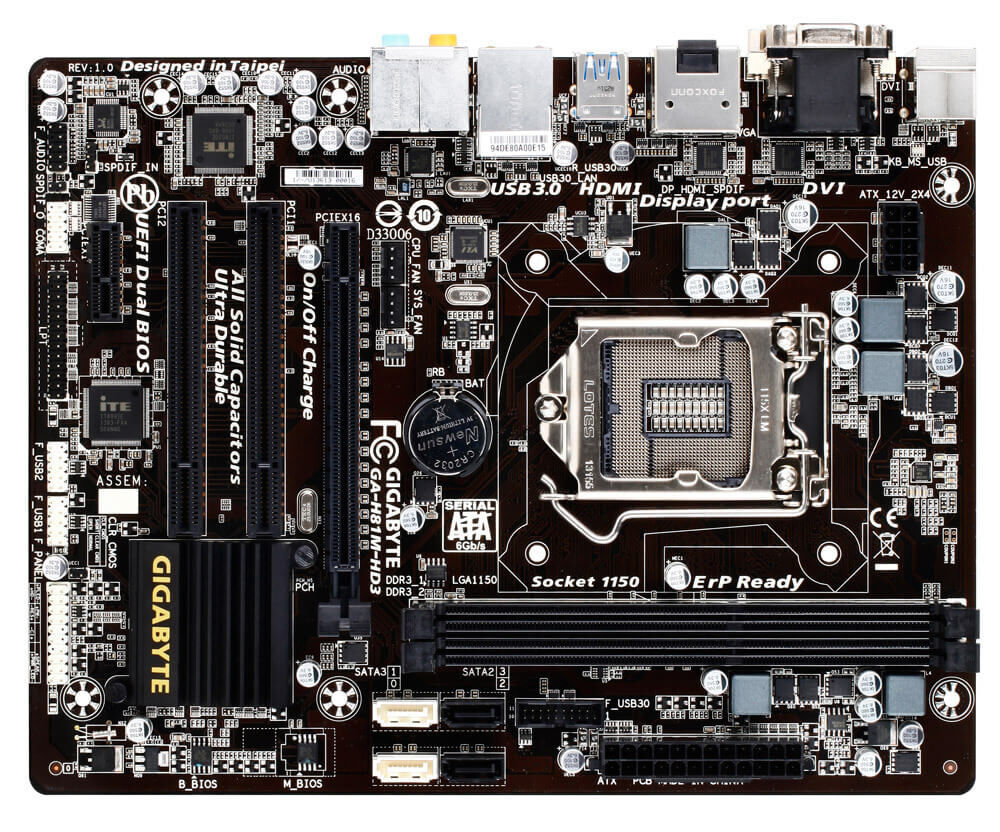

Includes Gigabyte GA-H81M-HD3 (rev. 1.0) Motherboard, Intel i3 4150 CPU, 16GB RAM, rear I/O panel.

  • Supports 4th Generation Intel® Core™ processors
  • GIGABYTE Ultra Durable™ 4 Plus Technology
  • GIGABYTE UEFI DualBIOS™
  • 6 USB 3.0 ports with GIGABYTE 3x USB power
  • GIGABYTE On/Off Charge™ for USB devices
  • LAN with high ESD Protection
  • DisplayPort, HDMI, DVI-D, D-SUB port on rear panel
  • All solid capacitors design

(GigabyteGA-H81M-HD3-i3-R)

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® H81 Express Chipset
Memory
  1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR3 1600/1333 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor - Intel® HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
  3. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    * Support for HDMI 1.4a version.
  4. 1 x DisplayPort, supporting a maximum resolution of 3840 x 2160 @ 60 Hz / 2560 x 1600 @ 60 Hz
    * Support for DisplayPort 1.2 version.
    * The DisplayPort does not support other types of display connections by adapter.
  5. Maximum shared memory of 1 GB
Audio
  1. Realtek® ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF In/Out
LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
  2. 1 x PCI Express x1 slot
    (The PCI Express slots conform to PCI Express 2.0 standard.)
  3. 2 x PCI slots
Storage Interface Chipset:
  1. 2 x SATA 6Gb/s connectors (SATA3 0/1)
  2. 2 x SATA 3Gb/s connectors (SATA2 2/3)
USB Chipset:
  1. 2 USB 3.0/2.0 ports (available through the internal USB header)
  2. 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
VIA® VL805 chip:
  1. 4 USB 3.0/2.0 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 2 x SATA 6Gb/s connectors
  4. 2 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 1 x system fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF In header
  10. 1 x S/PDIF Out header
  11. 1 x USB 3.0/2.0 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x serial port header
  14. 1 x parallel port header
  15. 1 x Clear CMOS jumper

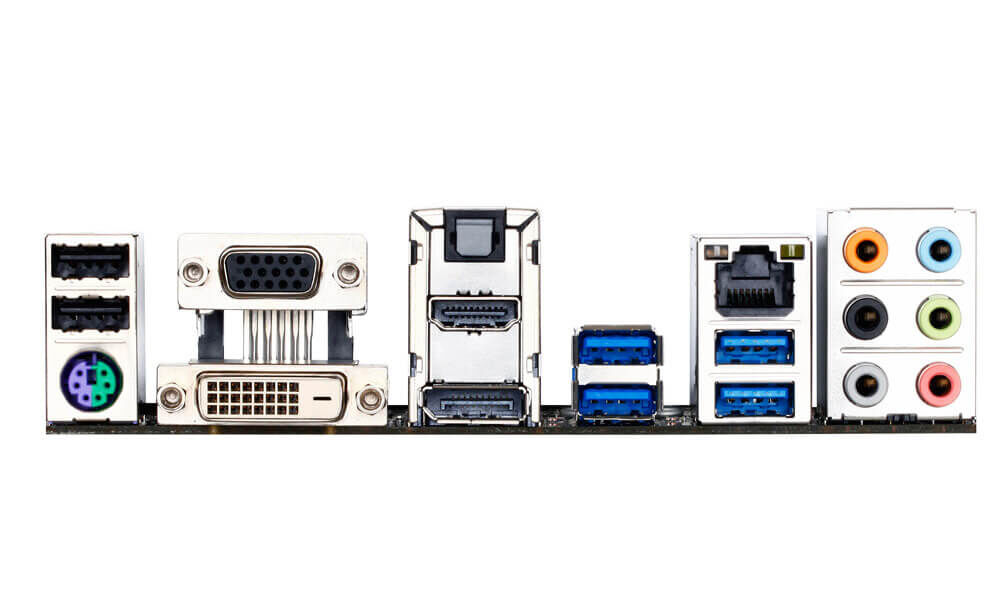

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 1 x DisplayPort
  6. 1 x optical S/PDIF Out connector
  7. 4 x USB 3.0/2.0 ports
  8. 2 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for Q-Flash
  2. Support for Xpress Install
  3. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    EasyTune
    EZ Setup
    USB Blocker
  4. Support for ON/OFF Charge
Operating System
  1. Support for Windows 10/8.1/8/7
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 19cm
SKU GigabyteGA-H81M-HD3-i3-R
Barcode # 634855061222
Brand Gigabyte
Brand Gigabyte
Processor Model i3 4150
Model GA-H81M-HD3
Processor Type Core i3 4th Gen.
Number of Cores 2
Socket Type LGA 1150
Clock Speed 3.50 GHz
Shipping Cubic 0.017794000m3
