The E-PRESTN modules contain three main PC boards, the STP board, the ECG board, and the NIBP board. Each of these boards contain a processor and software in the processor flash memory. The boards produce their own supply voltages from the Vmod 13.8-16 V line that is available via the module bus connector. One exception, the NIBP board provides +5V for the ECG and STP board non-isolated side components. The NIBP board provides also the synchronization signal for the ECG and STP board power supplies.

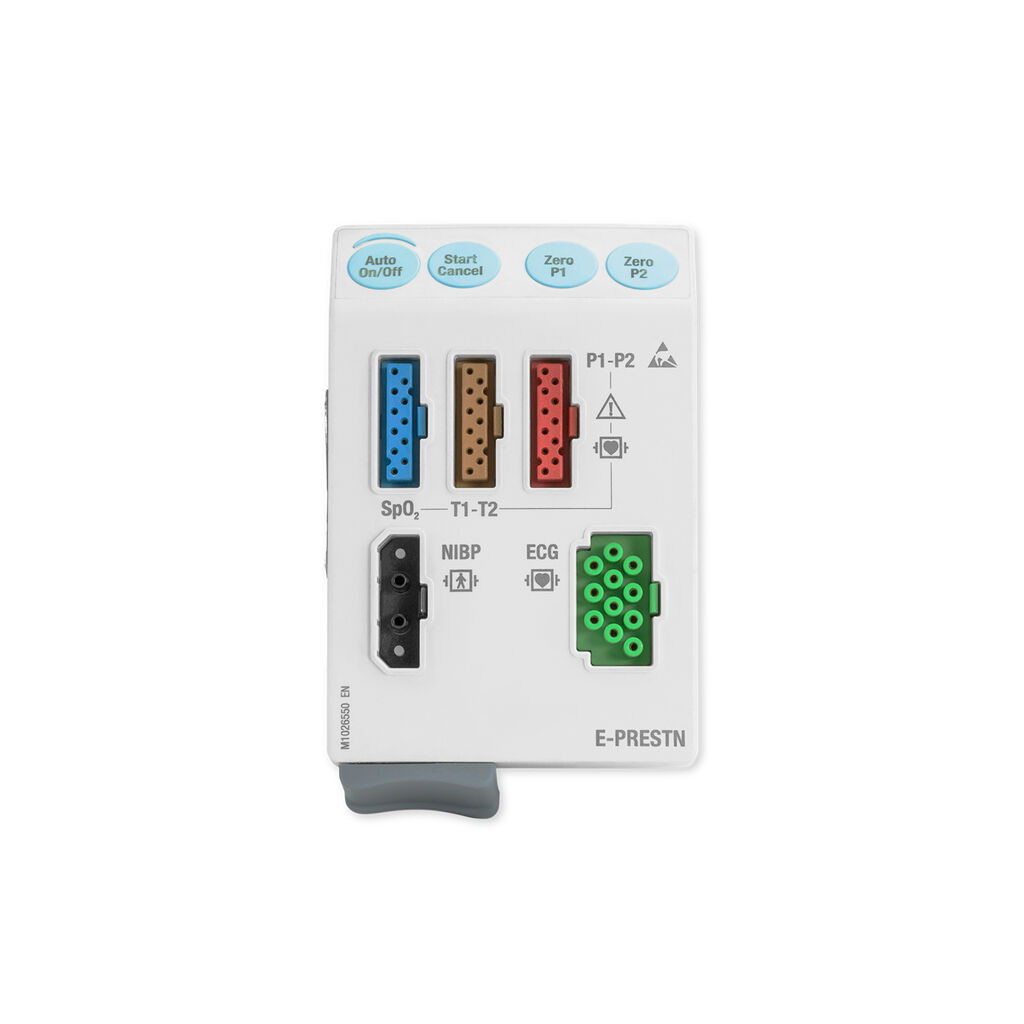

There are two input boards; the STP input board attached to the front panel of the module and the ECG input board in its own housing. The front panel has five connectors and four keys. There is one connector for two temperature measurements, one for two invasive blood pressure measurements, one for ECG, one for NIBP, and one for SpO2 measurement. The NIBP connector includes two plungers for NIBP hose identification. The keys are for NIBP Auto On/Off, NIBP Start/Cancel, P1 zero, and P2 zero.



(E-PRESTN-00-B)


SKU E-PRESTN-00-B
Barcode # 601527997363
Brand GE
Brand GE
Type Patient Monitor Module
Model E-PRESTN
Shipping Cubic 0.017794000m3
