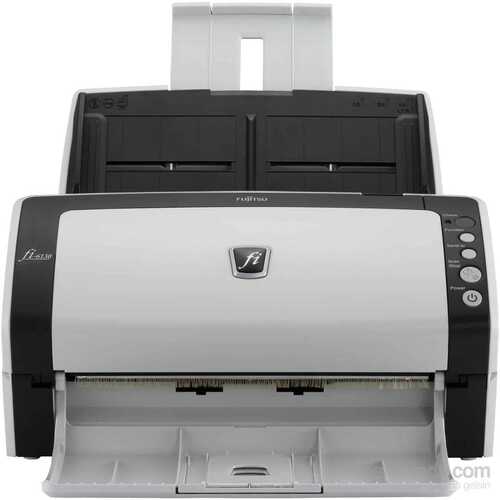

Includes fi-6130 Scanner only. Does NOT include USB cable, 24V power adapter. Requires driver software download from manufacturer.

As the fastest and most compact scanner in its class(*1), the A4 color duplex ADF fi-6130 is small enough to use at your desk. Seamless Microsoft® Office SharePoint® Server (MOSS) linkability. The result is even easier document management.

(*1) This class includes A4 ADF (automatic document feeder) and A4 ADF / flatbed tandem color image scanners capable of 10ppm to 25ppm scanning. Scanners in this class are priced between US$300 and US$2000. (This stood true as of March 31, 2008)

Feature

  • The best cost performer in its class
  • Loaded with "intelligent" functions for efficient operation
    - Intelligent multifeed function
    - "Auto-color recognition", "auto-size recognition" and "auto-deskew functionality"
  • Comes bundled with the "automatic job separation" function armed ScandAll PRO Ver1.5 image capture software
  • Imprinter supportability (fi-6130 / fi-6140 option)

(Fujitsu-fi-6130-NoPSU-R)

Product name FI-6130
Scanner Type ADF (Automatic Document Feeder)
Scanning modes Simplex / Duplex, Color / Grayscale / Monochrome
Image Sensor Type Color CCD (Charge-coupled device) x 2
Light Source White cold cathode discharge lamp
Scanning range Maximum: A4 portrait (210 x 297mm), legal (8.5 x 14in.)
(long document scanning: 216 x 863mm or 8.5 x 34in., or 210 x 3048mm or 8.4 x 121.92in.)
Minimum: A8 (52 x 74mm or 2 x 3in.)
ADF feedable paper weight
(Thickness)
41 to 210g/m2 (11 to 56.2lb) and only supports 127 to 210g/m2 (34 to 56.2lb) for A8 sheets.
Card feedability (ADF)*1 supports both portrait and landscape feedability*2 1.4mm thickness or less
Scanning speed
(A4 Portrait)*3
Color*4 Simplex: 30ppm (200dpi), Duplex: 60ipm (200dpi)
Simplex: 30ppm (300dpi), Duplex: 60ipm (300dpi)
Grayscale*4 Simplex: 40ppm (200dpi), Duplex: 80ipm (200dpi)
Simplex: 30ppm (300dpi), Duplex: 60ipm (300dpi)
Monochrome Simplex: 40ppm (200dpi), Duplex: 80ipm (200dpi)
Simplex: 30ppm (300dpi), Duplex: 60ipm (300dpi)
Paper chute capacity*5 50 sheets (A4: 80g/m2 or 20lb) (Active loadable ADF)
Background colors White / Black (Selectable)
Optical resolution 600dpi
Output resolution*6 Color (24bit) 50 to 600dpi (adjustable by 1dpi increments), 1200 dpi*7
Grayscale (8bit)
Monochrome (1bit)
Output format Color: 24bit, 8bit/4bit
Grayscale: 8bit, 4bit
Monochrome: 1bit
AD converter 1024 levels (10bit)
Interface USB2.0 / USB1.1
Connector shape B type
Output mode (half-tone) Dither / Error diffusion
Voltage or voltage range AC 100 to 240V, +10% / -10%
Power requirement Operating: 38W or less (Sleep mode: less than 6.2W)
Operating environment Temperature: 5 to 35°C (42 to 95°F)
Relative humidity: 20 to 80% (Non-condensing)
Dimensions: Width x Depth x Height*8 301 x 160 x 158mm (11.8 x 6.4 x 6.2in.)
Installation space: 400 x 700 x 380mm (15.8 x 27.6 x 15.0in.)
Weight 4.2 kg (9.24lb)
Environmental compatibility*9 ENERGY STAR® and RoHS
Others Multi-feed detection Yes(Standard) ultrasonic multi-feed detection sensor
Long paper scanning*10 3048mm (120in.)

[Note]

  1. Supports ISO7810 embossed cards
  2. Capable of scanning up to 3 cards at a time. (Note: does not support multi-embossed card feedability.)
  3. Actual scanning speeds are affected by data transmission and software processing times.
  4. JPEG compressed figures.
  5. Maximum capacity varies, depending upon paper weight.
  6. Maximum output resolutions may vary, depending upon the size of the area being scanned and whether the scanner is scanning in simplex or duplex.
  7. Scanning limitations brought about by scanning mode, document size and available memory may occur when scanning at high resolutions (600dpi or higher).
  8. Excluding the ADF paper chute and stacker
  9. PFU Limited, a Fujitsu company, has determined that this product meets RoHS requirements (2005/95/EC)
  10. Capable of scanning documents that exceed A4 sheets in length. However, the scanning of documents that exceed 863mm (34 inches) in length will be limited to using TWAIN at 200dpi or less.
SKU Fujitsu-fi-6130-NoPSU-R
Barcode # 676821258250
Brand Fujitsu
Brand Fujitsu
Type Sheetfed Scanner
Model fi-6130
Shipping Cubic 0.017794000m3
