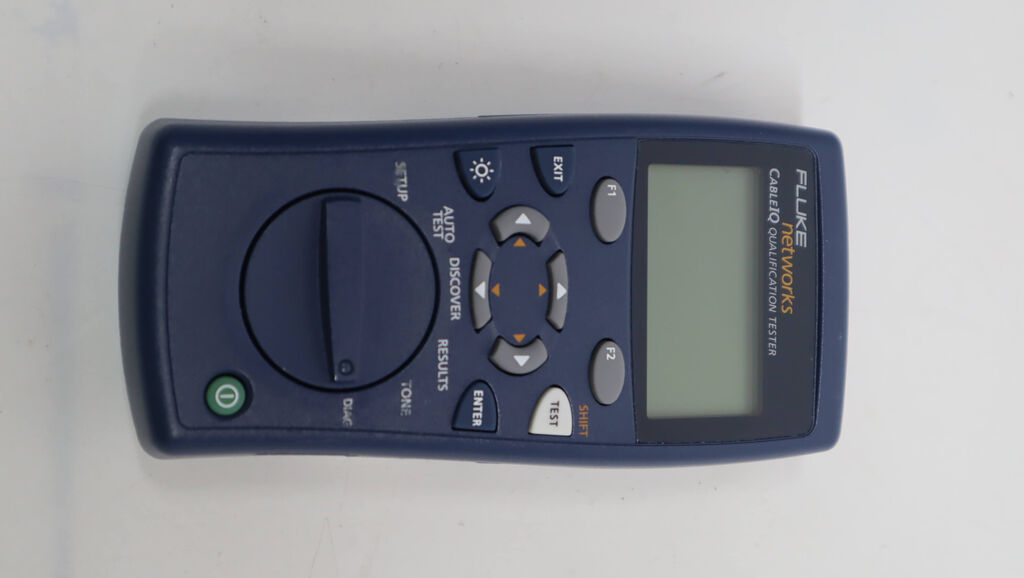

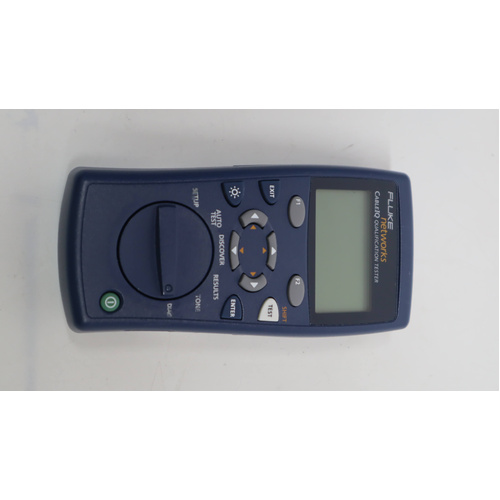

Fluke Networks CableIQ™ Qualification Tester

CableIQ finds common cable faults and data rate. Cables often fail in harsh industrial environments where cables are exposed to vibration, extreme flexing, moisture, expansion and contraction from temperature change. Failures result in costly production downtime so it’s important to quickly identify where the cable is broken so it can be replaced or repaired. CableIQ checks continuity on all wires displays results graphically so you can see opens, shorts, and cross wires and reports the distance to an open connection within the cable. It also checks if the cable can support data rates.


Troubleshoot and qualify Ethernet network cabling speed

  • Advanced troubleshooting diagnostics; insertion loss, cross talk, noise issues
  • Core troubleshooting features; length, distance to fault, graphical wire mapping, opens, shorts, power over Ethernet (POE) detection
  • Tests all copper cabling media: twisted-pair, coax, and audio

(Fluke-CIQ100)

Cable types supported UTP, STP, FTP, SSTP, RG6, RG59, audio and security
Qualification autotests 1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax
Supported tests Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection.
Wiremap Can detect single wire faults and supports MultiMap mode with up to seven remote office identifiers. Draws proportional wire length to breaks. Detects split pairs.
Find fault Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well as distributed sources in the cabling if they are sufficient to disqualify the application
Results storage Up to 250 qualification test results
Power Battery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries
Battery life 20 hours of typical use, without backlight
Other battery types supported 4AA photo lithium, NIHM, NICAD
Dimensions and weight 7in x 3.5in x 1.75in (17.8cm x 8.9cm x 4.5cm) 1.2 lb (0.55 kg)
SKU Fluke-CIQ100
Barcode # 601527573475
Brand Fluke
Brand Fluke
Type Ethernet Tester
Model CableIQ
Shipping Cubic 0.017794000m3
