The USB Extender Plus Series extends and switches USB signals from peripheral devices to a host computer up to 1,980 feet (600m) through a Gigabit Ethernet network or up to 330 feet (100m) point-to-point over one CATx cable. It supports USB 2.0 through 1.0 devices with data rates up to 480 Mbps and it is compatible with USB 3.0 devices that can operate at USB 2.0 data rates. The transmitter includes USB peripheral emulation to enable trouble-free booting of a host computer that is not connected to a keyboard or mouse. The receiver features a built‑in, active four‑port hub. The controller provides simple setup and control for creating a distributed USB matrix switching system over an Ethernet network. The USB Extender Plus Series supports USB peripherals such as keyboards, mice, mass storage devices, and webcams in pro AV environments.

(USB-Plus-Matrix-R)

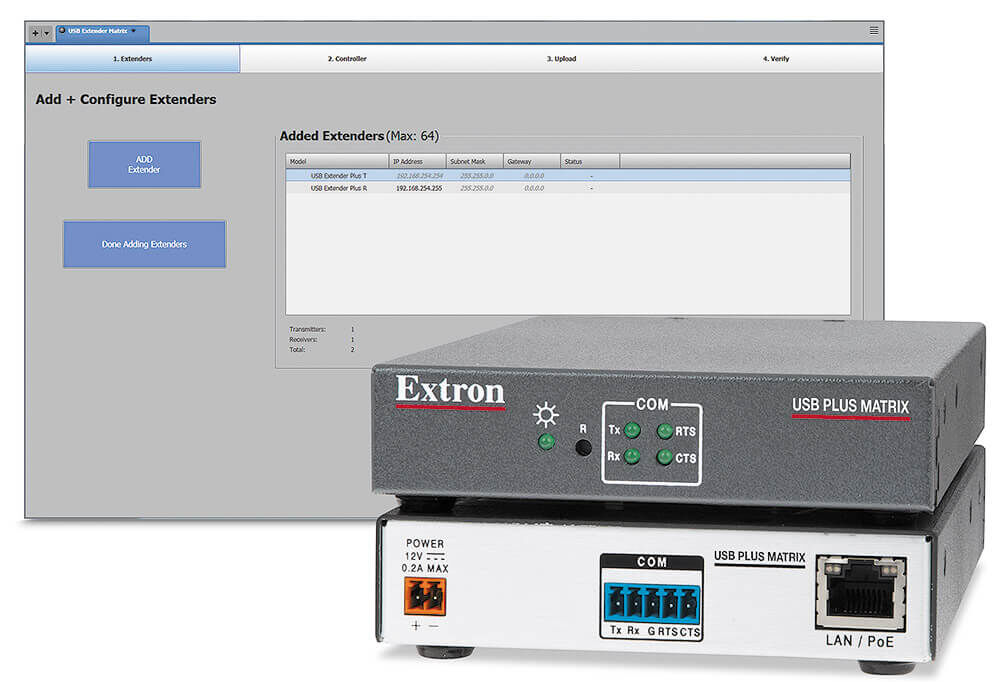

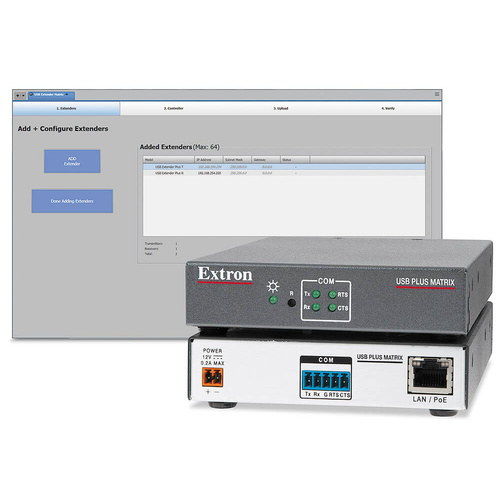

USB Plus Matrix Controller
   Memory
      SDRAM  512 MB
      Flash  512 MB
   Ethernet control
      Network interface controllers (NICs)  1
      Connectors  1 female RJ-45 connector
      Data rate  10/100/1000Base-T, half/full duplex with autodetect
      Protocols  DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
      Default settings  Link speed and duplex level = autodetected
IP address = 192.168.254.250
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off
DNS: 127.0.0.1
   Serial control
      Quantity/type  1 bidirectional RS-232
      Connectors  (1) 3.5 mm captive screw connector, 5 pole
      Baud rate and protocol  300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;
no parity (default), even, or odd parity

General — USB Plus Matrix Controller
   Power supply  External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 watts
   Power input requirements  12 VDC, 1 A, 12 watts, max.
Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)
   Power consumption
      Device  1.5 watts, 12 VDC
      Device and power supply  2.0 watts, 100-240 VAC, 50-60 Hz
   Ambient temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Cooling  Convection, no vents
   Thermal dissipation
      Device  5.2 BTU/hr
      Device and power supply  6.8 BTU/hr
   Mounting
      Rack mount  Yes, with optional 1U rack shelf or back of the rack mounting kit
      Furniture mount  Yes, with optional bracket kit
   Enclosure type   Metal
   Enclosure dimensions  1.0" H x 4.3" W x 6.0" D (1U high, quarter rack wide)
(25 mm H x 109 mm W x 152 mm D)
(Depth excludes connectors.)
   Product weight  0.6 lbs (0.3 kg)
   Regulatory compliance  CE, c-UL, UL, C-tick, FCC Class A, ICES RoHS, WEEE
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
SKU USB-Plus-Matrix-R
Barcode # 615678748309
Brand Extron
Brand Extron
Type USB Matrix Controller
Model USB Plus Matrix Controller
Shipping Cubic 0.017794000m3
