Tested to power on, assign/switch Input/Output. Includes DXP 88 HDMI, power cable.

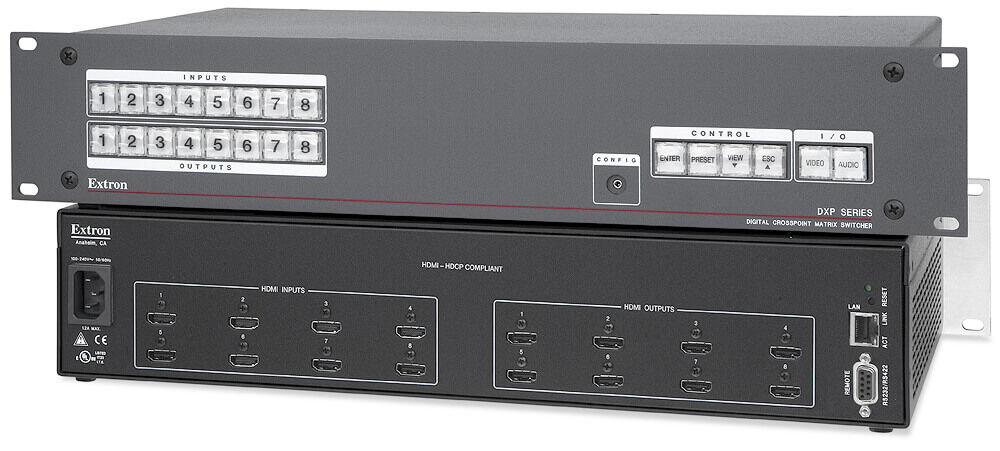

The Extron DXP HDMI Series are high performance, digital matrix switchers for HDMI signals. They are HDCP compliant, and support resolutions up to 1920x1200 and HDTV 1080p/60. The matrix switchers support HDMI specification features including data rates up to 6.75 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats. The DXP HDMI Series incorporates intelligent technologies that help integrators ensure reliable system operation and compatibility between digital devices, including Key Minder®, SpeedSwitch® Technology HDCP Visual Confirmation, EDID Minder®, and Automatic Input Cable Equalization and Output Reclocking. Available in I/O sizes from 4x4 to 8x8, the DXP HDMI Series is ideal for applications that require reliable, high performance routing of HDMI and DVI signals between multiple sources and displays.

Key Features

  • Supports computer video up to 1920x1200, including HDTV 1080p/60
  • Supported HDMI specification features include data rates up to 6.75 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
  • SpeedSwitch® Technology provides exceptional switching speed for HDCP-encrypted content
  • Key Minder® continuously verifies HDCP compliance for quick, reliable switching
  • EDID Minder® automatically manages EDID communication between connected devices
  • Includes LockIt® HDMI cable lacing brackets

(DXP-88-HDMI-R)



 NOTE     *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.

Video
   Routing
      DXP 44 HDMI  4 x 4 matrix
      DXP 48 HDMI  4 x 8 matrix
      DXP 84 HDMI  8 x 4 matrix
      DXP 88 HDMI  8 x 8 matrix
   Signal Type  TMDS digital RGB HDMI and single-link DVI digital video signals are supported
      Digital video  RGB digital video (DVI and HDMI standards) or Y, Cr, Cb digital component video (HDMI), actively buffered (supports all single-link DVI and HDMI [if using an optional adapter] standards from 640x480 @ 60 Hz to 1600x1200 @ 60 Hz computer video and HDTV 480p, 720p, 1080i, 1080p)
       NOTE

The DXP HDMI Series switchers support TMDS data rates up to 6.75 Gbps, Deep Color up to 12-bit, 3D**, HD lossless audio, and other HDMI 1.3 specification features.

**Extron strongly recommends compatibility testing while designing and before installing any 3D system. There are several unique 3D formats in use by source devices and display manufacturers. The level of 3D product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Application Engineer for more information.

      Digital audio  Supports HDMI audio transmitted through the RGB and Y, Cr, Cb lines, actively buffered.
      Consumer Electronics Control (CEC)  Not supported
      EDID and DDC  Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered.
      HDCP  Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards
      HPD  Supports hot plug detection (HPD) of display as a pass-through signal.
   Gain  Unity
   Resolution range  Up to 1080p (HDTV) or 1920x1200 (the highest resolution of the single-link DVI standard) @ 60 Hz
   Maximum data rate  6.75 Gbps (2.25 Gbps per color)
   Maximum pixel clock  165 MHz
   Standards  DVI 1.0, HDMI 1.3
   Switching speed  200 ns, max.

Video input
   Number/signal type  4 or 8 (depending on model) digital RGB (TMDS) HDMI (or single-link DVI-D*)
   Connectors  4 or 8 female HDMI type A (digital only)
   Nominal level
      Digital video  1.2 Vp-p
      DDC (Display Data Channel)  5.0 Vp-p (TTL)
   Minimum/maximum level  0.5 V to 1.0 Vp-p with no offset
   Impedance  100 ohms
   Return loss  <-15 dB @ 1 MHz to 1.5 GHz
   TDR rise time (10%-90%)  75 ps
   Equalization  Automatic
   Input cable length   >100' (30 m) at 1920x1200 @ 48, 50, or 60 Hz; or 1080p; 8 bit color
    NOTE     The transmission distance varies depending on the signal resolution and on the type of cable, graphic card, and display used in the system.

Video output
   Number/signal type  4 or 8 (depending on model) digital RGB
   Connectors  4 or 8 female HDMI type A
   Nominal level  1.2 Vp-p
   Minimum/maximum level(s)  0.5 V to 1.0 Vp-p with no offset (follows input)
   Impedance  100 ohms
   Return loss  <-15 dB @ 1 MHz to 1.5 GHz
   DC offset  ±500 mV maximum with input at 0 offset
   Rise and fall time (20-80%)  0.6 ns
   Re-clocking  Automatic
   Peripheral device power  250 mA per output

Communication
   Serial control port  (1) RS-232, 9-pin female D connector
(1) RS-232, front panel 2.5 mm mini stereo jack
   Baud rate and protocol  9600 to 115200 baud, 9600 baud (default), 8 data bits, 1 stop bit, no parity
   Serial control pin configurations
      9-pin D connector  2 = Tx, 3 = Rx, 5 = GND
      Mini stereo jack  Tip = Tx, ring = Rx, sleeve = GND
   Ethernet control port  (1) RJ-45 female connector
   Ethernet data rate  10/100Base-T, half/full duplex with autodetect
   Ethernet protocol  ARP, ICMP (ping), IP, TCP, DHCP, HTTP, Telnet
   Default settings  Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Gateway = 0.0.0.0
DHCP = off
   Program control  Extron control/configuration program for Windows®
Extron Simple Instruction Set (SIS)
Microsoft® Internet Explorer® ver. 6 or higher, Telnet

General
   Power supply  Internal
Input: 100-240 VAC, 50-60 Hz
   Power consumption  48 watts, fully loaded 8 x 8 unit
   Ambient temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Cooling  Fan, air flows right to left (as viewed from front)
   Thermal dissipation, full load  164 BTU/hr
   Mounting
      Rack mount  Yes, 2U high
   Enclosure type   Metal
   Enclosure dimensions  3.5" H x 17.5" W x 12.0" D (2U high, full rack wide)
(8.9 cm H x 44.4 cm W x 30.5 cm D)
(Depth excludes connectors. Width excludes integrated rack ears.)
   Product weight   10.0 lbs (4.5 kg)
   Shipping weight   15 lbs (7 kg)
   Vibration   ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety  BSMI, CE, c-UL, EAC, UL
      Compliances  CE, C-tick, FCC Class A, ICES, KCC, VCCI
   Product warranty  3 years parts and labor
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
SKU DXP-88-HDMI-R
Barcode # 601527575295
Brand Extron
Brand Extron
Type HDMI Matrix Switcher
Model DXP 88 HDMI
Shipping Cubic 0.013824000m3
