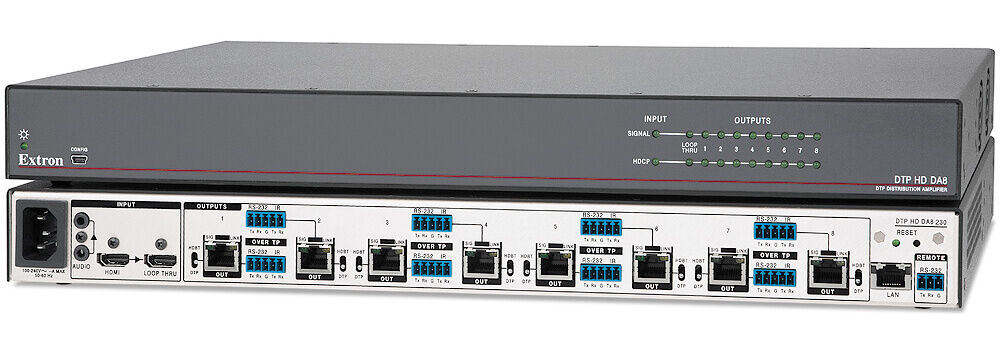

The Extron DTP HD DA4 4K 230 and DTP HD DA8 4K 230 are distribution amplifiers that provide one HDMI input with an HDMI loop-out, and either four or eight DTP® outputs. Each twisted pair output sends HDMI, audio, and control up to 230 feet (70 meters) over shielded CATx cable to Extron DTP‑enabled products. The DTP HD DA 4K 230 accepts analog stereo audio signals for simultaneous transmission over the same shielded CATx cable. It supports video signals at resolutions up to 4K. The DTP HD DA 4K 230 offers bidirectional RS‑232 and IR pass-through at each DTP output, plus system level RS‑232 control of AV devices via Ethernet insertion. It features remote powering of DTP receivers, EDID Minder®, Key Minder®, and selectable output muting.

Key Features

  • Distributes HDMI plus control and analog audio up to 230 feet (70 meters) over shielded CATx cable
  • HDMI input loop-out
  • Supports computer and video resolutions up to 4K
  • Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
  • Compatible with CATx shielded twisted pair cable
  • DTP outputs are compatible with HDBaseT-enabled devices

(DTP-HD-DA8-4K-230-R)

Video
   Maximum data rate  10.2 Gbps (3.4 Gbps per color)
   Maximum pixel clock  300 MHz
   Resolution range  Up to 2560x1600* @ 60 Hz or 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz,
4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
(*Reduced blanking)
   Color bit depth  8, 10, or 12 bits — subject to the maximum data rate limit
   Formats  RGB and YCbCr digital video
   Standards  DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E

Video input
    NOTE     *Appropriate HDMI to DVI-D cables or adapters are required for HDMI signal input/output.
   Number/signal type  1 single link HDMI (or DVI-D*)
   Connectors  1 female HDMI type A

Video output
   Number/signal type  1 single link HDMI (Local Output)
      DTP HD DA4 4K 230  4 DTP 230
      DTP HD DA8 4K 230  8 DTP 230

Interconnection between transmitter and receivers
   Connectors
      DTP HD DA4 4K 230  4 female RJ-45
      DTP HD DA8 4K 230  8 female RJ-45
   Termination standards  TIA/EIA T568B
   Signal transmission distance
      DTP HD DA4/DA8 4K 230
         1080p @ 60 Hz  Up to 230' (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
         2560x1600 @ 60 Hz  Up to 130' (40 m) using STP cable or XTP DTP 24 cable
         4K/UHD @ 30 and 60 Hz  Up to 130' (40 m) using STP cable or XTP DTP 24 cable
   Cable requirements   Solid conductor, 24 AWG or better
   Cable recommendations   400 MHz bandwidth STP cable
    NOTE     Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance.
    NOTE

Output mode signaling:

DTP:            HDMI with embedded audio, analog audio, RS-232 and IR, and remote power
HDBaseT:    HDMI with embedded audio plus RS-232 and IR

Audio (analog audio)
   Gain  Unbalanced output (from receiver): 0 dB; balanced output (from receiver): +6 dB
   Frequency response  20 Hz to 20 kHz, ±1 dB
   THD + Noise  0.03% @ 1 kHz; 0.3% @ 20 kHz at nominal level
   S/N  >90 dB at maximum input (unweighted)
   Stereo channel separation  >80 dB
   Digital sampling rate  48 kHz
   Bit Depth  16 bit

Audio input (analog audio)
   Number/signal type  1 PC level stereo, unbalanced
    NOTE     Analog audio is not embedded onto the digital video signal. Analog audio and digital embedded audio are transmitted simultaneously and output on the receiver on two different connectors.
   Connectors  (1) 3.5 mm stereo jack, 2 channel; tip (L); ring (R); sleeve (ground)
   Impedance  >10k ohms, DC coupled
   Nominal level  -10 dBV (316 mVrms)
   Maximum level  +7 dBV, unbalanced
    NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Audio output
   Number/signal type
      Local output  1 PC level stereo, unbalanced
      DTP output  4 or 8 embedded digital audio on DTP signal
      Embedded digital audio source formats  2-ch PCM, PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1,
Dolby Digital EX, DTS Digital Surround 5.1, DTS-ES Matrix 6.1
DTS-ES Discrete 6.1
      Connectors
         Local  (1) 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground)
         DTP  4 or 8 female RJ-45
      Impedance  >50 ohms, DC coupled
      Nominal level  -10 dBV (316 mVrms)
      Maximum level  +6.5 dBV (unbalanced)

Control/remote
   Serial control port  RS-232, 3.5 mm, 3 pole captive screw connector
   Baud rate and protocol  9600 baud rate, 8 data bits, 1 stop bit, non-parity
   Serial control pin configurations  Captive screw connectors: 1 = Tx, 2 = Rx, 3 = Gnd
   USB control ports  1 front panel female Mini USB-B
   USB standards  USB 2.0, low speed
   Ethernet data rate  10/100Base-T, half/full duplex, with autodetect
   Ethernet protocol  ARP, ICMP (ping), IP, TCP, DHCP, HTTP, Telnet, SMTP, SSH
   Program control  Extron's Simple Instruction Set (SIS™), Extron Product Configuration Software (PCS), Microsoft Edge, Telnet

Communications — external device (RS-232/IR over TP)
   Serial control port  RS-232 via (4) or (8) 3.5 mm, 5 pole captive screw connectors
(connectors are shared with IR control ports)
   Baud rate and protocol  300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity
   Serial control pin configuration  Captive screw connectors: 1 = Tx, 2 = Rx, 3 = Gnd
   IR pass-through control port  (4) or (8) 3.5 mm, 5 pole captive screw connectors (connectors are shared with RS-232 control ports)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz
   IR control pin configuration  3 = Gnd, 4 = IR Tx, 5 = IR Rx
    NOTE     Protocol is mirrored between the connected DTP 230 Rx or DTP 330 Rx endpoints and the "Over TP" ports on the DTP HD DA series. Signals from a control device pass into each "Over TP" port, are embedded with the DTP signal, and sent to the individual DTP 230 Rx or DTP 330 Rx endpoints for control of remote sink or source devices. The "Over TP" ports are simply pass-through connections to DTP endpoints. There is no RS-232 or IR insertion from any DA control port to the "Over TP" ports.

General
   Power supply  Internal
Input: 100-240 VAC, 50-60 Hz
   Power consumption
      DTP HD DA4 4K 230  45.6 watts
      DTP HD DA8 4K 230  78.7 watts
   Ambient temperature/humidity  Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +104°F (0 to +40°C) / 10% to 90%, noncondensing
   Cooling  Fans, air flows from right to left (when viewed from the front)
   Thermal dissipation
      DTP HD DA4 4K 230  85.5 BTU/hr
      DTP HD DA8 4K 230  125 BTU/hr
   Rack mount  Yes, with included rack ears
   Enclosure type   Metal
   Enclosure dimensions
      DTP HD DA4 4K 230  1.75" H x 17.5" W x 10.6" D (1U high, full rack wide)
(4.4 cm H x 44.4 cm W x 26.8 cm D, depth excludes connectors)
      DTP HD DA8 4K 230  1.75" H x 17.5" W x 10.6" D (1U high, full rack wide)
(4.4 cm H x 44.4 cm W x 26.8 cm D, depth excludes connectors)
   Product weight
      DTP HD DA4 4K 230  4.9 lbs (2.2 kg)
      DTP HD DA8 4K 230  5.0 lbs (2.3 kg)
   Vibration   ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety  CE, c-UL, UL
      EMI/EMC  CE**, C-tick, FCC Class A**, ICES, VCCI
      Environmental  Complies with the appropriate requirements of RoHS, WEEE
    NOTE     **CE and FCC testing is conducted with STP cable.
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
SKU DTP-HD-DA8-4K-230-R
Barcode # 601527625273
Brand Extron
Brand Extron
Type DTP Distribution Amplifier
Model DTP HD DA8 4K 230
Shipping Cubic 0.007440000m3
