Tested to power on. Includes DA6 RGBHV distribution amplifier, pwoer cable. Does NOT include rack mounts.

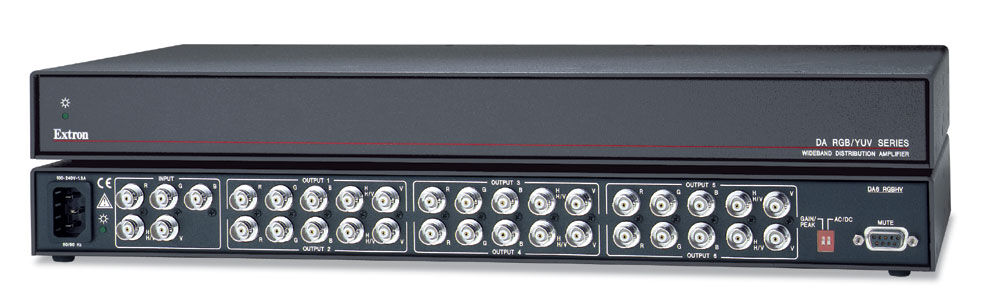

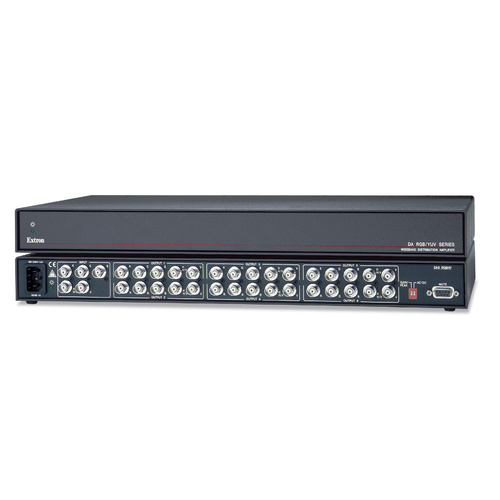

The Extron DA6 RGBHV is a six output, rack-mountable, analog distribution amplifier. It accepts and distributes RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, and composite video on female BNC connectors. In addition, the DA6 RGBHV provides DIP switches for adjusting RGB gain and peaking, as well as for selecting AC or DC coupling. A 9-pin contact closure connector allows for output muting controls when used with a control system.

With 350 MHz (-3 dB) video bandwidth, fully loaded, the DA6 RGBHV is perfect for maintaining signal integrity over long cable runs It includes an internal international power supply and is housed in a 1U, full rack width metal enclosure for mounting convenience.

Features

  • Input: One set of female BNC connectors
  • Output: Six sets of female BNC connectors
  • 350 MHz (-3 dB) RGB video bandwidth, fully loaded
  • Compatible with RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, and composite video signals
  • Selectable gain and peaking
  • AC or DC coupling per input
  • Output muting control via contact closure
  • 1U, rack-mountable, durable, metal enclosure
  • Internal Extron Everlast™ power supply — Provides worldwide power compatibility, with high‑demonstrated reliability and low power consumption for reduced operating cost

(DA6-RGBHV-R)

Video
   Gain  Unity (0 dB) or 1.1 dB (110%), switch-selectable
When input = 0.7 V, output = 0.7 V or 0.8 V, respectively.
   Peaking
      DA6 YUV A  0 dB
      All other models  0 dB or +6 dB at 100 MHz, switch-selectable
   Bandwidth  350 MHz (-3 dB), fully loaded
   Differential phase error  <1.0° at 5 MHz
   Differential gain error  <1.0% at 5 MHz

Video input
   Number/signal type  1 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video
   Connectors  5 female BNC
   Nominal level (at unity gain)  1.0 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB, for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
   Minimum/maximum levels  Analog: 0.3 V to 1.5 Vp-p with no offset at unity gain
   Impedance  75 ohms
   Horizontal frequency  15 kHz to 180 kHz
   Vertical frequency  15 Hz to 170 Hz
   Return loss  <-38 dB @ 5 MHz
   DC offset (max. allowable)  5.0 V (in AC coupling mode)
   Input coupling  AC/DC, switch-selectable

Video output
   Number/signal type  2, 4, or 6 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (follows input type)
   Connectors  (2, 4, or 6) x 5 female BNC
   Nominal level  1.0 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB, for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
   Minimum/maximum levels  0.3 Vp-p to 1.5 Vp-p (follows input)
   Impedance  75 ohms
   Return loss  <-44 dB @ 5 MHz
   DC offset  ±5 mV with input at 0 offset

Sync
   Input/output type  RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync
   Input level  Analog or TTL: 0.5 V to 5 Vp-p
   Output level  TTL: 5 Vp-p, unterminated
   Input impedance  510 ohms
   Output impedance  75 ohms
   Max. input voltage  5.0 Vp-p
   Max. propagation delay  35 ns
   Max. rise/fall time  4 ns
   Polarity  Positive or negative (follows input)

Control/remote
   Contact closure  1 female 9-pin D connector
   Contact closure pin configuration  Pin 1 = mute output #1, pin 2 = mute all outputs, pin 3 = reserved,
pin 4 = mute output #2, pin 5 = GND, pin 6 = mute output #3,
pin 7 = mute output #4, pin 8 = mute output #5, pin 9 = mute output #6

General
   Power  100 VAC to 240 VAC, 50-60 Hz, 10 watts, internal
   Ambient temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Cooling  Convection, no vents
   Mounting
      Rack mount
         DA2 RGBHV  Yes, with optional 1U rack shelf
         DA4/6 RGBHV  Yes, with mounting kit
      Furniture mount
         DA4/6 RGBHV  Yes, with mounting kit
   Enclosure type   Metal
   Enclosure dimensions
      DA2 RGBHV  1.7" H x 8.7" W x 9.4" D (1U high, half rack wide)
(4.3 cm H x 22.1 cm W x 23.9 cm D)
      DA4/6 RGBHV  1.75" H x 17.5" W x 8.5" D (1U high, full rack wide)
(4.4 cm H x 44.4 cm W x 21.6 cm D)
(Depth excludes connectors.)
   Product weight
      DA2 RGBHV  2.0 lbs (0.9 kg)
      DA4 RGBHV  3.7 lbs (1.7 kg)
      DA6 RGBHV  3.9 lbs (1.8 kg)
   Shipping weight
      DA2 RGBHV  4 lbs (2 kg)
      DA4/6 RGBHV  7 lbs (4 kg)
   Vibration   ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety  CE, c-UL, UL
      EMI/EMC  CE, C-tick, FCC Class A, ICES, VCCI
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
SKU DA6-RGBHV-R
Barcode # 601527863378
Brand Extron
Brand Extron
Type Distribution Amplifier
Model DA6 RGBHV
Shipping Cubic 0.005175000m3
