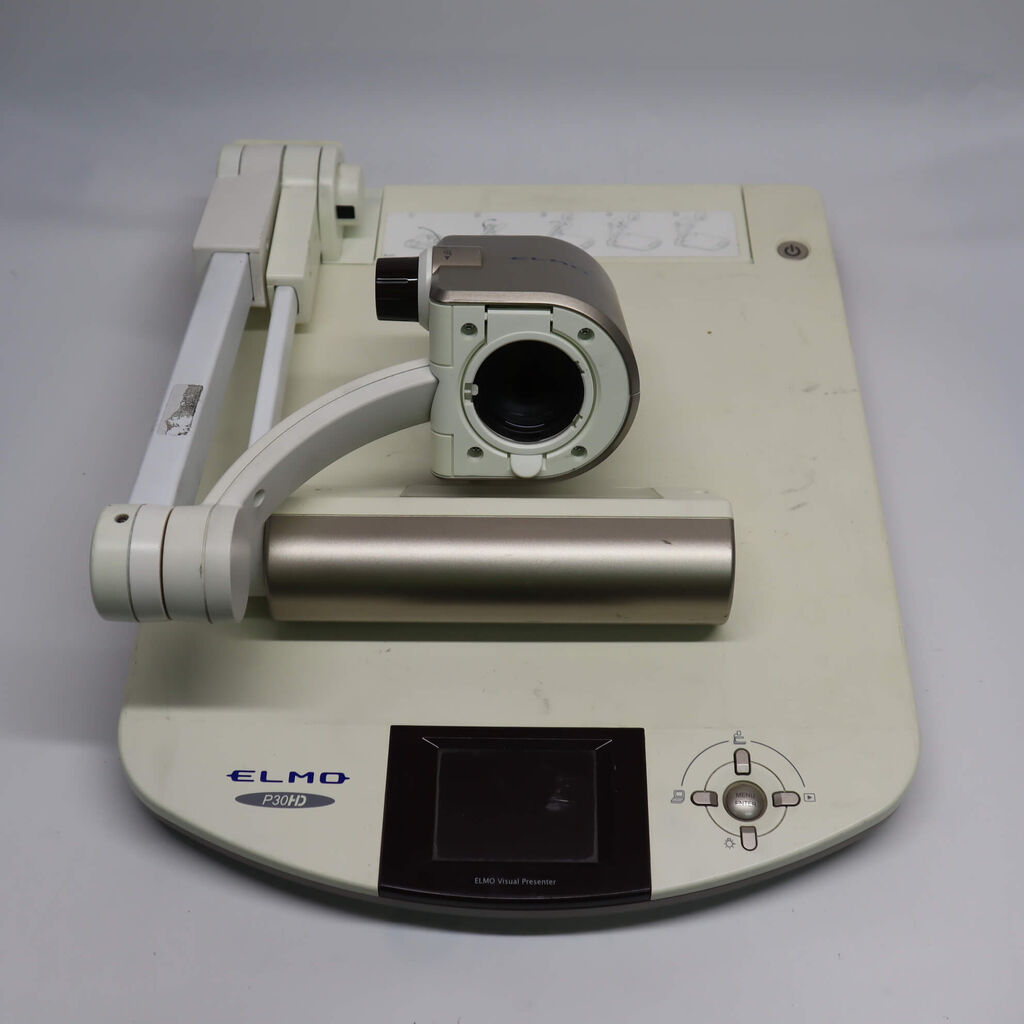

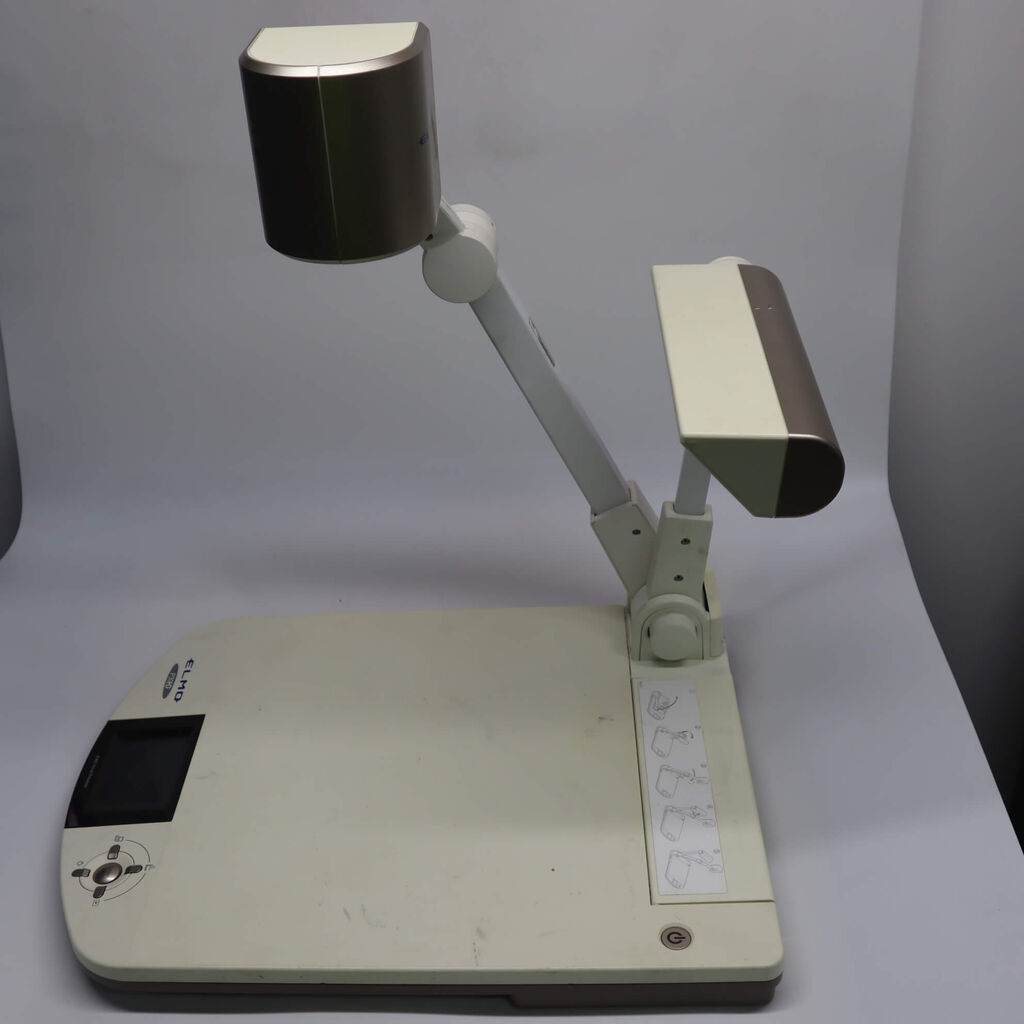

The Elmo P30HD Visual Presenter lets you capture high-quality video and audio and connect to a projector or a plasma TV to deliver powerful interactive presentations.

Whether in a classroom or a boardroom, you can display video, images, and documents and emphasize their details with sophisticated features like split-screen, highlight, mask, picture-in-picture, color filters, and annotations. The features are part of an included software called Image Mate and can be applied to images already captured or to those placed under the camera eye for live projection, or to both. Monitor what you're presenting on a built-in 3.5" LCD, and optionally connect to a CRA-1 tablet to deliver your presentations wirelessly from as far as 50 feet away, making annotations and applying other features as you walk around the room. If you're a teacher, record class sessions and post them on YouTube or elsewhere online for students who were late or absent, or for parents, or for yourself.

The P30HD has a CMOS sensor that captures 3.4 million pixels worth of information. The lens of the camera is large and lets in lots of light for clear images. The lens features a 16x optical zoom, which combines with an 8x digital zoom to magnify even tiny details of documents or objects by up to 128 times, clearly, without any distortion. The camera arm is flexible and lets you get shots from almost any angle, even from upside-down. Audio is captured by a built-in mic, and an external mic can optionally be connected. Video is delivered in 1080p HD, in full-motion at 30 frames-per-second. Video, photos, and audio can be saved internally via available USB and SD slots, or can be saved onto a connected computer. The P30HD is compatible with Macs and PCs.

Video Capture and Live Projection

  • Captures video / photos and projects images live
  • Connects to Mac or PC and to a projector or digital TV
  • Applies features like picture-in-picture to projected material
  • Captures class sessions to be posted online for students/parents
  • Saves files to computer or internally via USB/SD/SDHC memory slots


High-Quality Images and Audio

  • A large and fast lens lets in lots of light for clear images
  • A 3.4MP CMOS sensor captures bright and colorful images
  • A 16x optical zoom helps magnify even tiny details by 128 times
  • A 3D noise reduction feature helps remove image distortion/flickering
  • The camera arm is adjustable and lets you shoot even from upside-down
  • A built-in mic captures sound; an external mic can optionally be connected
  • Outputs full-motion video at 30 frames a second in resolutions up to 1080p HD

(ELMO-P30HD)

Sensor

1/2.8" full HD 1080p CMOS sensor

Pixels

3,400,000 pixels
2,144 x 1,588

Effective Pixels

1,920 x 1,536

Frame Rate

30 frames per second

Resolution

Analog RGB:
800 x 800

Analog RGB Output

1080P: 1920 x 1080 @ 60Hz
720P: 1280 x 720 @ 60Hz
SXGA: 1280 x 1024 @ 60Hz
WXGA: 1280 x 800 @ 60Hz
XGA: 1024 x 768 @ 60Hz

Zoom

Powered, 16X optical / 8x digital / 128x total magnification

Lens

F2.7
f=4.9mm - 78.4mm

Shooting Area

1080p: Max. 400 x 223mm / Min. 27 x 15mm
720p: Max. 400 x 223mm / Min. 27 x 15mm
SXGA: Max. 400 x 320mm / Min. 27 x 22mm
WXGA: Max. 400 x 248mm / Min. 27 x 17mm
XGA: Max. 400 x 299mm / Min. 27 x 20mm

Focus

Auto / Manual / Zoom Sync

LCD Monitor

Built-in 3.5" LCD monitor (8.9 cm)

Functions

White balance: Auto / One-Push / Manual
Image mode: Text1 / Text2 / Text3 / Graphics1 / Graphics2
Edge enhancement: Yes (only for Graphics1 mode)
Still image storage: Yes
Movie storage: Yes
Digital zoom: 8X
Gamma setting: Yes (only for Graphics1 mode)
OSD (on-screen display): Yes
Image save: SD memory card / SDHC memory card / USB memory
State presetting: Up to 3 user settings
Support functions: Highlight, Mask, Scroll(in digital zoom), Mosaic, Split screen, PinP(Picture-in-Picture), Color filter, Pause, Image rotation, Positive/Negative conversion, Color/B&W selection

Input Selection

Main/External

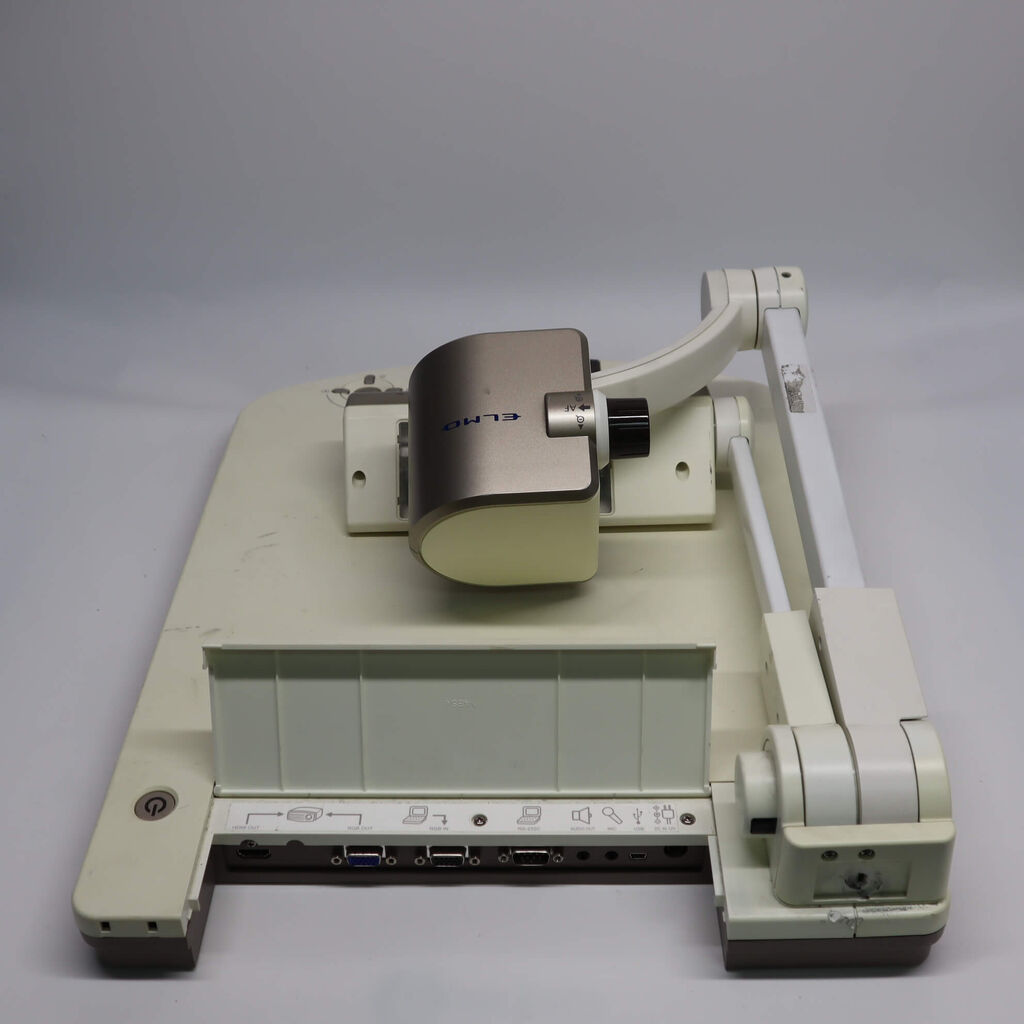

Outputs

(1) RGB output mini D-sub 15-pin connector, female
(1) Composite video output RCA pin jack / 75Ω unbalanced
(1) HDMI output terminal
(1) Line Out terminal 3.5 mm stereo mini jack

Inputs

(1) RGB input mini D-sub 15-pin connector, female
(1) Mic In/Line Out (shared), 3.5 mm stereo mini jack
(1) 2.0 compliant Mini-B USB receptacle
(1) RS-232C D-sub 9-pin male

HDMI Output

Image output: 1080p/720p
Audio output: PCM44.1kHz sampling frequency

Memory Interface

(1) SD memory card slot x1 (1) 2.0 compliant Type A USB receptacle

Power Source

12V DC (AC adapter AC100 - 240V)

Power Consumption

23.5W

Dimensions

Set up: 14.6 x 19 x 21.6" (37.6 x 48 x 55 cm)
Folded: 14.6 x 19 x 7.1" (37.6 x 48 x 18 cm)

Weight

Approx. 10.1 lbs (4.7 kg)

SKU ELMO-P30HD
Barcode # 601527743182
Brand ELMO
Brand ELMO
Type Visual Presenter
Model P30HD
Shipping Cubic 0.017794000m3
