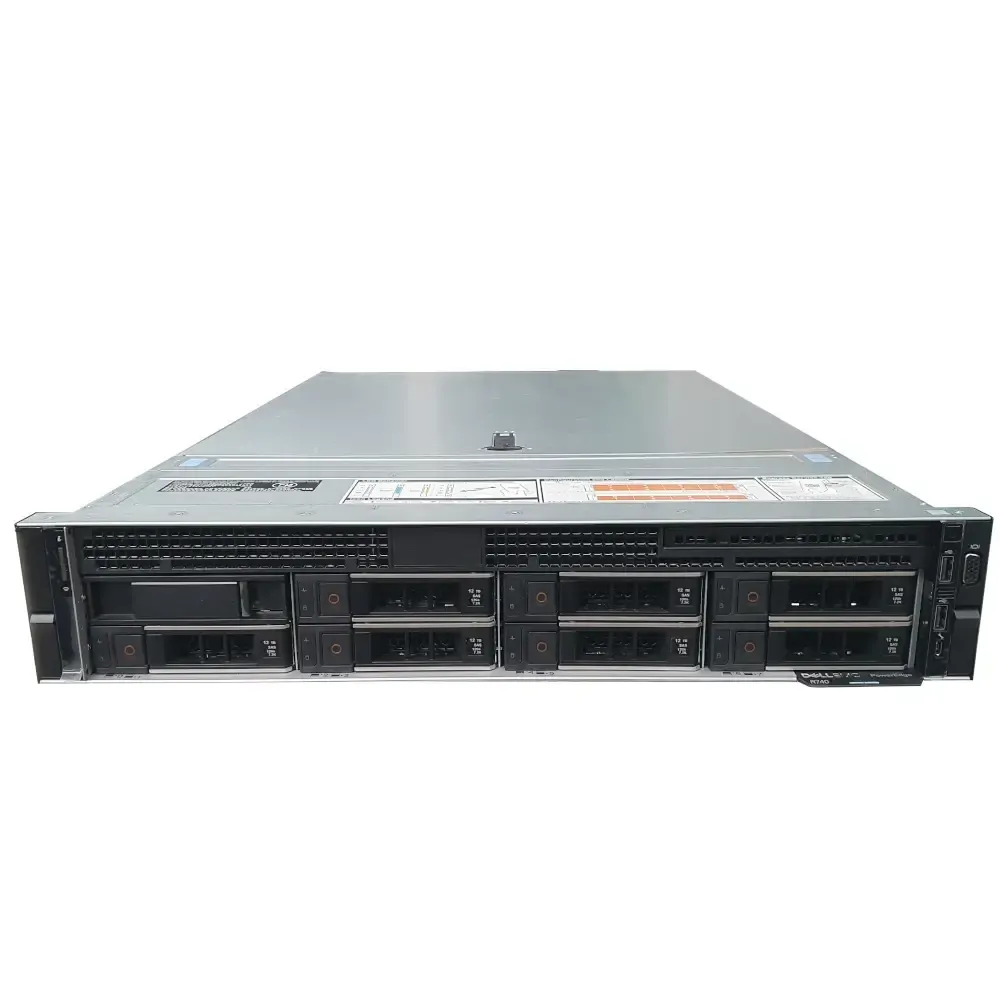

Maximize storage density without sacrificing performance. The 2U, two-socket Dell PowerEdge R740xd is engineered for data-heavy workloads, virtualization, and software-defined storage (SDS). Featuring customizable front, mid-tray, and rear drive bays, the "xd" variant delivers exceptional internal capacity and tiering flexibility compared to the standard R740 platform.

Key Hardware & Management Capabilities

Dual CPU Support
: Dual-socket 2U architecture supporting up to two (2) 1st or 2nd Gen Intel® Xeon® Scalable processors (up to 28 cores each).

DIMM Slots: 24 DDR4 DIMM slots supporting up to 3 TB LRDIMM, with optional support for up to 7.68 TB using Intel® Optane™ DCPMM (up to 2933 MT/s).

Extreme Storage (Configurable): Features a standard base configuration of 8 x 3.5" front drive bays, with optional mid-tray and rear drive expansion bays to maximize internal capacity. The 3.5" LFF version of the R740 is typically preferred for NAS, storage-heavy virtualization, or backup targets (like Veeam/TrueNAS).

OS Boot Subsystem (Optional): Supports an optional BOSS (Boot Optimized Storage Subsystem) card with dual M.2 SSDs for dedicated hardware RAID OS boot redundancy.

GPU Acceleration (Optional): Configurable with up to 3 double-width (300W) or 6 single-width (150W) GPUs/FPGAs across up to 8 PCIe Gen3 slots.

Remote Management: Embedded iDRAC9 with Lifecycle Controller for agent-free management; optional licenses unlock Enterprise/Datacenter tiers and Quick Sync 2 (BLE) integration.

(DellR740Gold61401-r)

Product

Power Cable

Brand Dell
Model PowerEdge R740
Form Factor 2U Rackmount
Bays 8x 3.5"
Processor 2x Xeon Gold 6140 2.30Ghz 18C
Memory 96GB (6x 16GB PC4-2666)
Storage 7x 12TB 7.2K SAS HDD
Raid Controller H730P NV Cache, PCIe Type
Remote Acess iDRAC9 Enterprise
Networking 2P 10G RJ45 / 2P 1G RJ45 rNDC
PCIe Slots 1x Low Profile, 3x High Profile
Adapter Cards None
Power Supply 2x 750W
Rails None
Bezel None
Operating System None
Dimensions 86.8x 737.5x 482.0 mm (3.42x 29.03x 18.98 inches, with bezel)
Weight 28 Kg
Other Features TPM 2.0
Notes
SKU DellR740Gold61401-r
Barcode # 615678643253
Brand Dell
Brand Dell
Form Factor 2RU Rackmount
Type Server
Series PowerEdge
Storage Type SAS HDD
RAM Size 96 GB
Processor Speed 2.30 GHz
Model PowerEdge R740
DIMMs Installed 6x 16GB PC4 2666V
Drive Bays 8x 3.5"
Remote Access Management iDrac9 Enterprise
RAID Controller PERC H730 NV Cache, PCIe-Type
Power Supply 2x 750W
Network Connectivity Wired-Ethernet (RJ-45)
UPC 615678643253
Processor Type 2x Intel Xeon Gold 6140
HDD Capacity 7x 12TB 7.2K
Memory Type DDR4 ECC-Registered
Shipping Cubic 0.105020000m3
