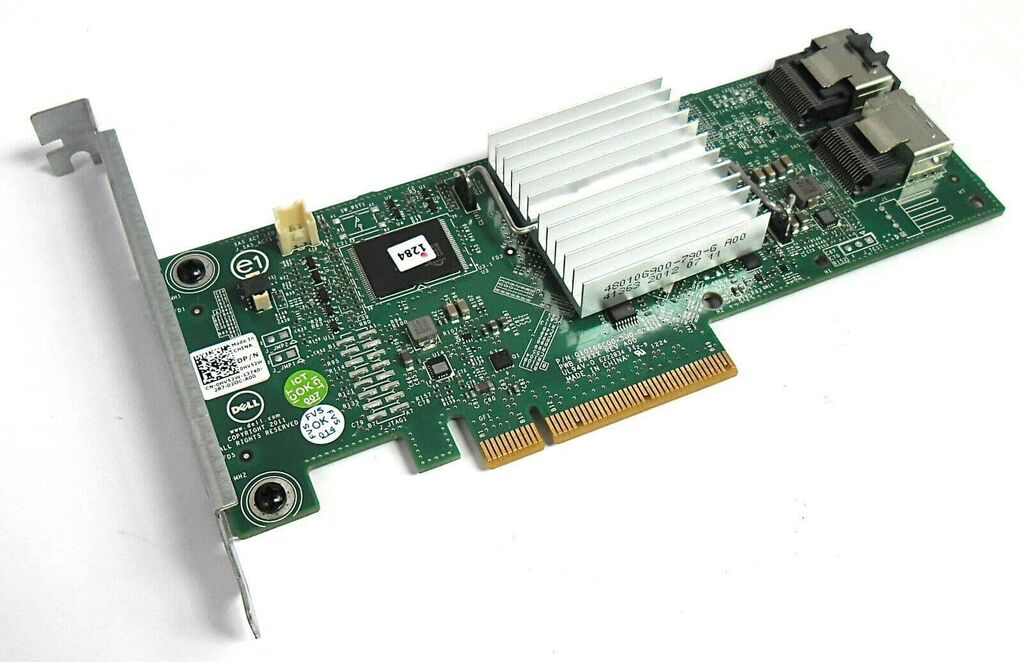

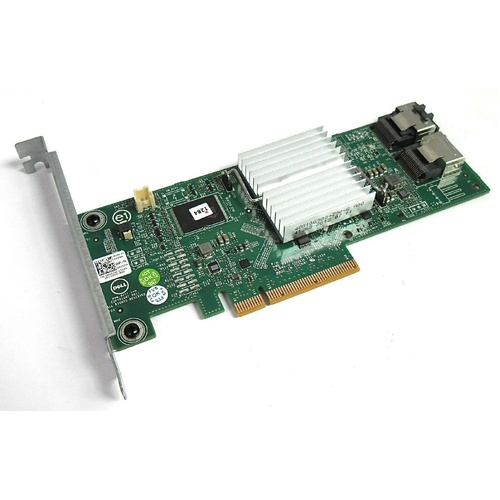

Includes Dell HV52W PowerEdge RAID Controller H310 PCIe card with Full Height Bracket, 1x T3F4V Mini SAS to Dual SAS and Power Cable, 0MJVMK LED Light Cable. Does NOT include Low Profile bracket.

An eight-port 6Gb/s PCI Express RAID controller, the Dell PowerEdge RAID Controller (PERC) H310 offers robust data protection, seamless migration, and the flexibility to use both SATA, SAS, and solid-state drives.

Small to medium business owners can enjoy the latest RAID technology at affordable prices and low-power consumption with the Dell™ PowerEdge™ RAID Controller (PERC) H310. Ideal for file, web, database, and email servers, the PERC H310 delivers trusted Dell PERC reliability with minimal maintenance effort.

Our entry-level controller cards offer a straight-forward solution that includes essential RAID levels and uncomplicated configuration options. In addition, these cards connect to SATA and SAS hard disk drives and solid state drives, allowing for tiered storage that optimizes cost and performance. Another cost-optimizing feature is physical disk power management (Dimmer Switch™) technology, which manages power consumption for idle, unconfigured and configured drives. Dell’s entry-level RAID controllers cover the spectrum of tiered storage requirements for cost-sensitive applications that require robust data protection.

(DellHV52W-Cables-R)

Feature

PERC H310 technical specification

Solution provided Low-cost, green SATA+SAS RAID solution for high-density servers (1U or 2U) and workstations with the flexibility to use both SATA and SAS hard drives, solid state drives, and pass-through drive configurations
Physical dimensions 167.6mm (6.6in) x 64.4mm (2.5in) (low profile)
Connectors Two x4 internal mini-SAS SFF8087
Maximum number of physical devices Non-RAID: 32
RAID 0: 16 per volume
RAID 1: 2 per volume plus hot spare
RAID 5: 16 per volume
RAID 10: 16 per volume
RAID 50: 16 per volume
Host bus type 8-lane, PCI Express 2.0 compliant
Data transfer rates Up to 6Gb/s per port
SAS controller LSISAS2008
Key RAID data protection features RAID levels 0, 1, 5, 10, 50:
Selectable logical drive as boot drive
Consistency check
Fast initialization for quick array setup
Native command queuing
Staggered spin-up for SATA drives
Hot-plug support
Global hot-spare support
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
PowerPC 440
Automatic rebuild of hot-spare drives
Auto resume during array rebuild
Greater than 2TB logical drive support
Soft bad block management
Error recovery support
DDF compliant configuration on disk
S.M.A.R.T. support
Patrol read for media scanning and repairing
Physical disk power management (Dimmer Switch™)
RAID management CTRL-R
Dell OpenManage™ Storage Services
Additional management:
UEFI (HII)
CEM
Environments Operating:
0°C to 65°C
5 to 90% non-condensing
Storage:
-45°C to 105°C
5 to 90% non-condensing
PCI card type 3.3V add-in card
PCI voltage +12V ±10%
LED indicators Internal
Activity/Fault per x4 port: Heartbeat
Operating systems Microsoft® Windows Server® 2008 R2 SP2
Red Hat® Enterprise Linux® 5.7
Red Hat® Enterprise Linux® 6.1
SUSE® Linux Enterprise Server 10 SP4
SUSE® Linux Enterprise Server 11 SP2
Virtualization options:
VMware® ESX/ESXi 4.1
VMware® 5.0 UL
SKU DellHV52W-Cables-R
Barcode # 601527880535
Brand Dell
Brand Dell
Type RAID Controller Card
MPN HV52W
Model Dell PowerEdge RAID Controller H310
Shipping Cubic 0.017794000m3
