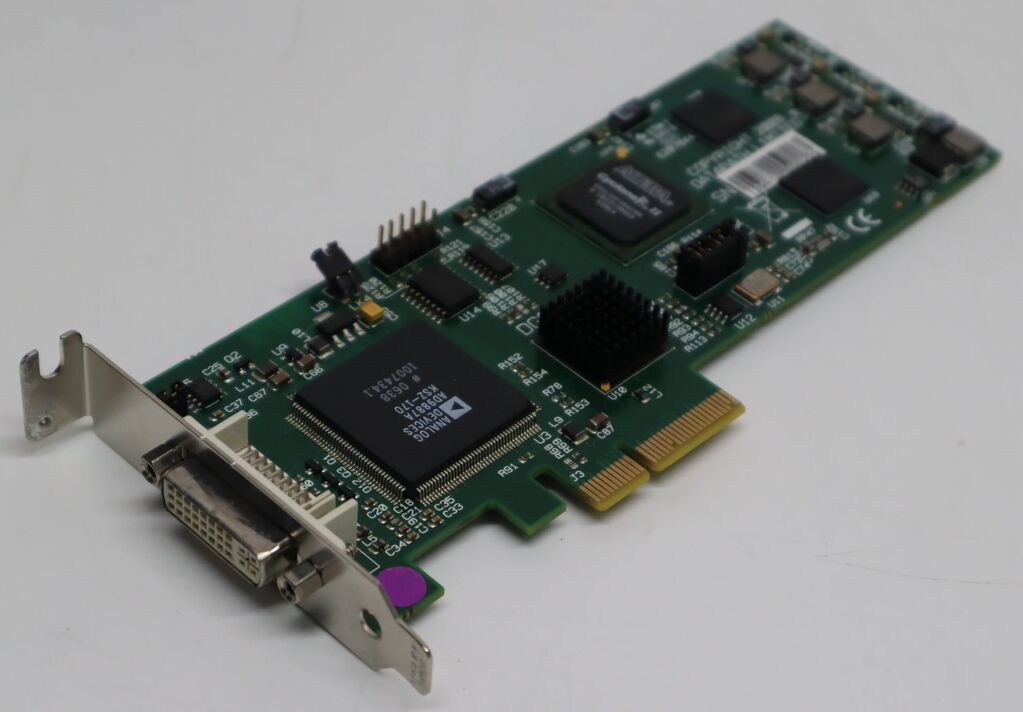

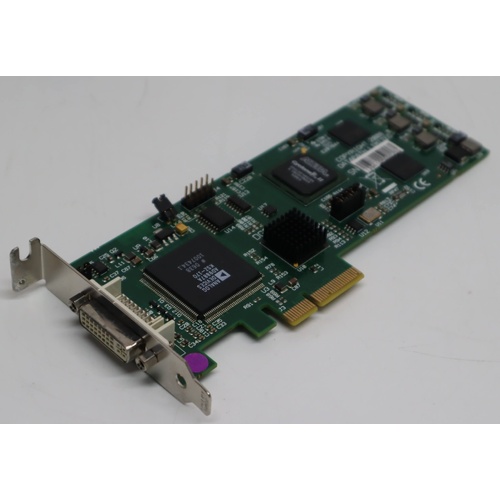

The VisionRGB-E1S captures the Analog/ DVI data and triple buffers it into onboard storage. This data is then copied using DMA to the host system for display, storage or streaming.

When a Datapath graphics card is used, the VisionRGB-E1S transfers the data directly to the graphics card thereby increasing performance. The VisionRGB-E1S capture card sends the relevant portions of each captured image to each display channel and instructs each channel to use its graphics engine to render the data. This fully utilises the hardware and dramatically increases performance.

When the RGB/DVI data is displayed on a non Datapath graphics card, the VisionRGB-E1S sends the data to system memory or direct to the graphics card, dependant on the software used for display.

The VisionRGB-E1S is an ideal solution for applications that require the capture of analog or DVI sources in real time. Typical applications include:

  • Viewing Analog or DVI sources from PCs, MACs, industrial or medical equipment, cameras and other video equipment
  • Streaming video applications
  • Video wall controllers

(VisionRGB-E1S-R)

VisionRGB-E1S Specifications

Board Format PCI Express x4 low profile card, 68.9mm x 167.6mm
PCI Express bus master with scatter gather DMA providing
Maximum data rate of 650 MB/s
Connectors One DVI-I type connector
Maximum Sample Rate 170 MHz analogue RGB or 165 MHz DVI
Analogue modes up to 340 MHz pixel clock can be captured using dual-pass sampling
Video Sampling RGB: 24 bits per pixel/ 8-8-8 format
Video Capture Memory 32 MB, triple buffered
Analogue RGB mode support 640×480, 800×600, 1024×768, 1280×1024, 1600×1200, 1920×1080, 2048×1536, custom modes
DVI Single-link Mode Support 640×480, 800×600, 1024×768, 1280×1024, 1600×1200, 1920×1080, 1920×1200, custom modes
HD Modes 1080p, 1080i, 720p, 576p, 576i, 480p and 480i using a Component-DVI connector (HDCP not supported)
Input Mode Detection Automatic detection of input modes in hardware, enabling the tracking of mode changes in the source signal
Pixel Transfer Formats RGB: 5-5-5, 5-6-5 or 8-8-8 (24bit/32bit) pixels
YUV: 4:2:2
Mono: 8 bit
Update Rate User defined, captured frame rate will match the source. Providing max data rate (650 MB/s) is not exceeded
Multi-buffered to eliminate tearing artifacts
Video Format Options Analogue RGB plus HSink and VSink (5 wire)
Analogue RGB with Composite sink (4 wire)
Analogue RGB with Sync on Green/ YPbPr (3 wire)
DVI Single Link
Operating System Support Up to Windows® 10 Linux support (NOTE: Check Linux specific features with Sales)
Power Requirements Max current at +3.3V – 0.25A
Max current at 12V – 0.5A
Max power – 6.8 Watts
Operating Temperature 0 to 35 °C/ 32 to 96 °F
Storage Temperature -20 to 70 °C/ -4 to 158 °F
Relative Humidity 5% to 90% non-condensing
SKU VisionRGB-E1S-R
Barcode # 615678622883
Brand Datapath
Brand Datapath
Type Video Capture
Model VisionRGB-E1S
Compatible Slot PCI Express x4
Shipping Cubic 0.017794000m3
