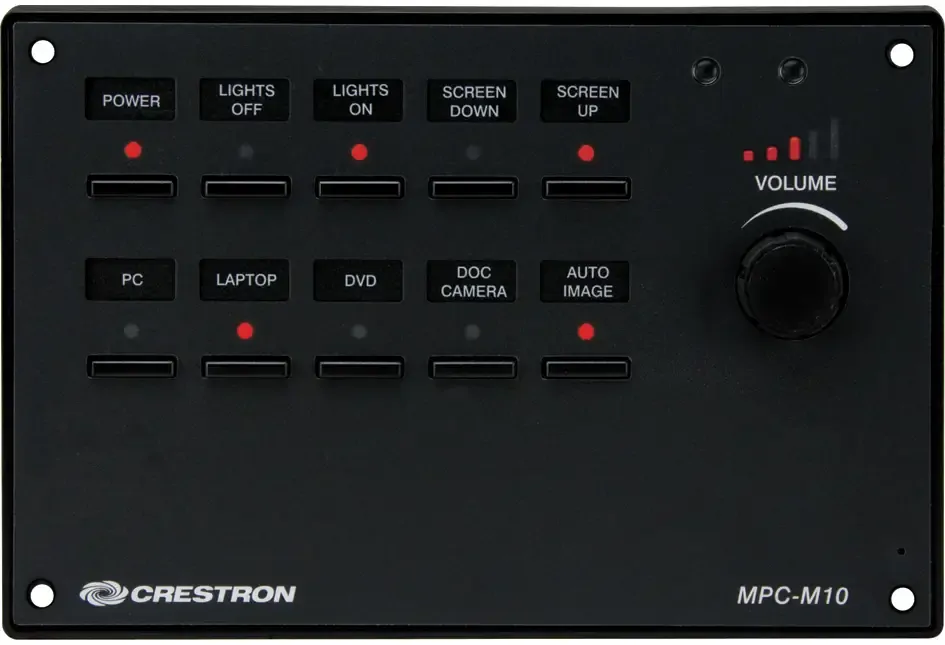

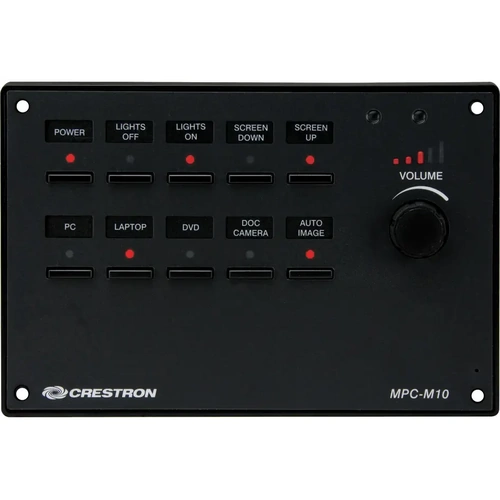

Crestron MPC is a family of 2-Series control systems designed for installation in a wall or podium, delivering the industry's best multimedia room control technology in a convenient, space-saving design. Perfect for classrooms, meeting rooms, lecture halls, and training facilities, the MPC-M10 provides a fully-programmable user interface featuring an attractive and intuitive layout of pushbuttons with customizable backlit labeling, volume control, and wireless remote capability.

Available in white or black, the MPC-M10 is constructed to handle the rigors of everyday use in a corporate or educational environment. An assortment of programmable control ports provides connectivity for audio, video, and lighting equipment. The onboard e-Control® Web server provides for complete integration as part of a facility-wide managed control network.

Key Features

  • Wall mount 2-Series control system
  • 10 programmable buttons with LED feedback
  • Customizable backlit button labels
  • Volume control knob and LED bargraph
  • Built-in IR receiver and light sensor
  • RS-232, IR, 4 input, & 2 relay control ports
  • Cresnet and 10/100 Ethernet
  • e-Control Web server
  • RoomView and SNMP support
  • SSL (Secure Sockets Layer) network protection
  • Setup via SystemBuilder software
  • Rugged construction
  • 3-gang wall-mountable
  • Includes external Cresnet power supply

(MPC-M10-B-T-OB)

Processor

  CPU 32-bit Freescale ColdFire® Microprocessor

Memory

  SDRAM 32 MB
  NVRAM 256 KB
  Flash 8 MB

Operating System

  Real-time, preemptive multi-threaded/multitasking kernel; FAT32 file system with long names; supports SIMPL™ Windows® and SIMPL+®

Ethernet

  10/100BaseT, auto-negotiating, full/half duplex, static IP or DHCP, DNS, SSL, TCP/IP, UDP/IP, CIP, SMTP, SNMP, built-in Web server and e-mail client; supports Crestron e-Control®2 XPanel and RoomView® applications

Connectors

  NET (2) sets of (4) captive screw terminals;
Cresnet port and 24 Volt DC power input with parallel pass-thru;
Master/Slave selectable
  LAN (1) 8-wire RJ45 with 2 LED indicators;
10/100BaseT Ethernet port;
Green LED indicates link status;
Yellow LED indicates Ethernet activity
  COM (5) captive screw terminals;
Bidirectional RS-232 port;
Up to 115.2k baud; hardware and software handshaking support
  RELAYS 1 – 2 (3) captive screw terminals comprising (2) normally open, isolated relays (with shared common);
Rated 1 Amp, 30 Volts AC/DC;
MOV arc suppression across contacts
  IR (2) captive screw terminals;
IR/Serial output port;
IR output up to 1.2 MHz;
1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud
  INPUTS 1 – 4 (5) captive screw terminals comprising (4) digital or analog input ports (referenced to GND);
Digital Input: Rated for 0-24 Volts DC, input impedance 20k ohms, logic threshold 1.25 Volts DC;
Analog Input: Rated for 0-10 Volts DC, protected to 24 Volts DC maximum, input impedance 20k ohms;
Programmable 5 Volts, 2k ohms pull-up resistor per pin
  Computer (1) USB Type B female (behind front cover);
USB 1.1 computer console port
  Ground (1) flying lead, chassis ground wire

Controls and Indicators

  Hard Keys (10) Programmable pushbuttons with backlit labeling
  Feedback Indicators (10) Programmable red LEDs (1 per hard key)
  VOLUME (1) Programmable continuous turn rotary encoder
  Bargraph (1) Programmable red 5-segment LED bargraph
  HW-R (1) Recessed miniature pushbutton for hardware reset (reboots the processor)
  SW-R (1) Recessed miniature pushbutton (behind front cover) for software reset (restarts the SIMPL program)

Light Sensor

  Photosensor, programmable for auto-dimming of front panel labeling and other functions

IR Receiver

  Reception Frequency 36 to 38 kHz IR
  Formats Crestron format, RC5
  Range Up to 50 ft line of sight (typical), dependent upon angle, obstructions, IR interference, and IR remote signal strength

Power Requirements

  Cresnet Power Usage 9 Watts (0.375 Amps @ 24 Volts DC);
PW-2407RU power supply included
  Available Cresnet Power 9 Watts using PW-2407RU (included)

Environmental

  Temperature 32° to 104°F (0° to 40°C)
  Humidity 10% to 90% RH (non-condensing)
  Heat Dissipation 17 BTU/hr

Enclosure

  Faceplate High-impact plastic, black or white, with polycarbonate label overlay
  Chassis Injection-molded plastic with steel mounting plate
  Mounting Requires 3-gang plaster ring or electrical box (≥2.5 inch deep recommended)

Dimensions

  Height 4.50 in (11.43 cm)
  Width 6.70 in (17.02 cm)
  Depth 2.23 in (5.67 cm)

Weight

  1.33 lb (0.61 kg)
SKU MPC-M10-B-T-OB
Barcode # 634607486198
Brand Crestron
Brand Creston
Type Control Panel
Colour Black
Model MPC-M10-B-T
Shipping Cubic 0.007488000m3
