Provides a single DM 8G+® or HDBaseT® input for any DigitalMedia™ Switcher with modular input card slots. Includes stereo downmixing of multichannel input signals to enable simultaneous distribution of multichannel and 2-channel audio.

Key Features

Modular input card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher
Provides a single DM 8G+® input
Supports cable lengths up to 330 ft (100 m) using DM 8G® cable or CAT5e [1]
HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
Handles video resolutions up to Full HD 1080p
Handles computer resolutions up to WUXGA
Handles 3D video and Deep Color
Handles Dolby® TrueHD, DTS-HD®, and uncompressed 7.1 linear PCM audio
HDCP compliant
Includes an HDMI® output for pass-through of the input signal
Includes a stereo analog line-level audio output with volume control
Allows extraction of stereo 2-channel audio signals
Built-in downmixing enables simultaneous distribution of multichannel surround sound and 2-channel stereo audio signals
Provides up to 100 ms delay adjustment of the downmix signal
Supports PoDM and PoH [2]
Occupies a single DM® switcher input card slot
Provides a rack-mountable DM 8G+ receiver solution using the optional DMCI card interface [3]

The maximum cable length for DigitalMedia 8G+ (DM 8G+) or HDBaseT is 330 ft (100 m) using DM-CBL-8G DigitalMedia 8G cable, DM-CBL DigitalMedia Cable, DM-CBL-D DigitalMedia D Cable, or third-party CAT5e (or better) UTP or STP. Shielded cable and connectors are recommended to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p. Refer to the Crestron DigitalMedia Design Guide, Doc. #4546 for complete system design guidelines. DM 8G+ is compatible with HDBaseT Alliance specifications for connecting to HDBaseT compliant equipment. All wire and cables are sold separately.
Supplying Power over DM (PoDM) or Power over HDBaseT (PoH) via the DM IN port requires connection of the DMC-C-DSP’s POE IN port to a PoDM Power Supply (DM-PSU-8 or DM-PSU-16, sold separately) or an 802.3af or 802.3at compliant PoE PSE. Supplying PoDM+ is supported using an 802.3at Type 2 Class 4 compliant PoE+ PSE, such as the Crestron CEN-SWPOE-16 (sold separately). Refer to the connected DM 8G+ or HDBaseT device for its PoDM or PoH capabilities and requirements. Any wiring that is connected to a PoDM, PoH, or PoE PSE port is for intra-building use only and should not be connected to a line that runs outside of the building in which the PSE is located.
Item(s) sold separately.
DVI is supported via the HDMI output using a suitable adapter or interface cable. CBL-HD-DVI interface cables are available separately.

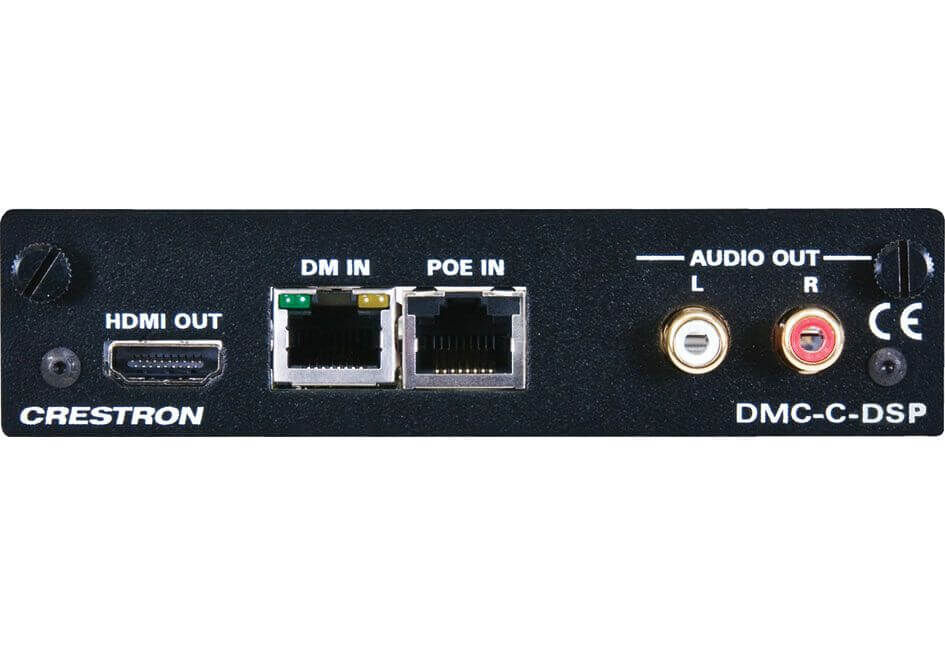

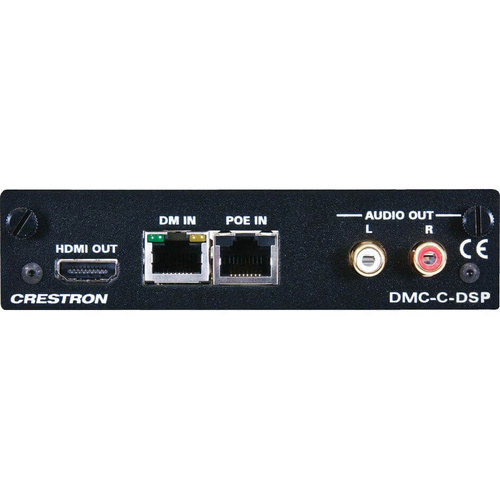

(DMC-C-DSP-R)

Video
	Input Signal Types	DM 8G+® & HDBaseT® w/Deep Color & 3D
	Output Signal Types	HDMI® w/Deep Color & 3D (DVI compatible^[4])
	Input Resolutions, Progressive	640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 852x480@60Hz, 854x480@60Hz, 1024x768@60Hz, 1024x852@60Hz, 1024x1024@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1365x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@24Hz (1080p24), 1920x1080@25Hz (1080p25), 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 2048x1080@24Hz, 2048x1152@60Hz, plus any other resolution allowed by HDMI up to 165MHz pixel clock
	Input Resolutions, Interlaced	720x480@30Hz (480i), 720x576@25Hz (576i), 1920x1080@25Hz (1080i25), 1920x1080@30Hz (1080i30), plus any other resolution allowed by HDMI up to 165MHz pixel clock
	Output Resolutions	Matched to input
Audio
	Input Signal Types	DM 8G+, HDBaseT
	Output Signal Types	HDMI (multichannel pass-through from input), analog stereo (2-channel downmix of input signal), routes simultaneous multichannel and 2-channel downmix signals to the switcher backplane
	Digital Formats	Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio™, LPCM up to 8 channels
	Analog Formats	Stereo 2-channel
	Decoder	Cirrus Logic® CS49700 HD Audio Decoder DSP with dual 32-bit cores
	Digital-To-Analog Conversion	24-bit 48 kHz
	Analog Performance	Frequency Response: 20Hz to 20kHz ±0.5dB; S/N Ratio: >95dB, 20Hz to 20kHz A-weighted; THD+N: <0.005% @ 1kHz; Stereo Separation: >90dB
	Analog Volume Adjustment	-80dB to 0dB
	Downmix Delay Adjustment	0.0 to 100.0 ms
Communications
	DigitalMedia	DM 8G+, HDCP, EDID, CEC, PoDM, PoDM+, Ethernet
	HDBaseT	HDCP, EDID, PoH, Ethernet
	HDMI	HDCP, EDID, CEC
	NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI device and a control system
Connectors
	HDMI OUT	(1) 19-pin Type A HDMI female; HDMI digital video/audio output; Also supports DVI^[4]
	DM IN	(1) 8-pin RJ45 female, shielded; DM 8G+ input, HDBaseT compliant; PoDM and PoH PSE (Power Sourcing Equipment) port^[2]; Connects to the DM 8G+ output of a DM transmitter or other DM device, or to a HDBaseT device, via CAT5e or Crestron DM-CBL-8G DigitalMedia 8G™ Cable^[1]
	POE IN	(1) 8-pin RJ45 female, PoE input; Connects to a DM-PSU-8 or DM-PSU-16 PoDM Power Supply, or to an 802.3af or 802.3at compliant PoE PSE (Power Sourcing Equipment), to enable PoDM and PoH power sourcing^[2]
	AUDIO OUT	(2) RCA female; Unbalanced stereo line-level audio output; Output Impedance: 100 Ohms nominal; Maximum Output Level: 2 Vrms
Indicators
	DM IN	(2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence
Construction
	Plug-in card, occupies (1) DM switcher input card slot, includes metal faceplate w/black finish
Weight
	8.0 oz (227 g)
