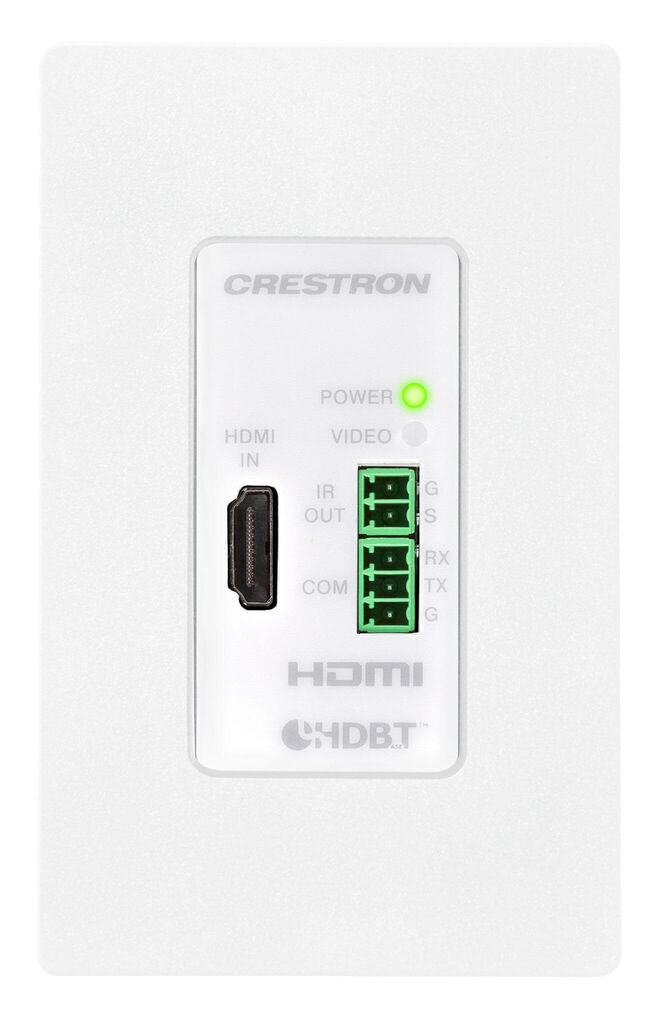

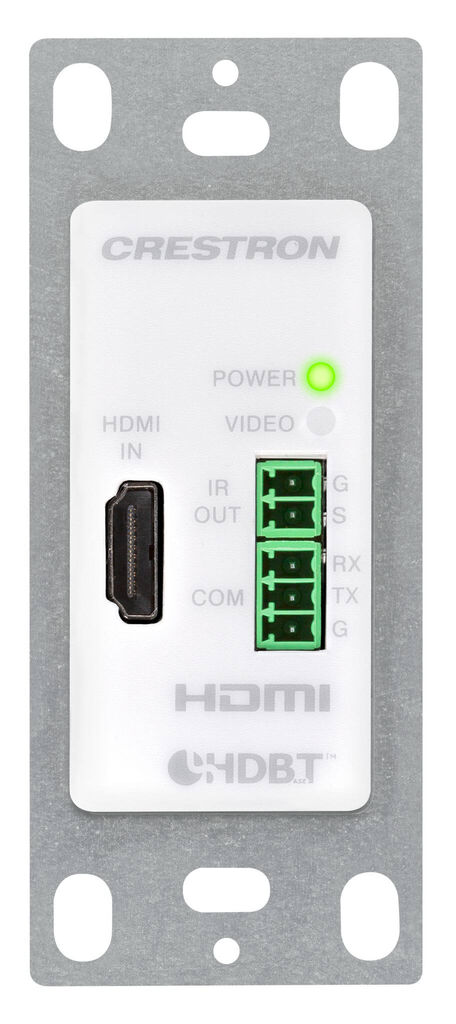

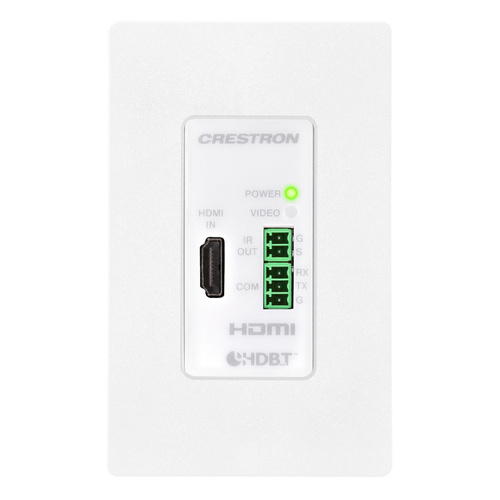

Provides a 1-gang mountable interface for an HD or 4K source as part of a complete DigitalMedia™ system. Supports 4K60 4:4:4 and HDR video signals. Connects to the DM 8G+® input of a DM® switcher or receiver via a single CATx cable. Includes IR and RS-232 control ports. White finish.

Faceplate not included

(DM-TX-4KZ-100-C-1G-W-T-OB)

Maximum Cable Lengths


Resolution		 Cable Type
DM-CBL-ULTRA
DM® Ultra Cable		 DM-CBL-8G
DM 8G® Cable		 Third-Party CAT5e
(or Higher)2
1920x1080 FHD 1080p 330 ft (100 m) 330 ft (100 m) 330 ft (100 m)
1920x1200 WUXGA
1600x1200 UXGA
2048x1080 DCI 2K
2048x1152 QWXGA
2560x1080 UWFHD 230 ft (70 m) 165 ft (50 m)
2560x1440 WQHD
2560x1600 WQXGA
3840x2160 4K UHD

Video
Input Signal Types HDMI with HDR10, Deep Color, 3D, and 4K60 4:4:4 support (DVI and Dual-Mode DisplayPort™ interface compatible)3
Output Signal Types DM 8G+ and HDBaseT with HDR10, Deep Color, 3D, and 4K60 4:4:4 support
Copy Protection HDCP 2.2
Maximum Resolutions The following table lists common resolutions.
Scan
Type		 Resolution Frame
Rate		 Color
Sampling		 Color
Depth
Progressive 3840x2160 4K UHD 24 Hz 4:4:4 36 bit
30 Hz 4:4:4 36 bit
60 Hz 4:2:2 36 bit
60 Hz 4:4:4 24 bit
2560x1600 WQXGA 60 Hz 4:4:4 36 bit
1920x1080 HD 1080p 60 Hz 4:4:4 36 bit
Interlaced 1920x1080 HD 1080i 30 Hz 4:4:4 36 bit
NOTES:
  • Custom resolutions may be supported at pixel clock rates up to 600 MHz*.
  • Support of 4096x2160 resolutions is limited. For detailed information, refer to Online Help Answer ID 1000497.
*Due to DSC codec limitations, only 4K60 and 4K50 resolutions can be supported at pixel clock rates between 300-600MHz. For detailed information, refer to Online Help Answer ID 1001200.

Audio
Input Signal Types HDMI (Dual-Mode DisplayPort interface compatible)3
Output Signal Types DM 8G+, HDBaseT
Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS-HD® High Res, DTS HD Master Audio™, DTS:X, LPCM up to 8 channels

Communications
RS-232 2-way device control and monitoring up to 115.2k baud with software handshaking via control system
IR/Serial 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 V) up to 19.2k baud via control system
DigitalMedia DM 8G+, HDCP 2.2, EDID, CEC, PoDM
HDBaseT HDCP 2.2, EDID, CEC, PoE
HDMI HDCP 2.2, EDID, CEC

Connectors, Front
HDMI IN (1) 19-pin Type A connector, female;
HDMI digital video/audio input (DVI and Dual-Mode DisplayPort interface compatible)3
IR OUT (1) 2-pin 3.5 mm detachable terminal block;
IR/Serial port;2 IR output up to 1.1 MHz;
1-way serial TTL/RS-232 (0-5 V) up to 19200 baud
COM (1) 3-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;2
Up to 115.2k baud, software handshaking support

Connectors, Rear
G (1) 6-32 screw;
Chassis ground lug
DM OUT (1) 8-pin RJ-45 female, shielded;
DM 8G+ output, HDBaseT standard compliant;
PoDM PD (Powered Device) port (HDBaseT PoE compatible);4, 5
Connects to the DM 8G+ input of a DM switcher, receiver, or other DM device or to an HDBaseT device via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable2
24VDC 0.75A (1) 2-pin 3.5 mm detachable terminal block;
24 VDC power input;
PW-2407WUL power pack sold separately

Indicators
POWER (1) Green LED, indicates operating power supplied via PoDM, HDBaseT PoE, or local power pack
VIDEO (1) Green LED, indicates video signal presence at the HDMI input
DM OUT (rear) (2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence

Power
Power over DM (PoDM) IEEE 802.3at Type 1 Class 3 (12.95 W) compliant PoDM PD, capable of being powered by PoDM PSE (Power Sourcing Equipment)4
Power over HDBaseT IEEE 802.3at Type 1 Class 3 (12.95 W) compliant HDBaseT PoE PD (Powered Device), capable of being powered by an HDBaseT PoE PSE (Power Sourcing Equipment)5
Power Pack (Optional) Input: 100-240 VAC, 50/60 Hz;
Output: 0.75 A @ 24 VDC;
Model: PW-2407WUL (sold separately)
Power Consumption With PoDM or HDBaseT PoE:
   5.43 W typical
   3.25 W idle
With 24 VDC:
   5.55 W typical
   3.31 W idle

Environmental
Temperature 32° to 95° F (0° to 35° C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation With PoDM or HDBaseT PoE:
   18.53 BTU/hr typical
   11.09 BTU/hr idle
With 24 VDC:
   18.94 BTU/hr typical
   11.29 BTU/hr idle

Enclosure
Construction Metal with white or black polycarbonate label overlay on front panel
Flush Wall Mount Mounts in 1-gang 2-1/8 in. deep electrical box or plaster ring (not included), decorator style faceplate sold separately
Surface Mount Surface-mount bracket included
Rack Mount Attaches to a single 19-inch EIA rack rail

Dimensions
Height 4.11 in. (105 mm)
Width 1.72 in. (44 mm)
Depth 2.20 in. (56 mm)

Weight
8 oz (227 g)

Compliance
Intertek® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device
  1. 4K60 4:4:4 performance and HDR support require the use of HDMI cables and couplers with a minimum TMDS bandwidth of 18 Gbps. If 4K60 4:2:0 or 4K30 4:4:4 performance is acceptable, cables and couplers with a minimum bandwidth of 10.2 Gbps can be used. Bandwidth loss is cumulative; therefore, performance may be reduced when inserting multiple cables and couplers inline.
  2. The maximum cable length for DM 8G+ or HDBaseT transmission is dependent upon the type of cable and resolution of the video signal. Refer to the Maximum Cable Lengths table for information. Crestron legacy cable models DM-CBL and DM-CBL-D support the same resolutions and cable lengths as CAT5e. Shielded cable and connectors are recommended to safeguard against unpredictable environmental electrical noise that may impact performance at resolutions above 1080p. Refer to the Crestron DigitalMedia System Design Guide (Doc. 4546) for additional guidelines. DM 8G+ technology is compatible with the HDBaseT Alliance specifications for connecting to HDBaseT compliant equipment. All wire and cables are sold separately.
  3. The HDMI input requires an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately.
  4.  In order for the DM-TX-4KZ-100-C-1-G to receive PoDM (Power over DigitalMedia), the device must connect to a DM switcher or other equipment that has a PoDM PSE port. Wiring that connects to a PoDM PSE port is for intrabuilding use only.
  5.  In order for the DM-TX-4KZ-100-C-1-G to receive HDBaseT PoE, the device must connect to equipment that has an HDBaseT PoE PSE port. Wiring that connects to an HDBaseT PoE PSE port is for intrabuilding use only.
  6. The IR and RS-232 (COM) ports are enabled only when the DM-TX-4KZ-100-C-1G connects to an Ethernet-enabled DM receiver or switcher that is addressable from a Crestron control system.
  7. The DM-TX-4KZ-100-C-1G does not include an Ethernet port. Local Ethernet connectivity for external devices requires an MP-WP183 or equivalent Ethernet jack with a dedicated LAN connection.
SKU DM-TX-4KZ-100-C-1G-W-T-OB
Barcode # 615678619562
Brand Crestron
Brand Creston
Type Wall Plate Transmitter
Model DM-TX-4KZ-100-C-1G-W-T
Shipping Cubic 0.017794000m3
