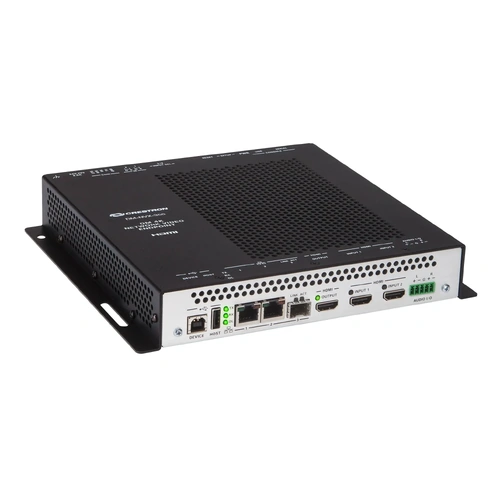

A reliable, high‑performance AV over IP encoder or decoder that transports 4K60 4:4:4 video over standard Gigabit Ethernet with no perceptible latency or loss of quality. Supports HDR10 and HDCP 2.2 with built‑in scaling and video wall processing, adaptive bit rate, USB and KVM routing, and optional fiber connectivity. Provides a secure, scalable 4K signal routing solution for enterprise and campus‑wide content distribution applications.

Key Features

  • 4K60 4:4:4 video over standard Gigabit Ethernet
  • HDR10 video support
  • Real-time video performance over the network
  • Pixel Perfect Processing technology
  • Enterprise-grade security including 802.1X, Active Directory® credential management, TLS,and AES-128
  • HDCP 2.2 compliant
  • Configurable as an encoder or decoder
  • Two auto-switching HDMI® inputs
  • One HDMI output with 4K60 4:4:4 scaler
  • Video wall processing
  • Dynamic text overlay
  • Image preview
  • Background image for on-screen display
  • Test pattern generator
  • Fixed, adaptive, or variable bit rate
  • Analog audio embedding or de-embedding
  • 7.1 surround sound audio
  • AES67 audio embedding and de-embedding
  • Breakaway audio
  • USB 2.0 and KVM signal extension and routing
  • Copper and fiber Ethernet connectivity
  • Network port selection
  • Automatic point-to-point connectivity
  • Device control via RS-232, IR, and CEC
  • Easy setup via built-in web pages
  • Compatibility with a Crestron® 3-Series® or later control system
  • Streamlined management using DM NVX Director® virtual switching appliances
  • .AV Framework™ technology support
  • XiO Cloud® service support
  • Crestron Home® OS support
  • Compact, surface-mountable design
  • Powered via PoE++, UPOE, or power pack

(DM-NVX-350-R)

Tested to power on only. Includes DM-NVX-350 unit ONLY. Does NOT include power adapter.

Encoding/Decoding
Stream Type Encoder: Pixel Perfect Processing (default) or DM-NVX-D10/D20/D200 Series;11
Decoder: Pixel Perfect Processing or DM-NVX-E10/E20
Series11
Video Resolutions Up to 4096x2160@60Hz (DCI 4K60), 4:4:4 color sampling, HDR10 and Deep Color support
Audio Formats Multichannel (up to 8-channel LPCM or encoded HBR 7.1 surround sound), secondary 2-channel LPCM12
Bit Rates Encoder: Fixed (200 to 950 Mbps - user specified,5
Adaptive (dependent on input resolution of the stream), or
Variable (less than 150 Mbps to maximum of 750 Mbps, dependent on content and input resolution of the stream);
Decoder: Based on the stream received from the encoder
Streaming Protocols RTP, SDP
Container MPEG-2 transport stream (.ts)
Session Initiation Multicast via secure RTSP
Copy Protection HDCP 2.2, AES-128, PKI

Video
Input Signal Types HDMI with HDR10, Deep Color, and 4K60 4:4:4 support1, 13 (Dual-Mode DisplayPort™ interface and DVI compatible14)
Output Signal Types HDMI with HDR10, Deep Color, and 4K60 4:4:4 support1 (DVI compatible14)
Switcher 3x1 in decoder mode (HDMI 1, HDMI 2, Stream), 2x1 in encoder mode, manual or auto-switching, breakaway audio7, Crestron QuickSwitch HD™ technology
Scaler 4K60 4:4:4 video scaler with motion-adaptive deinterlacing, intelligent frame rate conversion, Deep Color support, HDR10 support, widescreen format selection (zoom, stretch, maintain aspect ratio, or 1:1), video wall processing up to 8 wide x up to 8 high, static or dynamic text overlay
Copy Protection HDCP 2.2
Resolutions Common resolutions are listed in the following table.
Scan
Type		 Resolution Frame
Rate		 Color
Sampling		 Color
Depth
Progressive 4096x2160 DCI 4K and 3840x2160 4K UHD 30 Hz 4:4:4 12 bit
60 Hz 4:2:0 12 bit
60 Hz 4:2:2 12 bit
60 Hz 4:4:4 8 bit
2560x1600 WQXGA Reduced Blanking 60 Hz 4:4:4 8 bit
2560x1440 WQHD Reduced Blanking 60 Hz 4:4:4 8 bit
120 Hz 4:4:4 8 bit
2560x1080 UWFHD 60 Hz 4:4:4 8 bit
2048x1152 QWXGA 60 Hz 4:4:4 12 bit
2048x1080 DCI 2K 60 Hz 4:4:4 12 bit
1600x1200 UXGA 60 Hz 4:4:4 12 bit
1920x1200 WUXGA 60 Hz 4:4:4 12 bit
1920x1080 FHD 1080p 60 Hz 4:4:4 12 bit
120 Hz 4:4:4 8 bit
Interlaced
(Input Only)		 1920x1080 HD 1080i 30 Hz 4:4:4 12 bit
NOTE: The maximum supported resolution is 4096x2160 at 60 Hz with 4:4:4 color sampling. Custom resolutions are supported at pixel clock rates up to 600 MHz.
NOTE: 1920X1080 FHD 1080p at 240 Hz is not supported.

Audio
Input Signal Types HDMI (Dual-Mode DisplayPort interface compatible14), analog stereo6
Output Signal Types HDMI, analog stereo6
Digital Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels
Analog Formats Stereo 2-channel
Analog-To-Digital Conversion 24-bit 48 kHz
Digital-To-Analog Conversion 24-bit 48 kHz
AES67 24-bit 48 kHz
Analog Performance Frequency Response: 20 Hz to 20 kHz ±0.5 dB;
S/N Ratio: >95 dB 20 Hz to 20 kHz A-weighted;
THD+N: <0.005% @ 1 kHz;
Stereo Separation: >90 dB
Analog Output Volume Adjustment −80 to +20 dB

Communications
Ethernet 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, IPv4 only or both IPv4 and IPv6, Active Directory authentication, variable Multicast TTL, HTTPS web browser setup and control, Crestron 3-Series or later control system integration
USB USB 2.0 host or device signal extension and routing, Layer 2 or Layer 3; USB 2.0 computer console (for setup)
RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system); computer console (for setup)
IR/Serial 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 V) up to 19.2k baud (via control system)
HDMI HDCP 2.2, EDID, CEC
DM NVX (via Ethernet) HDCP 2.2, AES-128 AV content encryption with PKI authentication, RTP, secure RTSP, SDP, ONVIF, IGMPv2, IGMPv3, SMPTE 2022, FEC (Forward Error Correction)

Connectors
USB DEVICE (1) USB Type B connector, female;
USB 2.0 device port;
USB signal extender port for connection to a computer or any other USB 2.0 host9
USB HOST (1) USB Type A connector, female;
USB 2.0 host port;
USB signal extender port for connection to a mouse, keyboard, or any other USB 2.0 device;9
Available Power: 500 mA at 5 VDC
Ethernet 1 (1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;2
PoE++ or UPOE PD (powered device) port;
IEEE 802.3bt Type 3 Class 5 (60 W/4 pair) compliant8
Ethernet 2 (1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port2
Ethernet 3 (1) SFP port;
Accepts one Crestron SFP-1G Series transceiver module3
HDMI OUTPUT (1) HDMI Type A connector, female;
HDMI digital video/audio output1 (DVI compatible14)
HDMI INPUT 1 – 2 (2) HDMI Type A connectors, female;
HDMI digital video/audio inputs,1
(DVI and Dual-Mode DisplayPort interface compatible14)
AUDIO I/O (1) 5-pin 3.5 mm detachable terminal block;
Balanced/unbalanced stereo line-level audio input or output;6
Input Impedance: 24k Ohms balanced/unbalanced;
Maximum Input Level: 4 Vrms balanced, 2 Vrms unbalanced;
Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;
Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced

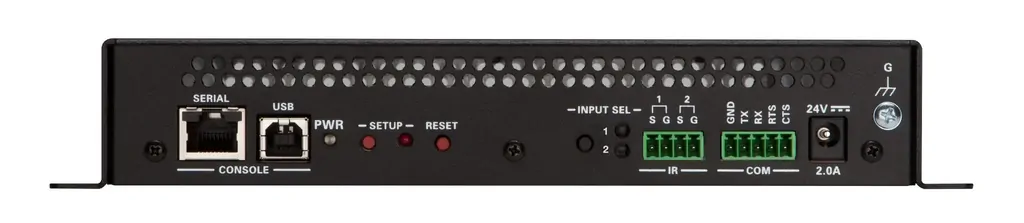

CONSOLE, SERIAL (1) 8-pin RJ-45 connector, female;
RS-232 computer console port (for setup)
CONSOLE, USB (1) USB Type B connector, female;
USB 2.0 computer console port (for setup)
IR 1 – 2 (1) 4-pin 3.5 mm detachable terminal block;
Comprises (2) IR/Serial ports;
IR output up to 1.1 MHz;
1-way serial TTL/RS-232 (0-5 V) up to 19200 baud;
IRP2 emitter sold separately
COM (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, hardware and software handshaking support
24VDC 2.0A (1) 2.1 x 5.5 mm DC power connector;
24 VDC power input;
PW-2420RU power pack
G (1) 6-32 screw;
Chassis ground lug

Controls and Indicators
TX (1) Green LED, indicates unit is in encoder (transmitter) mode
RX (1) Green LED, indicates unit is in decoder (receiver) mode
OL (1) Green LED, indicates an online connection to a control system via Ethernet
Ethernet 1 – 2 (4) LEDs, green indicates Ethernet link status, amber indicates Ethernet activity
Ethernet 3 LNK (1) Green LED, indicates Ethernet link status
Ethernet 3 ACT (1) Green LED, indicates Ethernet activity
HDMI OUTPUT (1) Green LED, indicates video signal transmission at the HDMI output
HDMI INPUT 1 – 2 (2) Green LEDs, each indicates sync detection at the corresponding HDMI input
PWR (1) Bi-color green/amber LED, indicates operating power supplied via PoE++, UPOE, or the included power pack, lights amber while booting and green when operating
SETUP (1) Red LED and (1) push button, displays onscreen IP address and also used to change operating mode (TX or RX)
RESET (1) Recessed push button, reboots the device
INPUT SEL (1) Push button, enables manual input selection;
(2) Bi-color green/amber LEDs, indicate the current active input and signal presence at each corresponding input

Power
Power Pack Input: 1.3 A maximum @ 100-240 VAC, 50/60 Hz;
Output: 2 A @ 24 VDC;
Model: PW-2420RU
PoE++ or UPOE IEEE 802.3bt Type 3 Class 5 (60 W/4 pair) compliant;
Compatible with the DM-PSU-ULTRA-MIDSPAN, IEEE 802.3bt
compliant Ethernet switch, or third-party compliant PSE
Power Consumption 35 W typical

Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 85 BTU/hr
Acoustic Noise 33 dBA typical

Enclosure
Chassis Metal, black finish, integral mounting flanges, fan cooled; vented top, front, bottom, and sides
Mounting Freestanding, surface mount, or attach to a single rack rail

Dimensions
Height 8.61 in (219 mm)
Width 9.27 in (236 mm)
Depth 1.50 in (39 mm)

Weight
2.0 lb (0.91 kg)

Compliance
UL® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device
  1. 4K60 4:4:4 performance and HDR support require the use of HDMI cables and couplers with a minimum TMDS bandwidth of 18 Gbps. If 4K60 4:2:0 or 4K30 4:4:4 performance is acceptable, cables and couplers with a minimum bandwidth of 10.2 Gbps may be used. Bandwidth loss is cumulative; therefore, performance may be reduced when inserting multiple cables and couplers inline.
  2. The minimum cable required for DM NVX over 1000BASE‑T Ethernet (copper) is unshielded CAT5e. All Ethernet ports on the DM‑NVX‑350 are for connection to an Ethernet network or device; they cannot be connected to the DM® ports of other Crestron devices.
    A nonblocking network is required for DM NVX devices.
  3. Use of the SFP port port requires the purchase of a Crestron SFP‑1G Series transceiver module (sold separately). All Ethernet ports on the DM‑NVX‑350 are for connection to an Ethernet network or device. The Ethernet ports cannot be connected to the DM ports of other Crestron devices.
  4. When the DM‑NVX‑350 is in encoder mode, the HDMI output resolution is matched to the resolution of the encoded source.
  5. The minimum bit rate for 4K60 video is 350 Mbps. A bit rate below 350 Mbps may display a black screen.
  6. The analog audio port can function as an input or output—not both. Analog audio output is only functional when the DM‑NVX‑350 is receiving a 2‑channel stereo input signal. A 2‑channel downmix signal from a multichannel surround sound source requires the use of a Crestron DM‑NVX‑351 or DM‑NVX‑351C.
  7. Audio from one onboard HDMI input cannot be combined with video from the other onboard HDMI input. Combining audio from one encoder with video from another encoder is possible using the 2‑channel AES67 audio stream only. Multichannel audio from one encoder cannot be combined with video from another encoder.
  8. Refer to the "Power" specifications section for approved powering options.
  9. The DM‑NVX‑350 can be configured to accept the connection of a USB device or a USB host—not both. Crestron DM NVX products are engineered to deliver maximum compatibility with the widest possible range of USB products. Crestron does not guarantee that all USB products are compatible with DM NVX products. Consult the DM NVX AV-over-IP System Design Guide, Doc. 7977, for USB bandwidth considerations.
  10. The DM‑NVX‑350 is not compatible with the USB HID signal extender technology found in other Crestron DM products.
  11. In encoder mode, the stream type of the DM-NVX-350 must be set by using the web interface or a control system. The default setting is strong>Pixel Perfect Processing for interoperability with DM NVX 4K60 4:4:4 decoders. For interoperability with a DM-NVX-D10, DM-NVX-D20, or DM-NVX-D200 decoder, the stream type of the DM-NVX-350 encoder must be set to DM-NVX-D10/D20/D200 Series. In addition, the resolution of the encoder must be set so that it does not exceed the maximum resolution of the DM-NVX-D10, DM-NVX-D20, or DM-NVX-D200 decoder.
    In decoder mode, the proper stream type of the DM-NVX-350 is automatically used. For interoperability with DM NVX 4K60 4:4:4 encoders, Pixel Perfect Processing is automatically used as the stream type of the DM-NVX-350 decoder. For interoperability with DM-NVX-E10/E20 Series encoders, DM-NVX-E10/E20 Series is automatically used as the stream type of the DM-NVX-350 decoder.
  12. As an encoder, the DM‑NVX‑350 transmits audio via the 2‑channel AES67 stream when it is receiving a 2‑channel stereo input signal via the HDMI or analog inputs.
  13. 3D formats are not supported.
  14. HDMI connections require an appropriate adapter or interface cable to accommodate a DVI or Dual‑Mode DisplayPort signal. CBL‑HD‑DVI interface cables are available separately.
SKU DM-NVX-350-R
Barcode # 634607120535
Brand Crestron
Brand Crestron
Type Network Video Endpoint
Model DM-NVX-350
Shipping Cubic 0.017794000m3
