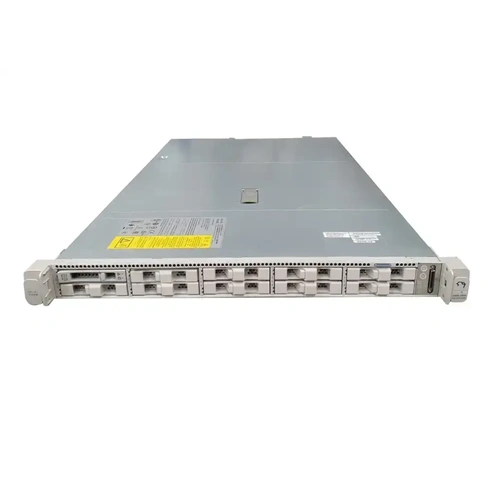

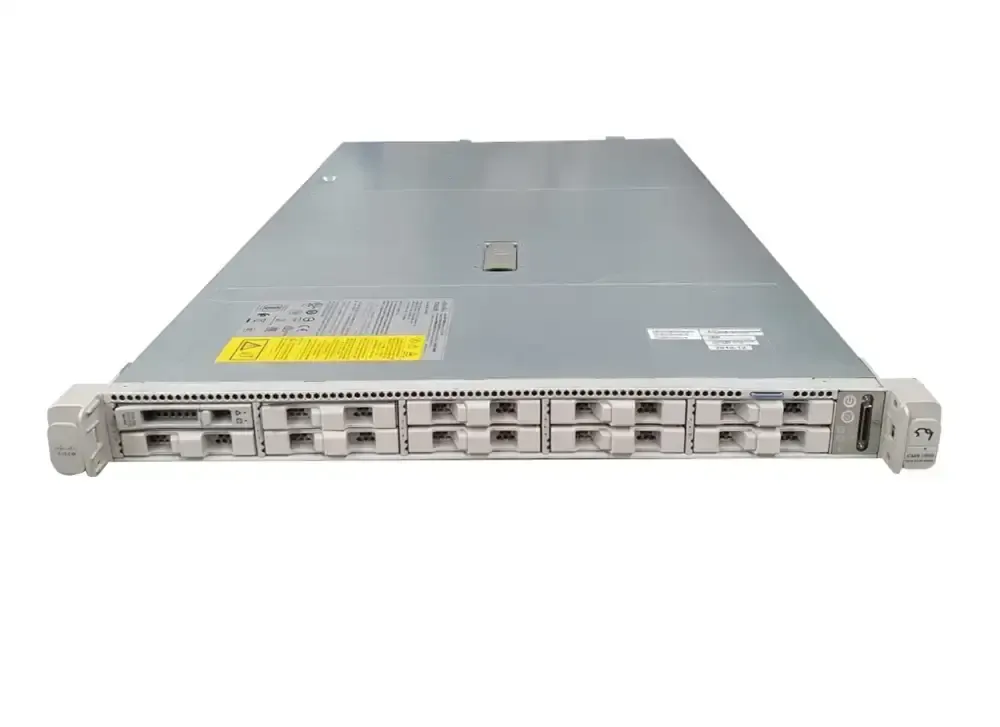

Cisco UCS C220 M5SX Rack Server Overview
The Cisco UCS C220 M5SX Rack Server is a high-density, 2-socket, 1-Rack-Unit (1RU) enterprise rack server designed to deliver industry-leading performance, efficiency, and high availability for space-constrained environments. It is purpose-built to handle a wide range of general-purpose enterprise infrastructure and application workloads, including virtualization, collaboration, database management, and bare-metal applications.

Key Capabilities & Architecture

Processing:
Powered by 1st and 2nd Generation Intel® Xeon® Scalable processors, delivering up to 20% more cores per socket and significantly higher computing capabilities compared to previous generations.

High-Density Memory Footprint: Features 24 DDR4 DIMM slots (12 DIMMs per socket) supporting up to 3.0 TB of standard system memory, or up to 9.0 TB of total memory capacity when combining traditional DDR4 DIMMs with Intel® Optane™ Persistent Memory (PMem) modules.

Flexible Storage Architecture (M5SX Model): Equipped with up to 10 front-pluggable Small-Form-Factor (SFF) 2.5-inch drive bays (supporting SAS/SATA HDDs and SSDs, It also features a dedicated internal slot for a 12-Gbps modular RAID controller without consuming standard PCIe expansion slots.

Advanced Remote Management: Includes integrated support for the Cisco Integrated Management Controller (CIMC). CIMC provides secure, web-based, out-of-band remote management, continuous system monitoring, and hardware diagnostics from anywhere, minimizing administrative overhead.

Flexible Deployment & Networking: Features dual embedded 10GBASE-T LOM ports alongside a dedicated modular LAN-on-motherboard (mLOM) slot for Cisco Virtual Interface Cards (VICs) without using up valuable PCIe slots. It can be deployed as a standalone server or seamlessly integrated into a Cisco Unified Computing System (Cisco UCS) managed architecture to lower Total Cost of Ownership (TCO) and maximize business agility.

(CiscoC220M5Gold61401-r)

Product

Power Cable

Brand Cisco
Model UCS C220 M5SX (Branded CMS 1000)
Form Factor 2U Rackmount
Bays 10x 2.5"
Processor 2x Xeon Gold 6140 2.3Ghz 18C
Memory 128GB (8x 16GB PC4-2666V)
Storage 1x 300GB 10K SAS HDD
Raid Controller UCSC-RAID-M5 (Cache & Battery)
Remote Acess CIMC
Networking Onboard RJ45
PCIe Slots 1x Low, 1x High Profile
Adapter Cards None
Power Supply 2x 770W
Rails None
Bezel None
Operating System None
Dimensions 482.1x 786.9x 43.2 mm (19.0x 31.0x 1.7 inches, without bezel)
Weight 17 Kg
Other Features
Notes
SKU CiscoC220M5Gold61401-r
Barcode # 634607372842
Brand Cisco
Brand Cisco
Form Factor 1RU Rackmount
Type Server
RAM Size 128 GB
Storage Capacity 1x 300GB 10K SAS HDD
Processor Speed 2.30 GHz
Model Cisco UCS C220 M5SX
Bays 10x 2.5"
DIMMs Installed 8x 16GB PC4-2666V
Installed Processors 2
Remote Access Management CIMC
RAID Controller UCSC-RAID-M5 (Cache & Battery)
Power Supply 2x 770W
Network Connectivity Wired-Ethernet RJ-45
Processor Sockets 2
Processor Thermal Design Power 140 W
Processor Cores 18
Processor Threads 36
UPC 634607372842
Processor Type 2x Intel Xeon Gold 6140
Memory Type DDR4 ECC-Registered
Shipping Cubic 0.105020000m3
