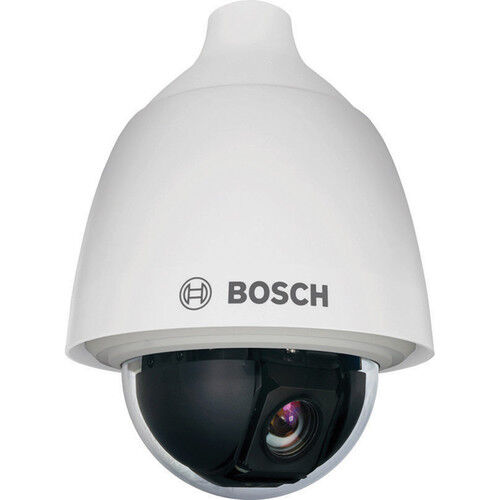

The white AUTODOME 5000 Series VEZ-523-EWCR Day/Night PTZ Outdoor Camera with Clear Rugged Bubble (PAL) from Bosch features a high-resolution 960H sensor that is capable of delivering a maximum resolution of 720 TVL. The Wide Dynamic Range of the sensor allows the camera to capture detailed images even in challenging high contrast scenes.

The camera provides variable pan/tilt speeds ranging from a fast patrol of 360° per second to a slow ramble of 5° per second with 0.225° pan/tilt accuracy. The 360° endless rotation and 0 to 180° tilt travel help track an object passing directly beneath the camera.

This AUTODOME 5000 series camera features an RS-485 port, and is compatible with the Bosch LTC 5136 Controller and the MIC-BP3 Biphase Converter for quick setup and control. The camera also supports OSRD and the Pelco P/D protocols for easy integration with existing surveillance systems.

  • True day/night PTZ dome camera with 432x zoom (36x extended zoom, 12x digital zoom)
  • High resolution up to 720 TVL (960H with WDR)
  • Vandal-resistant housing
  • Privacy masking, image enhancement, motion detection, and Wide Dynamic Range
  • White (RAL 9003) finish

(VEZ-513-EWCR)

Camera

System

PAL

Image Sensor

960H, 1/4" Double Scan CCD, 720 TVL sensor resolution

Effective Pixels (H x V)

Approximately 570,000; 976 x 582 (PAL)

Horizontal Resolution

720 TVL (960H with WDR capability)

Lens

3.43 to 120 mm, F1.6 to 4.5

Focus

Constant, Manual, Spot

Iris

Auto, Manual

Field of View (H x V x D)

Optical Zoom
Wide: 57.8 x 43.4 x 72.3°
Tele: 1.70 x 1.28 x 2.13°

Gain Control

Auto, Manual

Digital Zoom

12x

Sensitivity

30 IRE
Day Mode: 0.1 lux, under F1.6
Night Mode (B&W): 0.01 lux, under F1.6

Electronic Shutter Speed

1/50 to 1/10000 sec

Wide Dynamic Range

On, Off

Signal-to-Noise Ratio

>60 dB (with AGC off)

White Balance

Auto, Manual, Indoor, Outdoor, ATW

Video Output

1 Vpp / 75 Ω, BNC

Mechanical

Pan Range

360° continuous

Tilt Range

0 to 180°

Speed

Manual: 0.5 to 90° / sec
Pre-position: 5 to 360° / sec

Preset Accuracy

0.225°

Flip / Mirror

Image: 180°
Mechanical: 90°

Electrical

Input Voltage

24 VAC, 50/60 Hz

Power Consumption

With Heater: 50 W

Miscellaneous

Privacy Masking

20 individually-configurable masks

DNR

2 DNR / 3 DNR

AGC (Automatic Gain Control)

Auto, manual

Backlight Compensation

On, Off

Proportional Pan / Tilt to Zoom

On, Off

Image Enhancement

Zoom, Stabilize, Off

Nightview

On, Off, Auto

Prepositions

99

Tours

8

Auto Pan

4

Preset Tours

8

Camera Setup/Control

RS-485

Communications

Bosch OSRD, Pelco D/P

Supported Languages

English, Dutch, French, German, Italian, Polish, Portuguese, Russian, Spanish, Simplified Chinese

Alarm

Inputs

4 x 5 V 10 kΩ pull up

Outputs

2 x relay
Maximum 2 A, 30 VDC / 0.5 A, 125 VAC

Environmental

Ingress Protection Rating

IP66

Operating Temperature

-40 to 122°F (-40 to 50°C)

Storage Temperature

-4 to 158°F (-20 to 70°C)

Humidity

10 to 90% relative, non-condensing

Heater

Turns on at 19.4°F (-7°C)
Turns off at 37.4°F (3°C)

Certifications and Approvals

Electromagnetic Compatibility

Complies with FCC part 15, ICES-003, EN 55022:1998, EN 50130-4:1995, EN61000-3-2:2000 and EN 61000-3-3:1995

Safety

EN60950-1:2006, +A11:2009, A1:2010, +A12:2011 / UL 60950-1

Physical

Material

Housing: Die-cast aluminum
Sunshield: Outdoor-grade plastic

Dimensions

With Sunshield: 8.2 x 11.6" (20.8 x 29.5 cm)
Without Sunshield: 7.4 x 11.6" (18.6 x 29.5 cm)

Weight

8.0 lb (3.6 kg) with sunshield

SKU VEZ-513-EWCR
Barcode # 8717332901937
Brand Bosch
Brand Bosch
Type Dome Security Camera
Model VEZ-513-EWCR
Shipping Cubic 0.017794000m3
