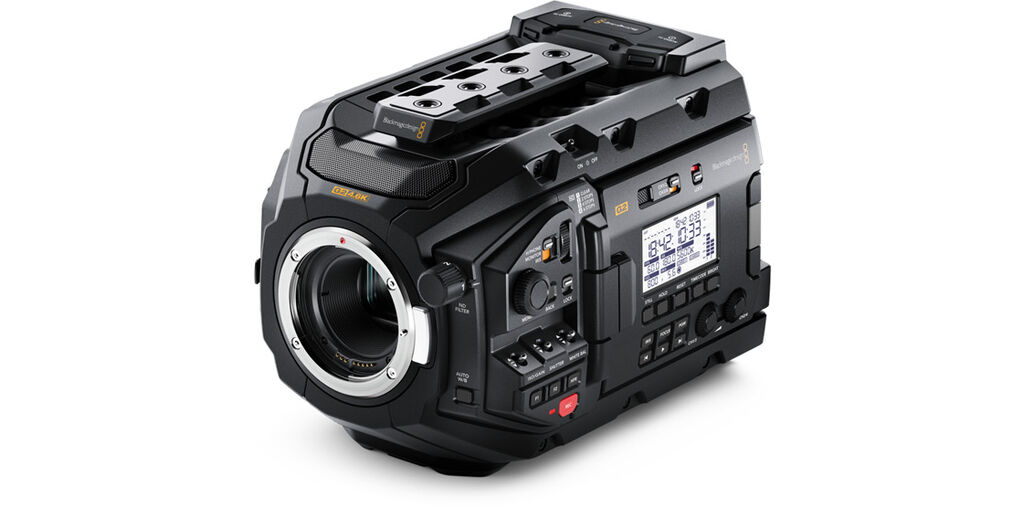

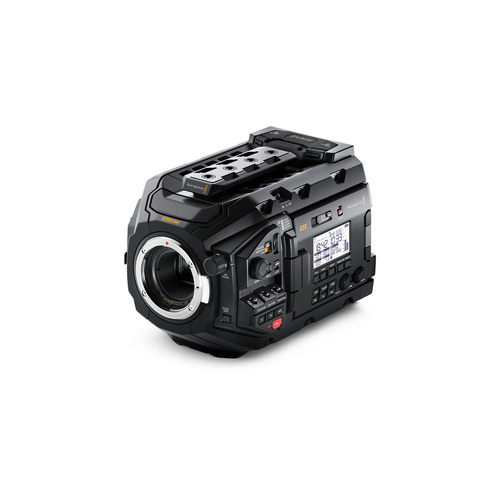

Next generation URSA Mini Pro with Super 35 4.6K HDR image sensor, 15 stops of dynamic range and high frame rate shooting up to 300 fps.

URSA Mini Pro 4.6K G2, is a professional digital film camera that combines incredible 4.6K image quality with the features and controls of a traditional broadcast camera! The second generation URSA Mini Pro features fully redesigned electronics and a new Super 35mm 4.6K HDR image sensor that combine to give you much higher frame rate shooting. You also get built in ND filters, an interchangeable lens mount, Blackmagic RAW support, and both dual CFast and SD UHS-II card recorders for capturing images at up to 300 frames per second! There’s even a USB-C expansion port that lets you record directly to flash drives or SSD disks for even longer recording times! URSA Mini Pro 4.6K G2 features a massive number of controls intuitively positioned on the side of the camera so you can adjust most settings by feel, without ever having to take your eyes off the action. URSA Mini Pro is lightweight and comfortable enough to use all day, has controls that are extremely fast to use, and image quality that’s far superior to broadcast cameras costing ten times more.

Digital Film Quality for Every Project

The perfect camera for digital film, broadcast, live production and more!

URSA Mini Pro cameras are “three cameras in one” because they combine high end digital film quality with the features and controls broadcasters need. They’re ideal for any kind of work from high end feature films, television shows and commercials, to independent films, broadcast news, and even studio and live production! URSA Mini Pro cameras go beyond standard Ultra HD broadcast quality because they give you 4.6K resolution with 15 stops of dynamic range. Plus, the super wide color gamut and Blackmagic Design Generation 4 color science gives you incredibly accurate skin tones and stunning, lifelike color so you always capture cinematic quality images. The super compact body features broadcast camera controls and advanced operating software that make it faster to set up and use than any other camera! Whether you’re on set, on location or shooting run and gun, URSA Mini Pro has the image quality and features you need to work on any type of project!

Revolutionary URSA Design

URSA Mini Pro is designed to include everything you need in a handheld camera so you can take it anywhere! Unlike cheap plastic cameras, the evenly weighted camera body is made out of a super tough magnesium alloy. It’s a true professional camera with full redundancy on every control, even the power switch! Plus, the familiar broadcast switches and controls allow full setting changes without having to take the camera off your shoulder! There’s an external high visibility backlit LCD status display so you can see critical shooting information, and a 4” fold-out touch screen for reviewing shots. That means you don’t have to arry an extra on‑set monitor! You get professional connections such as 12G‑SDI, XLR audio, a built in high quality microphone and more. The optional electronic viewfinder and shoulder mount kit lets you go from tripod to handheld shooting in seconds, or you can turn URSA Mini Pro into the ultimate live production camera by adding an URSA Studio Viewfinder!

(BlackMagicPro46K-B)

Effective Sensor Size

25.34mm x 14.25mm (Super35)

Lens Mount

EF mount included. Interchangeable with optional PL, B4 and F lens mounts.

Lens Control

Electronic control via EF mount pins or 12pin broadcast connector for compatible lenses

Dynamic Range

15 Stops.

Shooting Resolutions

4608 x 2592, 4608 x 1920 (4.6K 2.40:1)
4096 x 2304 (4K 16:9)
4096 x 2160 (4K DCI)
3840 x 2160 (Ultra HD)
3072 x 2560 (3K Anamorphic)
2048 x 1152 (2K 16:9)
2048 x 1080 (2K DCI)
1920 x 1080

Frame Rates

Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.

High Speed Frame Rates

Blackmagic RAW 8:1

4.6K Full - Up to 120 fps
UHD Windowed - Up to 150 fps
HD Windowed - Up to 300 fps

ProRes 422 HQ

4.6K Full - Up to 80 fps
UHD Windowed - Up to 120 fps
HD Windowed - Up to 240 fps

Built in ND Filters

Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters.

Focus

Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.

Iris Control

Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Screen Dimensions

4 inch

Screen Type

LCD capacitive touchscreen.

Metadata Support

Automatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

Controls

Touchscreen menus on 4 inch screen. Push buttons for other controls. 2 assignable shortcut keys.

Timecode Clock

Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections

Total Video Inputs

1 x SDI

Total Video Outputs

1 x SDI, 1 x SDI Monitoring.

SDI Rates

1.5G, 3G, 6G, 12G.

Analog Audio Inputs

2 x XLR analog switchable between mic, line and AES audio. Phantom power support.

Analog Audio Outputs

1 x 3.5mm headphone jack, supports iPhone microphone for talkback.

Reference Inputs

Tri-Sync/Black Burst/Timecode.

Remote Control

2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.

Computer Interface

USB Type-C 3.1 Gen 1 for external drive recording and software updates.

Audio

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

Standards

SD Video Standards

None

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 292M, SMPTE 424 level A and B, SMPTE 2081-1, SMPTE 2082-1

SDI Audio Sampling

48 kHz and 24 bit

Media

Media Format

Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

Codecs

Blackmagic RAW Constant Bitrate 3:1
Blackmagic RAW Constant Bitrate 5:1
Blackmagic RAW Constant Bitrate 8:1
Blackmagic RAW Constant Bitrate 12:1
Blackmagic RAW Constant Quality Q0
Blackmagic RAW Constant Quality Q5
Apple ProRes XQ QuickTime
Apple ProRes 444 QuickTime
Apple ProRes 422 HQ QuickTime
Apple ProRes 422 QuickTime
Apple ProRes 422 HQ QuickTime
Apple ProRes 422 LT QuickTime
Apple ProRes 422 Proxy QuickTime

Control

External Control

Blackmagic SDI Control Protocol, iPad control, Bluetooth control, 2 x 2.5mm LANC for lens and record control.

Color Corrector

Color Corrector

DaVinci YRGB.

Talkback and Tally

Talkback

SDI Channels 15/16 and iPhone headset.

Live Tally Indicator

Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.

Storage Features

Storage Type

2 x CFast 2.0

2 x SD UHS-II cards

1 x high speed USB-C expansion port for external media.

Storage Rates

Storage rates based on 30 frames per second.



4608 x 2592

Blackmagic RAW 3:1 - 183 MB/s
Blackmagic RAW 5:1 - 110 MB/s
Blackmagic RAW 8:1 - 68 MB/s
Blackmagic RAW 12:1 - 46 MB/s
Blackmagic RAW Q0 - 110 to 274 MB/s *
Blackmagic RAW Q5 - 27 to 78 MB/s **
Apple ProRes XQ - 360 MB/s
Apple ProRes 444 - 238 MB/s
Apple ProRes HQ - 158 MB/s
Apple ProRes 422 - 106 MB/s
Apple ProRes LT - 73.5 MB/s
Apple ProRes Proxy - 32.3 MB/s

3840 x 2160

Blackmagic RAW 3:1 - 127 MB/s
Blackmagic RAW 5:1 - 76 MB/s
Blackmagic RAW 8:1 - 48 MB/s
Blackmagic RAW 12:1 - 32 MB/s
Blackmagic RAW Q0 - 76 to 191 MB/s *
Blackmagic RAW Q5 - 19 to 55 MB/s **
Apple ProRes XQ - 250 MB/s
Apple ProRes 444 - 165 MB/s
Apple ProRes HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s

1920 x 1080

Blackmagic RAW 3:1 - 33 MB/s
Blackmagic RAW 5:1 - 20 MB/s
Blackmagic RAW 8:1 - 12 MB/s
Blackmagic RAW 12:1 - 8 MB/s
Blackmagic RAW Q0 - 20 to 49 MB/s *
Blackmagic RAW Q5 - 5 to 14 MB/s **
Apple ProRes XQ - 62.5 MB/s
Apple ProRes 444 - 41.25 MB/s
Apple ProRes HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s

Recording Formats

Blackmagic RAW Q0, Q5, 3:1, 5:1, 8:1 and 12:1 at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film, extended video or video dynamic range.

ProRes at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film, extended video or video dynamic range.

* Constant Quality setting Q0 storage rates quoted are indicative only, based on a 2:1 - 5:1 compression range.

** Constant Quality setting Q5 storage rates quoted are indicative only, based on a 7:1 - 20:1 compression range.

Actual storage rates are entirely dependent on image subject matter.

SKU BlackMagicPro46K-B
Barcode # 615678522183
Brand Blackmagic Design
Brand Blackmagic Design
Type Camera
Model URSA Mini Pro 4.6K G2
Shipping Cubic 0.017794000m3
