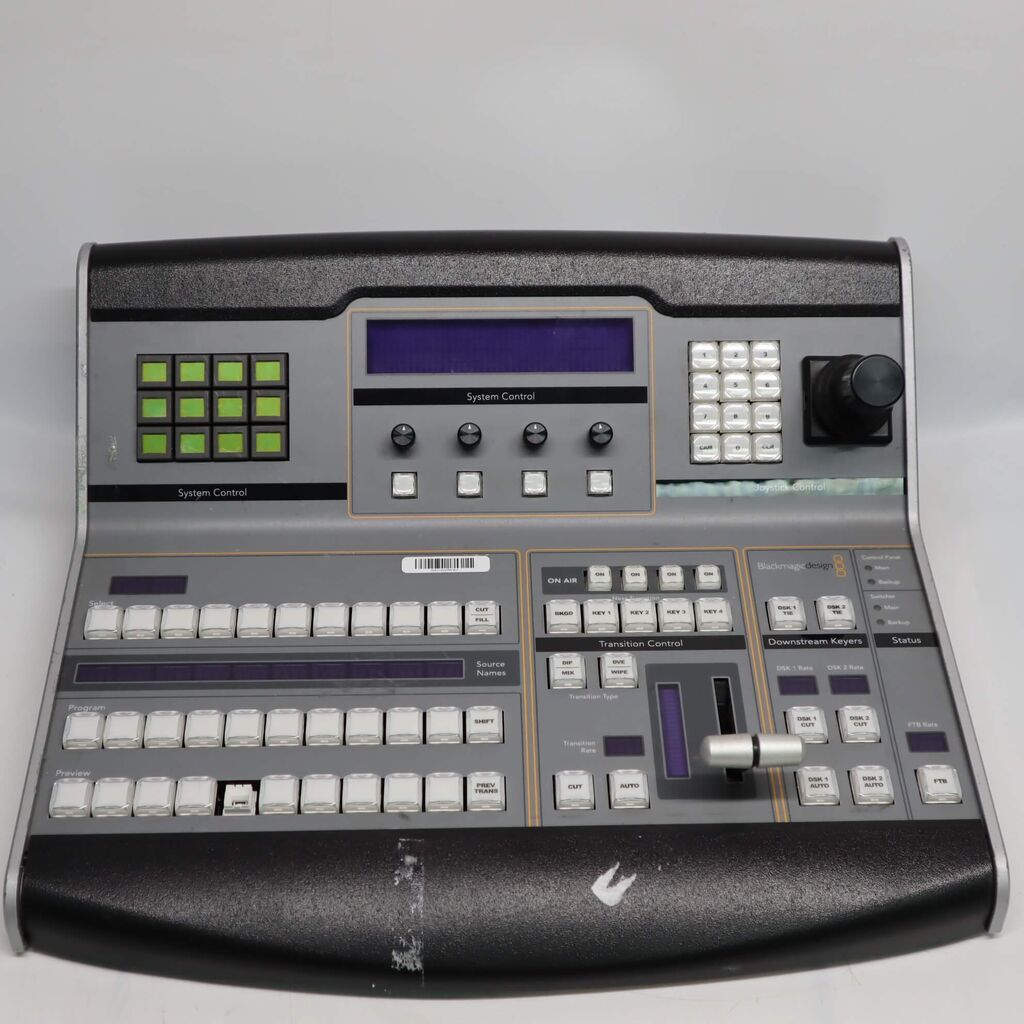

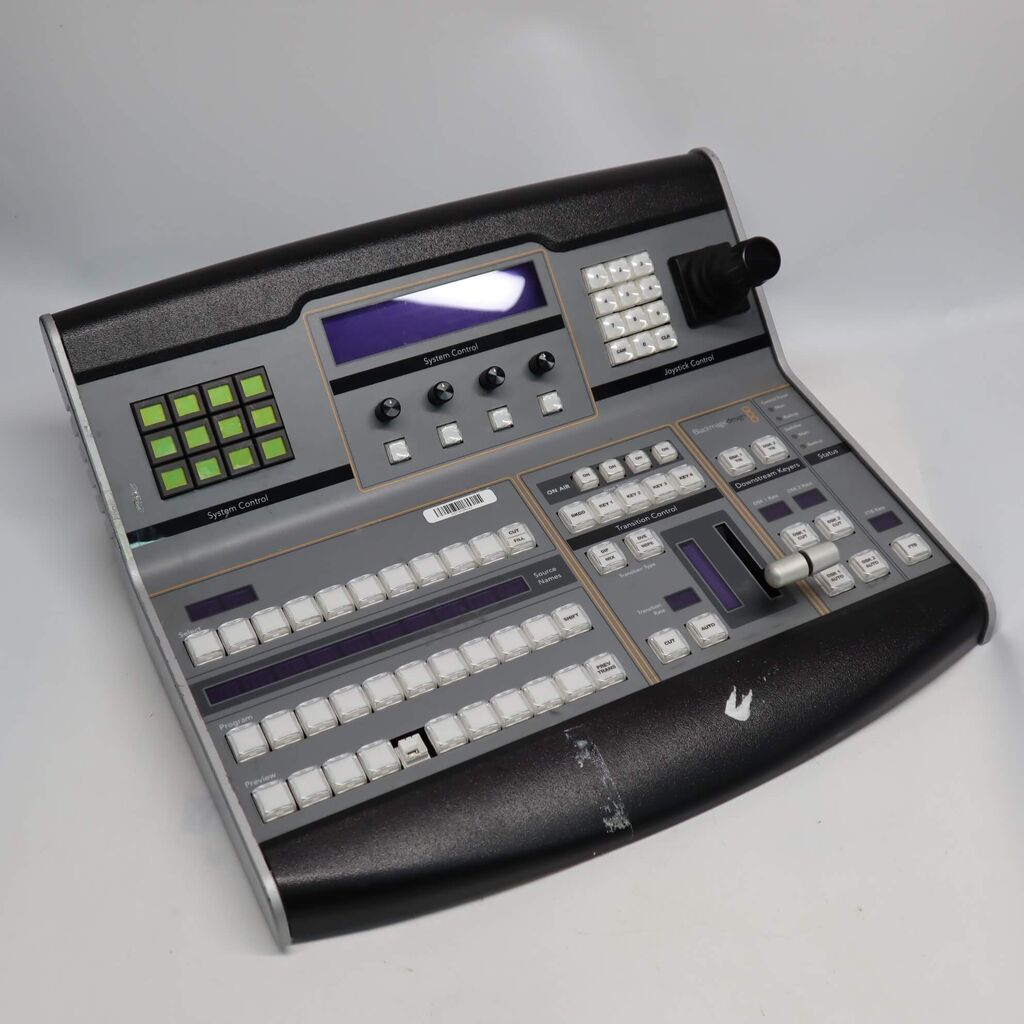

When the software control panel is too limited, the ATEM 1 M/E Broadcast Panel is a professional panel with the highest quality buttons, knobs and controls for the most demanding 24/7 live production environment. The ATEM 1 M/E Broadcast Panel is compact so it fits within a rack width! You get full control of your switcher, including cameras, transitions, keyers, fader, DVE control and more. ATEM 1 M/E Broadcast Panel connects via ethernet and includes a loop thru connection for more than one panel or computer.

(BlackMagic-SWPANEL1ME-B)

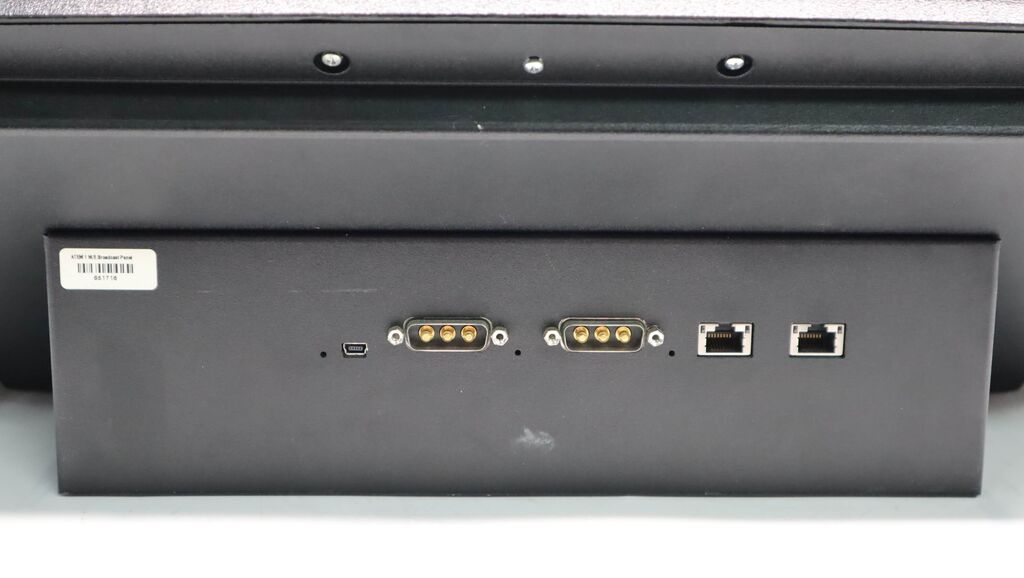

Connections

Ethernet
10/100/1000 BaseT with loop output for additional control panels or?computers.
Software Updates
1 x USB for firmware updates



Product Specifics

Direct Cross Points
10

Shifted Cross Points
20

Crosspoint Button Type
Tri-Color LED.

Crosspoint Label
4 Character LED.

Next Transition Selectors
BKG, Key 1 - Key 4.

On-Air indicator
Yes

Power Status Indicators
4

DSK Transition Selectors
Auto, Cut, Tie/Preview.

Preview Transition
1

Transition Rate Displays
2

LED Menu Display
2

Menu Control
12 x LCD Bitmap Buttons.

Dedicated Macro Buttons
None

Multi Control Buttons
None

Destination Bus
1

Source Select Bus
1

Fader Bar
1

3 Axis Joystick
1

Numeric Keypad
1

Product Specifics

Upstream Keyers
1

Downstream Keyers
2

Chroma Keyers
1

Linear/Luma Keyers
3

Transition Keyer (Stinger/DVE)
None

Total Number of Layers
4

Pattern Generators
2

Color Generators
2

DVE with 3D Borders & Drop?Shadow
None

Display interface
Minimum monitor resolution of?
1366 x 768.

Number of Windows
1 x 10

Routable Windows
Fixed Routing

Tally
Red for program and green for preview indication.

Windows Source Labels
Yes

Control Panel Compatibilty
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel.

Software

Software Applications
ATEM Software Control Panel.


Operating Systems



Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.



Windows 8.1 64-bit or
Windows 10 64-bit.



Power Requirements

Input Voltage
12V Power Supply (Not Included)
Redundant Power
Yes
Power Usage
40W

Environmental Specifications

Operating Temperature
0˚ to 40˚ C (32˚ to 104˚ F)
Storage Temperature
-20˚ to 60˚ C (-4˚ to 140˚ F)
Relative Humidity
Up to 95%
SKU BlackMagic-SWPANEL1ME-B
Barcode # 615678557314
Brand Blackmagic Design
Brand Blackmagic Design
Type Broadcast Panel
Model ATEM 1 M/E Broadcast Panel
Shipping Cubic 0.017794000m3
