Tested and Powers On

Sold AS IS

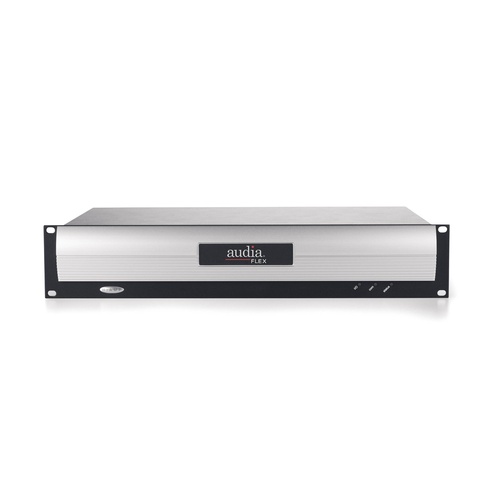

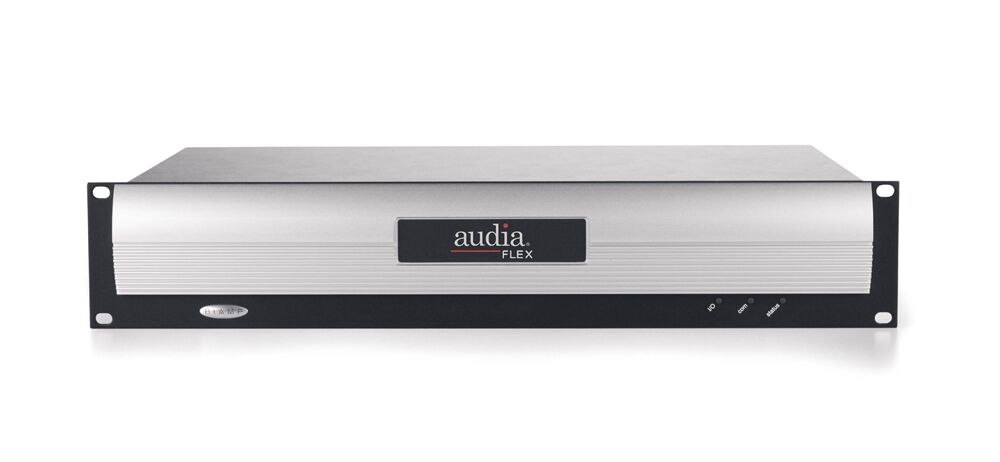

AudiaFLEX is an expanded version of Audia®, the benchmark in digital audio systems for demanding professional sound installations. AudiaFLEX provides the same easy-to-use software and functional algorithms, but with far greater flexibility in the choice of I/O configurations. Inputs and outputs may be specified by pairs, in any combination, up to a total of 24. All possible I/O configurations are available with or without CobraNet®, for multi-device or stand-alone systems. The intuitive software provides audio system design capabilities via PC computer, and allows easy selection, viewing, and calibration of numerous audio components: mixers, combiners, matrixes, equalizers, filters, crossovers, dynamics, routers, delays, remote controls, meters, generators, diagnostics, etc. Once a system design is compiled, it is downloaded into AudiaFLEX, where it can then be controlled via third-party systems such as AMX® and Crestron®, via daVinci™ software, and/or via dedicated Audia remote control panels.

FEATURES

  • up to 24 inputs/outputs, with or without CobraNet
  • input (IP-2), echo canceling (AEC-2HD), telephone (TI-2), output (OP-2e), & amplifier (PA-2) cards
  • input and output expanders (8-channel/CobraNet)
  • on-screen display of the total audio design
  • configuration/control via PC/laptop (Ethernet)
  • third-party control via RS-232 or TCP/IP
  • remote control panels for levels, presets, etc.
  • built-in diagnostic tools
  • multi-level security coding
  • unlimited system size
  • RoHS compliance and AES grounding practices
  • CE marked and UL/C-UL listed

Ability to select, view, and calibrate:

  • Mixers: standard, automatic, matrix, combiners
  • Equalizers: graphic, parametric, feedback
  • Filters: HPF, LPF, high shelf, low shelf, all-pass
  • Crossovers: 2-Way, 3-Way, 4-Way
  • Dynamics: leveler, comp/limiter, ducker, ANC
  • Routers: 2x4 ~ 56x56 ° Delays: 0 ~ 2000 ms
  • Controls: levels, mutes, presets, schedulers, logic gates, RS-232 commands, etc.
  • Meters: signal present, peak, RMS
  • Generators: tone, pink-noise, white-noise
  • Diagnostics: transfer function

(BiampAudiaFlex-R)
