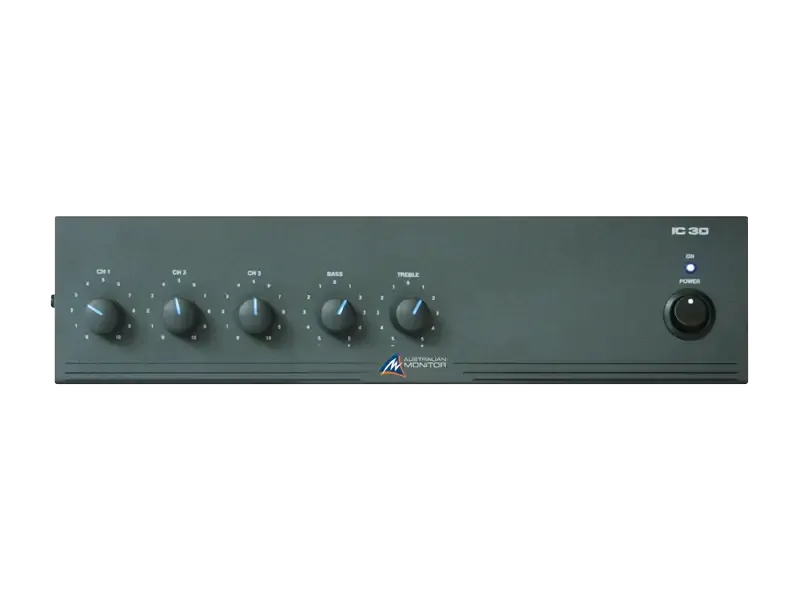

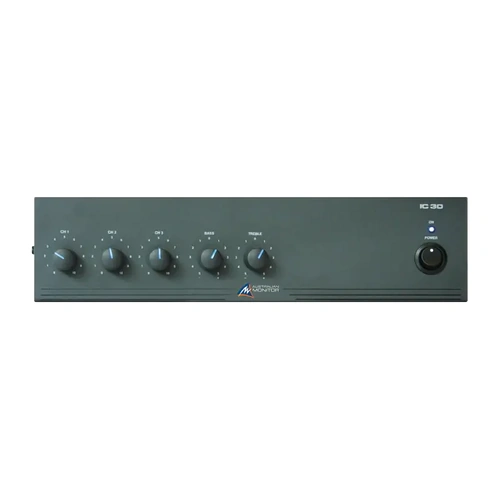

The IC30 is the compact workhorse of the mixer amp range, delivering 30 watts with a simple 3 input mixer and single stage priority the IC30 is a compact and reliable mixer amplifier.

Shelf mountable or rack mountable with the addition of the IC30RMK.

VOX muting available with the optional TX3010 module.

Features:

  • 3 Dual balanced microphone/line inputs
  • Auto Limiting
  • 240VAC/12VDC operation
  • Shorting/Vox mute (Vox mute via optional TX3010 Module)

(AM-IC30-R)

Power Output 30 Watts RMS
Maximum Load 330 Ohms @ 100 Volts
Frequency Response 70Hz - 15kHz (± 3dB)
Total Harmonic Distortion 0.3% @ 1 kHz rated power @ 70 Volts
Signal To Noise Ratio -68dB with all controls at their centre position
Tone Controls Bass @ 100Hz: Boost +12dB, Cut -12dB; Treble @ 10kHz: Boost +9dB, Cut -9dB

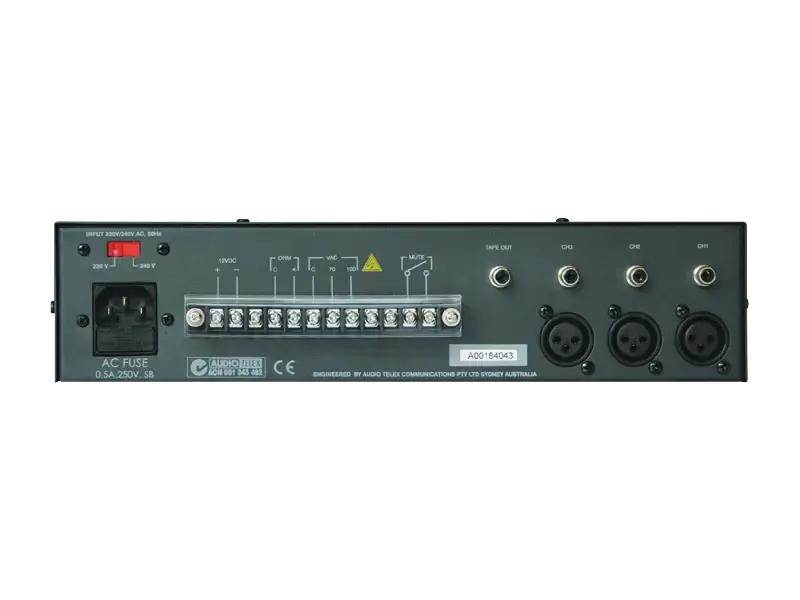

Inputs Three mic/aux universal inputs with XLR female mic sockets and RCA aux sockets
Input Sensitivity Mic: 1.5mV @ 200 Ohms; Aux: 75mV @ 47K Ohms
Outputs Speaker: 100, 70 Volts, 4 Ohms; Tape: 400mV @ 10K Ohms
Controls 3 Input channel gain controls, 1 Bass control, 1 Treble control
Metering/Indicators Power ”on“ LED
Power Sources AC: 230/240V - 50Hz, 110V - 60Hz (special) 3 pin IEC connector; DC: 12 Volts
Power Consumption 60 Watts (maximum)
Protection Overdrive protection
Dimensions/Weight 76mm H x 303mm W x 180mm D (Chassis dimensions only). 8kg
Rack Mounting Optional IC30RMK rack mount kit
Tone Generator Optional four tone module ATC5488
Muting Shorting muting facility included or optional VOX muting module TX3010
SKU AM-IC30-R
Barcode # 601527607255
Brand Australian Monitor
Brand Australian Monitor
Type Power Amplifier
Model IC30
Shipping Cubic 0.005704000m3
