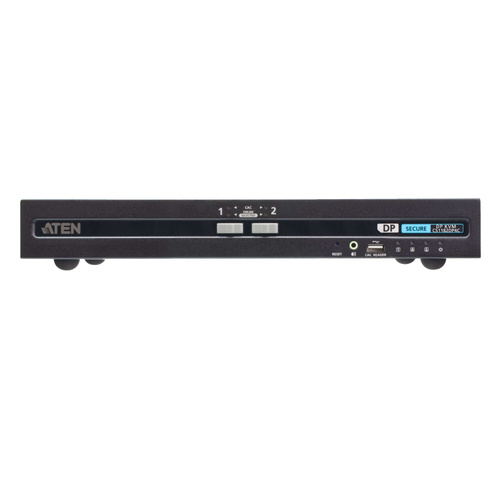

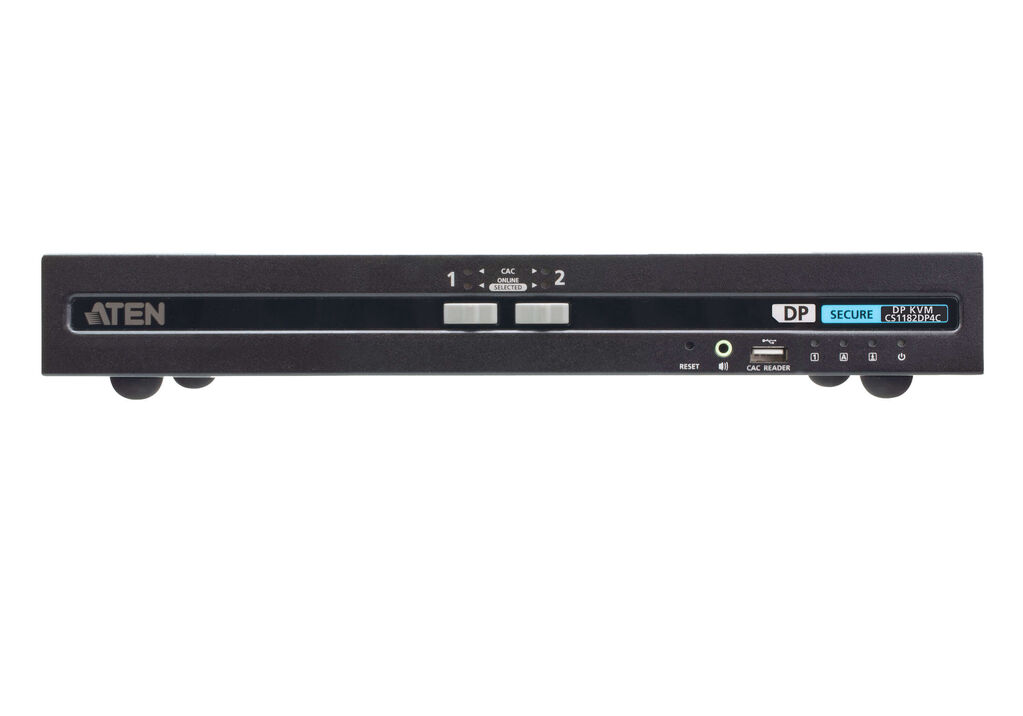

ATEN PSD PP v4.0 Secure KVM Switch CS1182DP4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1182DP4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Secure KVM Switch CS1182DP4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1182DP4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1182DP4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

Note:
1. The Remote Port Selector is not supplied in the package and requires a separate purchase.

  • Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
  • Always-on chassis intrusion detection –renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
  • Configurable Device Filtration –supports administrative configuration to filter specific USB authentication devices and USB HID devices
  • Port selection via pushbuttons / Remote Port Selector (RPS) only to enhance security

(CS1182DP4C-Acc-R)

Computer Connections 2
Port Selection Pushbutton, Remote Port Selector

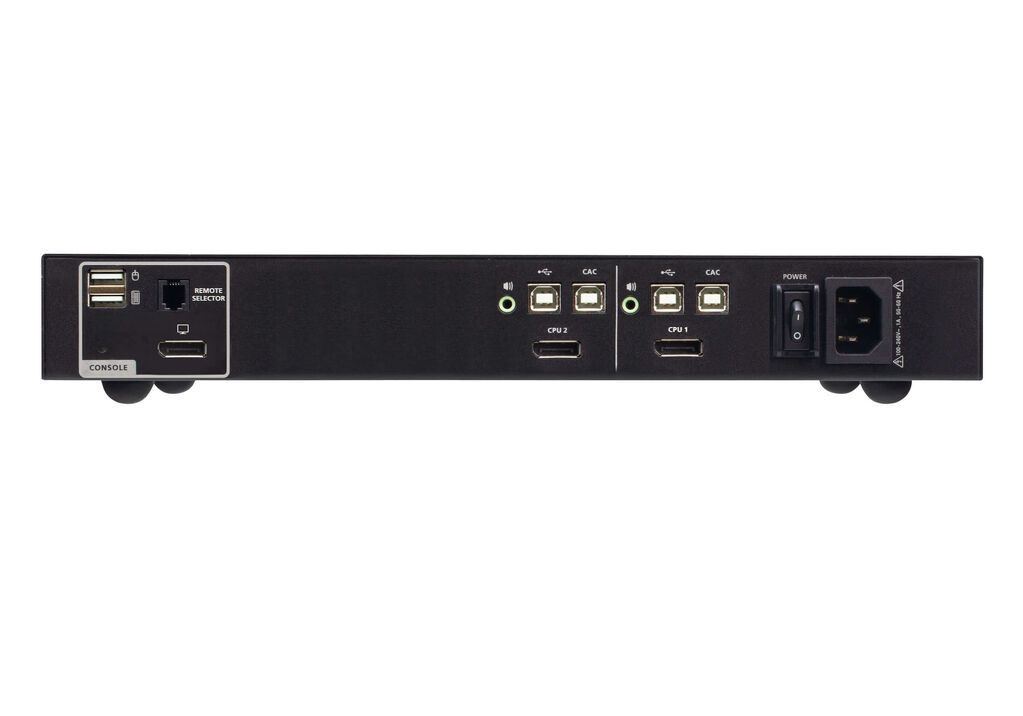

Connectors
Console Ports 1 x DisplayPort Female (Black)
2 x USB Type-A Female (White)
1 x Mini Stereo Jack Female (Green; front panel)
KVM Ports 4 x USB Type-B Female (White)
2 x DisplayPort Female (Black)
2 x Mini Stereo Jack Female (Green)
Power 1 x 3-prong AC Socket
USB CAC Port 1 x USB Type-A Female (White; front panel)
Remote Port Selector 1 x RJ-11 (Black; rear panel)
Switches
Port Selection 2 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker
LEDs
Power 1 (Green)
Online / Selected (KVM Port) 2 (Orange)
Online / Selected (CAC Port) 2 (Green)
Video 1 (Green)
Key Lock 3 (Green)
Emulation
Keyboard / Mouse USB
Video Max. 3840 x 2160 @ 30 Hz (UHD)
Maximum Input Power Rating 100–240V~; 50-60 Hz; 1A
Power Consumption AC110V:6.46W:56BTU/h
AC220V:6.68W:57BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.76 kg ( 3.88 lb )
Dimensions (L x W x H) 33.50 x 16.39 x 4.40 cm
(13.19 x 6.45 x 1.73 in.)
SKU CS1182DP4C-Acc-R
Barcode # 601527946538
Brand ATEN
Brand ATEN
Type KVM Switch
Model CS1182DP4C
Shipping Cubic 0.017794000m3
