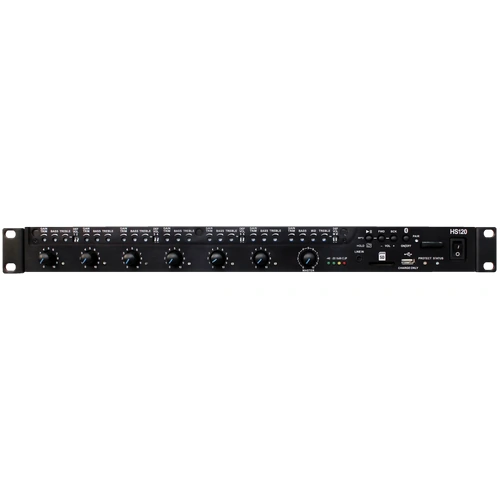

The HS series is Australian Monitor’s next generation of Class D mixer amplifiers, delivering high quality audio reinforcement with the power you need – 60, 120 and 250 watt options, all in a one rack unit package.

Our new amplifiers are fully featured, offering 7 external and 2 internal audio input channels, each channel offering individual channel volume control, equalizer and gain control. An inbuilt user-customizable tone generator, MP3 player, Bluetooth® module, 3.5mm jack and USB charger are included as standard in all models.

The HS series has been designed with all of the features and power to suit a vast range of installations, from the boardroom to the classroom, school hall to bar, restaurant or function space.

Features

  • 60W Class D amplifier stage
  • 4 Ohm / 70V and 100V outputs
  • 9 audio input channels. 6 rear & 3.5mm Jack, Bluetooth® and MP3
  • Individual gain/equalisation control on all external audio inputs
  • Priority mute control on channels 1-3, with level and time release control
  • Magnetic cover for customer concealed eq and gain controls
  • Embedded tone generator for bell/alert/evac/chime/ intruder plus 11 fully customisable user tones
  • Embedded MP3 player via onboard SD card socket supporting random, sequenced and single playback
  • Bluetooth® 3.0+EDR audio receiver supporting advanced audio distribution profile (A2DP)
  • Tamper-proof channel attenuation by disabling external volume controls

(HS60-R)

AMPLIFIER

TOPOLOGY Class-D
CHANNELS 1
CONTINUOUS MAX POWER OUTPUT 60W
FREQUENCY RESPONSE 4Ω 20Hz - 20kHz
FREQUENCY RESPONSE 100V 100Hz - 16kHz
SIGNAL TO NOISE RATIO > 75 dBr
THD+N. 4Ω, 8Ω. 1KHZ < 0.2%
THD+N. 100V. 1KHZ < 0.3%
OVERLOAD PROTECTION Temperature, Over/Under Voltage, Short

PRE-AMPLIFIER

EXTERNAL AUDIO INPUTS 3 XLR/RCA Inputs with MIC/LINE level control, 3 Euro/RCA Inputs with MIC/LINE level control, 3.5mm front panel audio jack
INTERNAL AUDIO INPUTS Bluetooth® Audio Input, MP3 Player input
PRE-AMPLIFIER OUTPUTS Line Output (Euroblock), Record Output (RCA
CHANNEL EQUALISER 100Hz ±12dB, 10kHz ±12dB
MASTER EQUALISER 100Hz ±12dB, 1600Hz ±12dB, 10kHz ±12dB

PERIPHERALS

TONE GENERATOR 5 default tones + 11 user customisable tones
BLUETOOTH Bluetooth 3.0 + EDR supporting A2DP profile
MP3/WAV PLAYER Embedded MP3/WAV player
SUPPORTED MODES Individual Track, Random, Play1 random, Sequence
SUPPORTED FILE FORMATS MPEG-1 Audio Layer III support – Full bit rate support. CBR, ABR, VBR WAV – 16 or 24 bit – 32kHz, 44.1kHz, 48kHz
ADDITIONAL FEATURES 12V Phantom power on input channels 1-6
Priority control on Ch1-3 with level and release time control
Remote volume control via optional RC2-LOG volume controller

MISCELLANEOUS

AC INPUT 100-240Vac, 50-60Hz
AC POWER FACTOR N/A
MOUNTING 1 RU
DIMENSIONS (W X D X H) 438 x 306 x 44mm (17.24” x 12.05” x 1.73”)
NET WEIGHT 4.9 Kg (10.80 lbs)
OPERATING TEMPERATURE 0°C to 40°C (95% RH)
COOLING SYSTEM Convection
COLOUR Black



SKU HS60-R
Barcode # 615678886568
Brand Australian Monitor
Brand Australian Monitor
Type Mixer Amplifier
Model HS60
Playable Media Format SD Card, Bluetooth
Shipping Cubic 0.006480000m3
Unit Of Measure ea
