Used Item

Tested to Power On ONLY

The Australian Monitor AMD4200P is a 1RU four channel power amplifier of class-D design. The Australian Monitor AMD4200P delivers 200 watts per channel into 100 volt, 70 volt or 4 ohms.

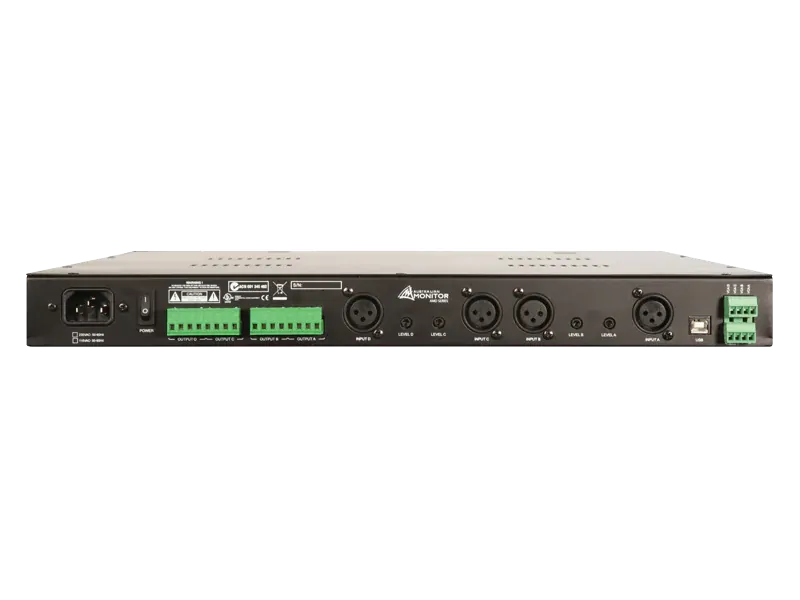

The AMD4200P features front panel signal presence and fault indication per channel, rear panel volume controls, remote master VCA per channel, low power contact closure and RS232 port for control via a third party control system.

An Ethernet port provides PC connectivity for use with the supplied software application, remote control and status monitoring.

Input cross mix level, channel input mix mute, channel output level and mute, standby state and amplifier fault indication can all be controlled via the RS232 or Ethernet port. The provided inbuilt DSP processor provides a Crossover/ EQ section, along with a Delay and Dynamics / Compression processor for each of the channels.

Features

  • 1 RU, class-D design
  • 4 x 200 watts @ 100 volt, 70 volt, and 4 ohms

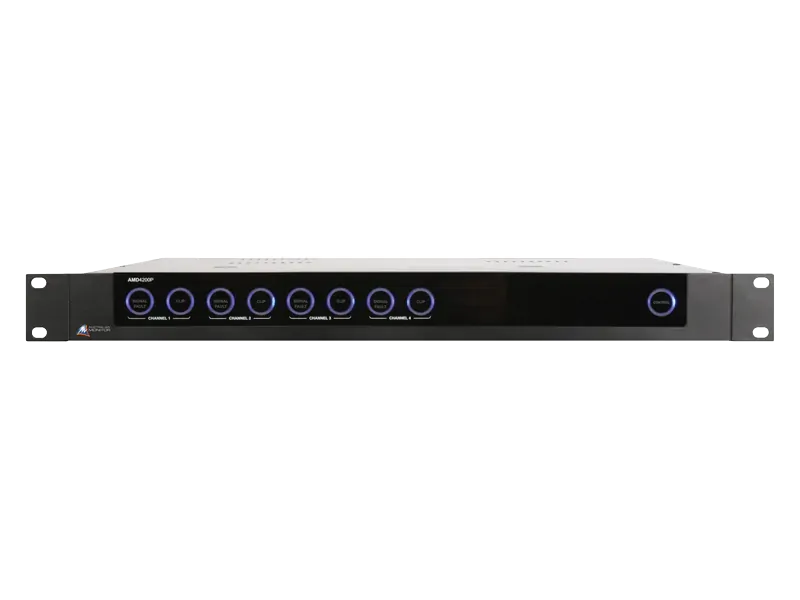

  • Signal present and fault indication per channel on front panel
  • VCA master control per channel
  • Low power standby mode contact closure
  • RS232 controllable
  • Ethernet control port
  • Built in DSP processor
  • 24 volt operable

(AM-AMD4200P-R)

Frequency Response | 70 Hz - 20 kHz, ±3 dB | Signal Input 2 dB below clip

Total Harmonic Distortion | < 0.6 dB | Signal input 2 dB below clip

Input Impedance | 11 kOhms

Normal Input | +1 dBu

Crosstalk Between channels | > 60 dB | 1 kHz, maximum output

S/N Ratio | >100dB | A-weighted, 20 Hz to 20 kHz

Power Output

4 ohms | 200 W | (28.3 Vrms)

70 V | 200 W | (25 Ohms)

100 V | 200 W | (50 Ohms)

Power Consumption

Standby | 13 W

Idle | 30 W

1/8th Power | 160 W

1/3rd Power | 364 W

Thermal Dissipation

Standby | 13 W (44.36 Btu/Hr)

Idle | 30 W (102.36 Btu/Hr)

1/8 power | 135 W (460.62 Btu/Hr)

1/3 power | 297 W (1014.50 Btu/Hr)

Power Input | AC: 110-120 V 60Hz / 220-240 V 50Hz | Factory Configured | 24 VDC battery back up

Recommended Operating Temp | 10° C to 45° C (50° F to 113° F)

Recommended Operating Humidity | 5 % to 95 % non condensing

Dimensions (W x D x H) | 433 x 442 x 45.6 mm (17.0” x 17.4” x 1.7”) | Not including rack ears or rear panel connectors

Weight

Net 16kg (35.2lb)

Shipping 19kg (41.8lb)

SKU AM-AMD4200P-R
Barcode # 601527569317
Brand Australian Monitor
Brand Australian Monitor
Type Power Amplifier
Model AMD4200P
Shipping Cubic 0.017794000m3
