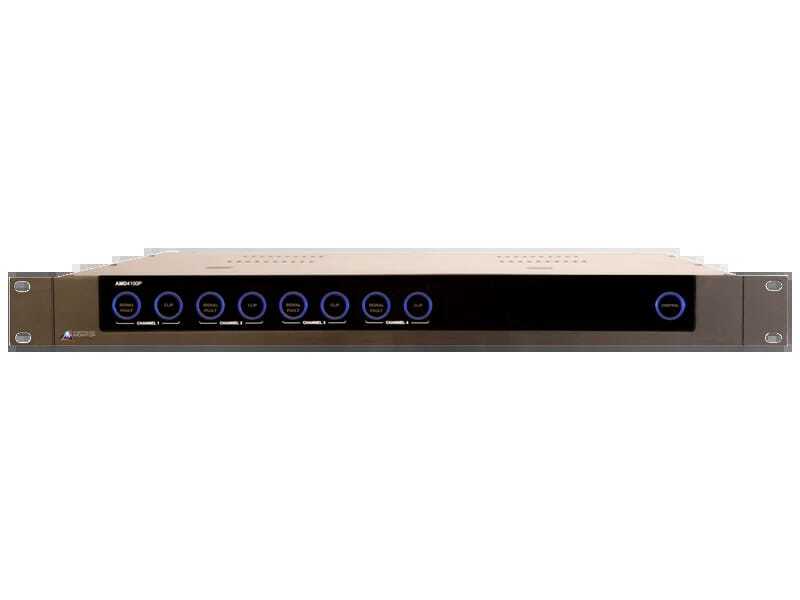

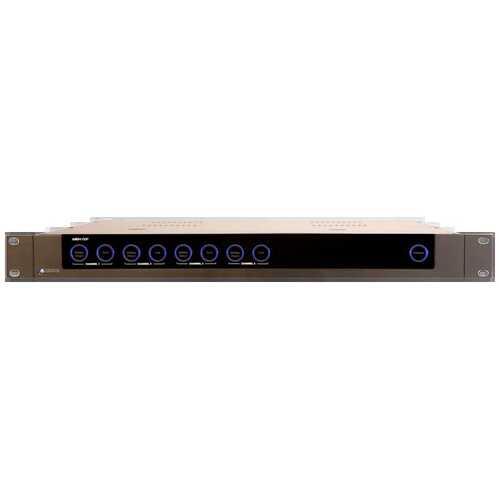

The Australian Monitor AMP series of Class D power amplifiers deliver high quality audio reinforcement in a low cost, one rack unit package. Available in two or four channels with 100 or 200 watts output power, each model offers mono or bridge mode operation, limiter and VCA attenuation. The power amplifiers are a highly efficient class D architecture allowing for reduced thermal dissipation and mechanical size. The AMP series power amplifiers give the audio contractor a reliable amplifier for applications that are price sensitive yet still require high quality commercial sound reinforcement.

Features:

  • AM21P – 2x100W
  • 4Ω / 70V and 100V outputs
  • Mono or Bridge mode operation
  • Balanced phoenix inputs
  • Individual channel level controls
  • Voltage controlled input attenuation (VCA)
  • Clip and Protection indicators
  • Clip/Thermal and Under/Over Voltage protection
  • Fan cooled
  • Universal switchmode PSU with PFC
  • 1 RU rack mount size

(AM-AM21P-BGrade)

Model AM21P
Topology Class-D
Power Output (per channel) Single Channel 4Ω 120W
4Ω (All Driven) 110W
Bridged 8Ω 230W
Single Channel 100V 120W
100V (All Driven) 110W
Frequency Response 4Ω 20Hz - 25kHz
Frequency Response 100V 100Hz - 16kHz
Signal to Noise Ratio > 95 dBr
THD+N. 4Ω, 8Ω. 1kHz < 0.2%
THD+N. 100V. 1kHz < 0.3%
Input Connectors Two 1x3 terminal plug (3.81mm)
Output Connectors 6 pin Screw Terminal per channel
AC Input 100-240Vac, 50-60Hz
Dimensions (W x D x H) 483mm x 448mm x 44mm
(19” x 17.63” x 1.73”)
Net Weight 7.4 Kg (16.31 lbs)
Mounting 1 RU
Colour Black



SKU AM-AM21P-BGrade
Barcode # 615678607057
Brand Australian Monitor
Brand Australian Monitor
Type Power Amplifier
Colour Black
Model AM21P
Number of Channels 2
Power 110W, 230W Bridged 8Ω
Supported Modes 4-ohm, 70V, and 100V output modes
Shipping Cubic 0.017794000m3
