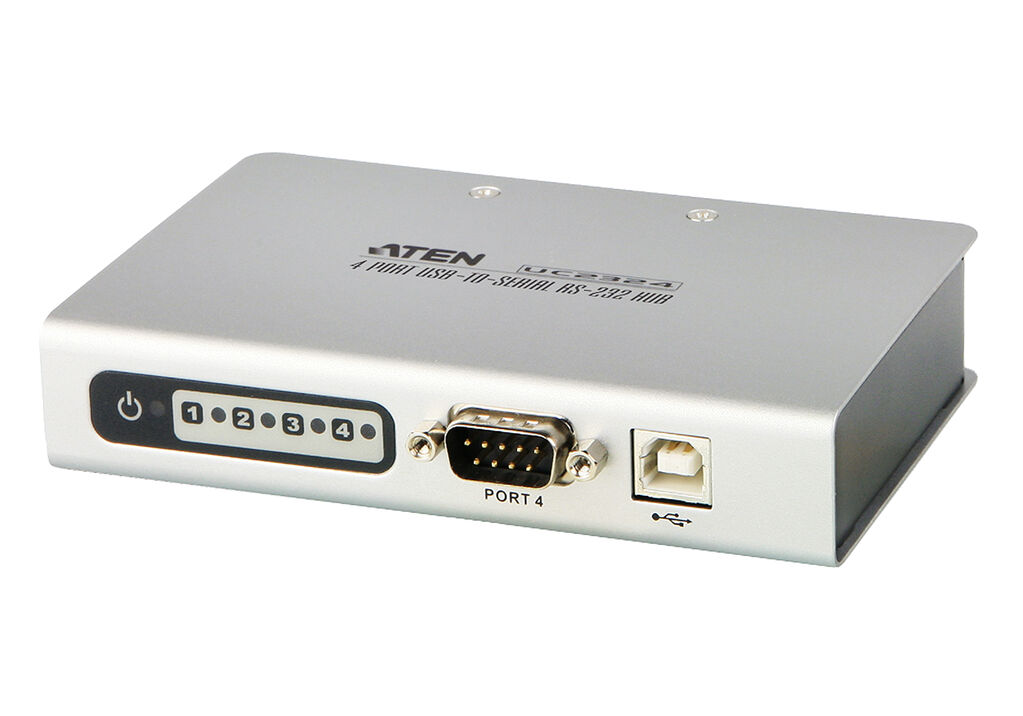

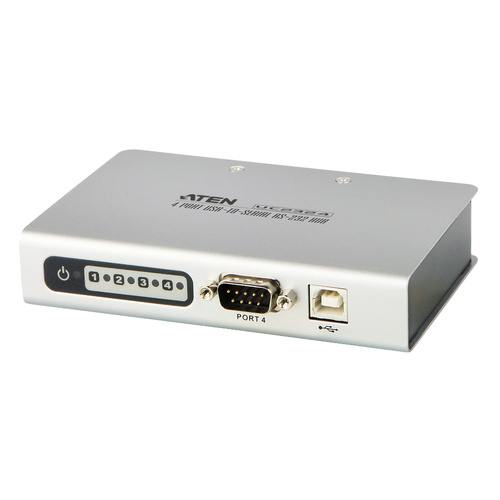

The ATEN USB-to-Serial RS-232 Hub provides an external plug-and-play RS-232 serial connection for computers, notebooks, laptops, and handheld computing devices that support the USB specification. It provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications.

  • Easy way to add 4 RS-232 serial ports
  • Fully compliant with USB 1.1; USB 2.0 compatible
  • Supports RS-232 serial interface
  • Supports automatic handshake mode
  • Up to 115.2 Kbps data transfer rate for each serial port
  • Dual data buffers for each upstream and downstream data transfer
  • No IRQ, DMA, I/O address resources required
  • Supports hot-swapping and plug-and-play
  • Built-in 16KV ESD protection
  • Supports both bus power and external power
  • Works with cellular phones, PDAs, digital cameras, modems and ISDN terminal adapters
  • OS support - Windows 2000/2003/XP/NT



(AtenUC2324-OB)

Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack

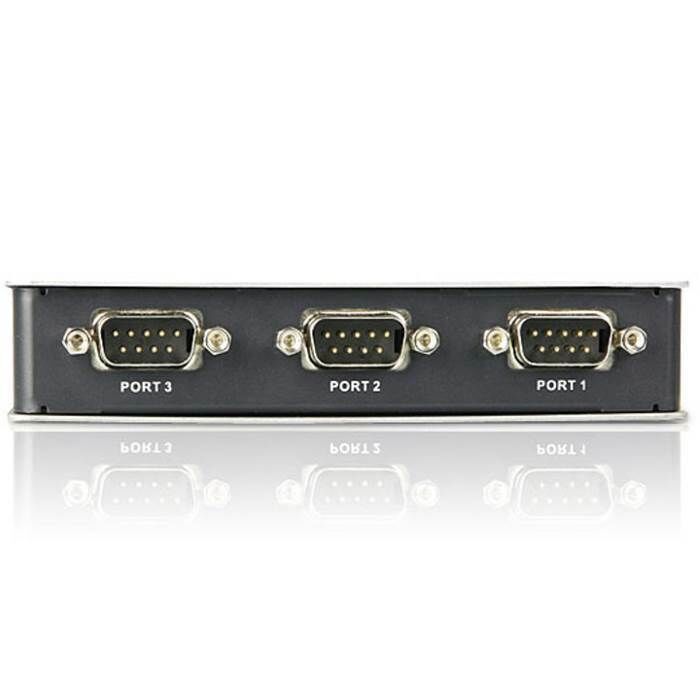

Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 921.6 Kbps (max.)

Note: For products manufactured before 2023, the data transfer rate (baud rate) is limited to 115.2 Kbps.
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.4W:2BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–50˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm
(4.92 x 3.15 x 0.98 in.)
SKU AtenUC2324-OB
Barcode # 615678703827
Brand ATEN
Brand ATEN
Type USB to Serial Hub
Model UC2324
Shipping Cubic 0.001000000m3
