ASUS-branded motherboards delivers the highest standards of innovation, performance, and reliability. All ASUS, ROG, TUF, and WS Z87 motherboards launch following a strict validation process that guarantees the best quality and compatibility in the industry.

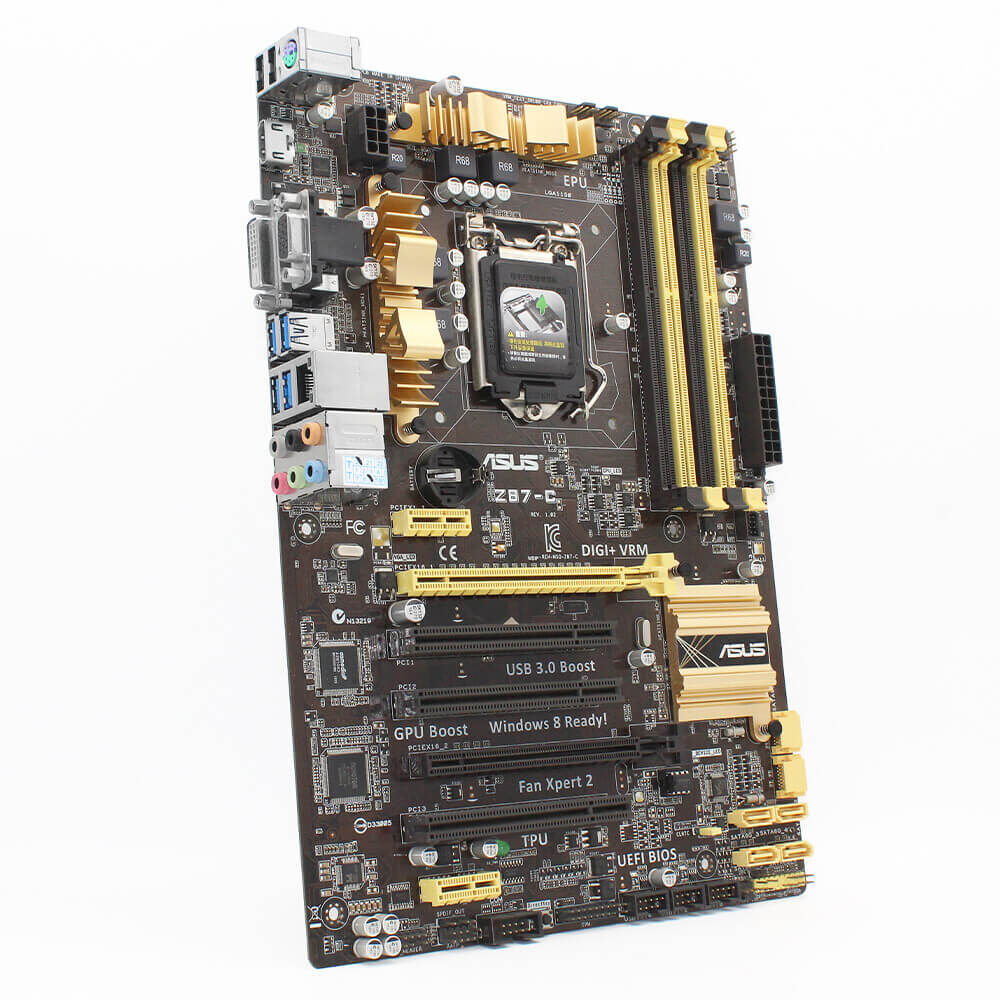

The ASUS Z87-C features digital power design for higher power efficiency, greater performance, and rock-solid stability. USB 3.0 Boost technology lets you to enjoy high data speeds. Thanks to the Windows 8 support, users can experience the next-generation operating system on ASUS hardware. Hardware-level ASUS Fan Xpert 2 allows you to achieve the best balance of cooling performance and low noise.

  • Dual Intelligent Processors 2 with DIGI+ VRM - The Standard in Digital Power Design
  • ASUS USB 3.0 Boost - Lightning Fast Transfer Speeds!
  • ASUS Fax Xpert 2 - Optimizes the Speed of All Fans for the Ultimate Cool and Quiet
  • ASUS GPU Boost - Go to the Limit with iGPU Level Up!

(AsusZ87-C-R)

CPU LGA1150 socket for 4th Generation Intel® Core™ i7/ i5/ i3/Pentium®/Celeron® Processors
Supports 22nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel® Z87 Express Chipset
Memory 4 x DIMM, max. 32GB, DDR3 2800(O.C.)*/2666(O.C.)*/2600(O.C.)*/2500(O.C.)*/2400(O.C.)*/2200(O.C.)*/2133(O.C.)*/2000(O.C.)*/1866(O.C.)*/1800(O.C.)*/1600/1333 MHz, non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details.
VGA Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: D-Sub/DVI/HDMI port
Supports HDMI with max. resolution 4096x2304@24Hz / 2560x1600@60Hz
Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™
Supports up to 3 displays simultaneously
Maximum shared memory of 1024MB
Expansion Slots 1 x PCI Express 3.0 x16 slot
1 x PCI Express 2.0 x16 slot* (max. at x4 mode, compatible with PCIe x1 and x4 devices)
2 x PCI Express 2.0 x1 slots
3 x PCI slots
*The PCIe 2.0 x16 slot shares bandwidth with PCIe 2.0 x1_1 slot, and PCIe 2.0 x1_2 slot. The PCIe 2.0 x16 slot default setting is in x2 mode.
Multi-GPU support Supports AMD® Quad-GPU CrossFireX™ Technology
Storage Intel® Z87 Express Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 12.0 support
 - 6 x SATA 6.0 Gb/s ports (yellow)
 - Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology*
* These functions will work depending on the CPU installed.
LAN Realtek® 8111GR Gigabit LAN controller
Audio Realtek® ALC892 8-channel high definition audio CODEC
 - Supports jack-detection, multi-streaming, front panel jack-retasking
 - Absolute Pitch 192khz/24bit true BD lossless sound
 - BD audio layer content protection
USB Intel® Z87 Express Chipset- supports ASUS USB 3.0 Boost Turbo Mode
 - 2 x USB 3.0/2.0 ports at mid-board for front panel support
 - 4 x USB 3.0/2.0 ports at back panel(blue)
 - 8 x USB 2.0/1.1 ports (6 ports at mid-board, 2 ports at back panel)
Back I/O Ports 1 x HDMI port
1 x D-Sub port
1 x DVI-D port
1 x LAN (RJ45) ports
4 x USB 3.0/2.0 ports (blue)
2 x USB 2.0/1.1 ports
8-channel Audio I/O ports
Internal I/O Ports 1 x USB 3.0/2.0 connector supports additional 2 USB ports (19-pin)
3 x USB 2.0/1.1 connectors support additional 6 USB ports
6 x SATA 6.0Gb/s connectors (yellow)
1 x 4-pin CPU Fan connector supports both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control
1 x CPU OPT Fan connector (4-pin)
3 x Chassis Fan connectors (4-pin)
1x Front panel audio connector (AAFP)
1 x S/PDIF out header
1 x TPM connector
1x 24-pin EATX Power connector
1x 8-pin EATX 12V Power connector
1x System Panel
1 x Clear CMOS jumper
1 x DirectKey button
1 x DRCT (DirectKey) connector
1 x COM port
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2,  ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions,  and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 2.7, WOL by PME, PXE
Form Factor ATX Form Factor, 12”x 8.4” (30.5cm x 21.4cm)
SKU AsusZ87-C-R
Barcode # 615678940758
Brand Asus
Brand ASUS

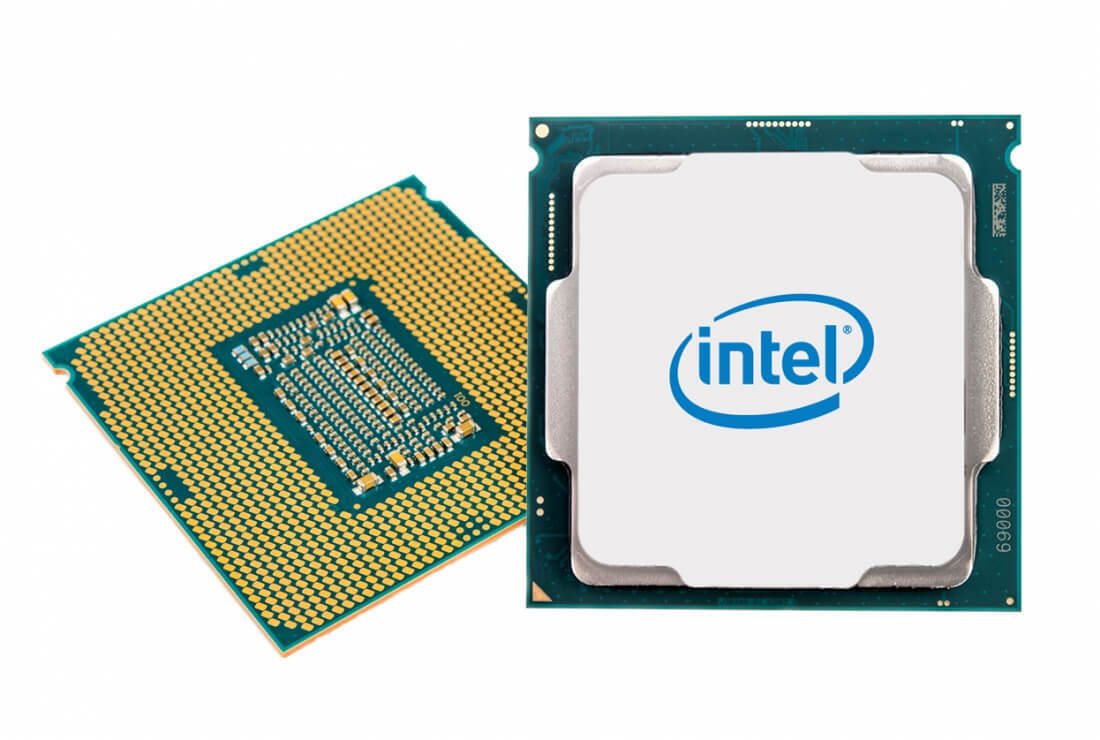

Processor model Intel Core i7 4770
Form Factor ATX
Model ASUS Z87-C
Processor Type Core i7 4th Gen.
Number of Cores 4
Socket Type LGA 1150
Clock Speed 3.40 GHz
Shipping Cubic 0.017794000m3
