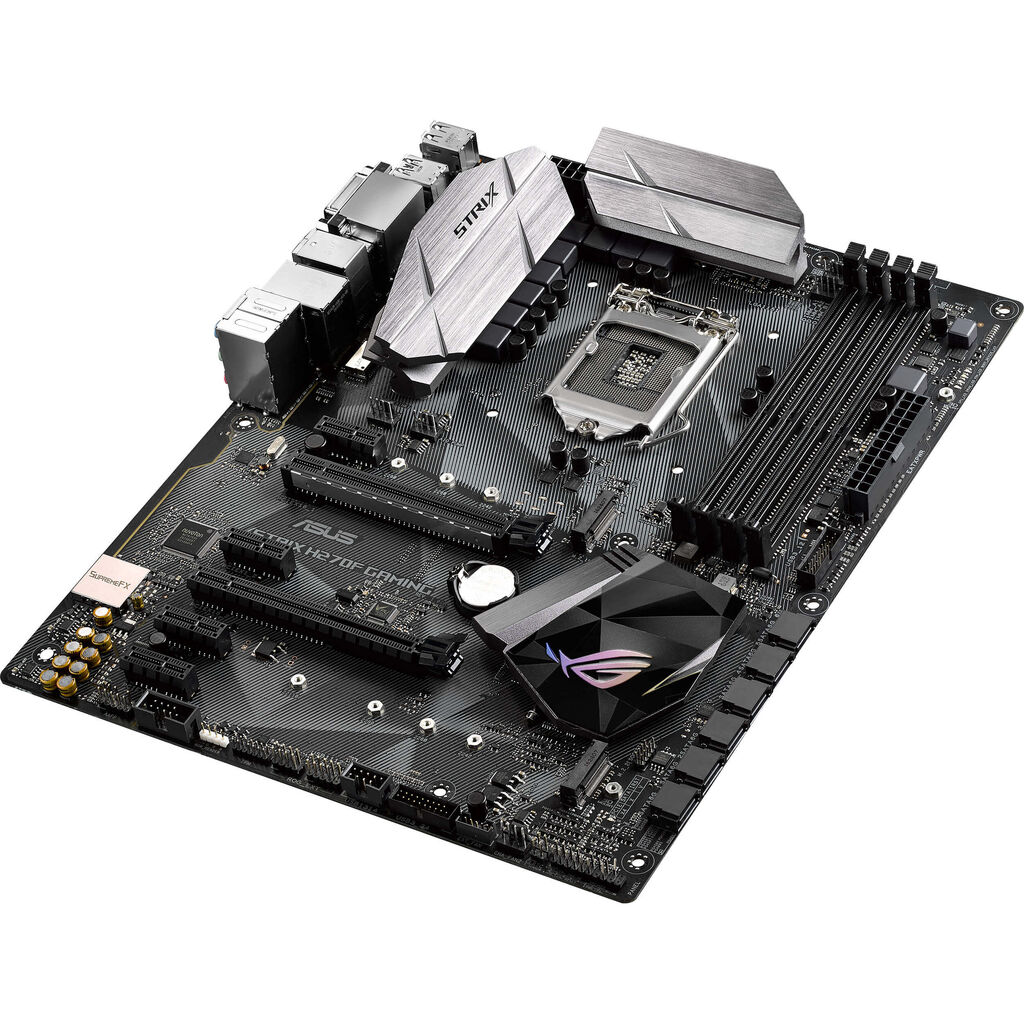

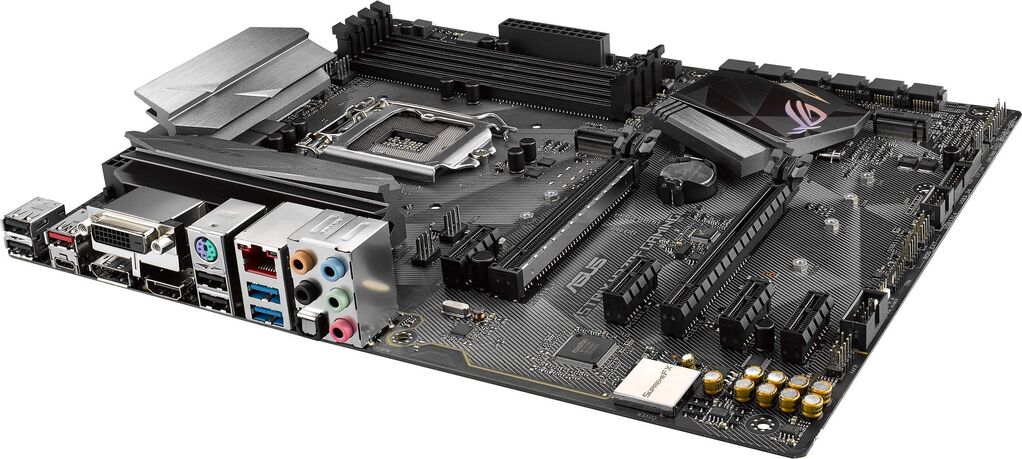

Intel LGA-1151 ATX H270 gaming motherboard with Aura Sync RGB LED, Intel Gigabit LAN, DDR4 2400MHz, dual M.2, SATA 6Gb/s, and USB 3.1 Type-C

  • The successor to Pro Gaming motherboards
  • Aura Sync RGB LED lighting technology for ultimate customizability
  • 3D-printing-friendly design — Dedicated 3D mounts makes fitting 3D-printed parts easy
  • ROG SupremeFX audio — Renowned audio performance with dual headphone amplifiers, leveled-up Sonic Studio III, and Sonic Radar III
  • Gaming networking — Best-in-class Intel® Gigabit Ethernet, LANGuard, and GameFirst technology
  • Next-gen connectivity — Dual onboard M.2 slots for up to 32Gbps PCIe bandwidth and USB 3.1 Type-C connector
  • Patent-pending ASUS SafeSlot for enhanced PCIe retention and shearing resistance

(AsusStrixH270FGaming-R)

CPU Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset Intel® H270
Memory 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic Maximum shared memory of 1024 MB
Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Integrated Graphics Processor- Intel® HD Graphics support
- Supports HDMI with max. resolution 4096 x 2160 @ 24Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously
Multi-GPU Support Supports AMD 2-Way CrossFireX Technology
Expansion Slots 1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
Storage Intel® H270 Chipset :
Intel® Rapid Storage Technology 15 support
Intel® Optane™  Memory Ready *3
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
LAN Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology
Audio - Sonic Studio III
- Supports up to 32-Bit/192kHz playback *4
ROG SupremeFX8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- SupremeFX Shielding Technology
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
USB Ports Intel® H270 Chipset : *5
ASMedia®  USB 3.1 controller :
2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM, Support 3A power output)
Intel® H270 Chipset :
6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board)
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)

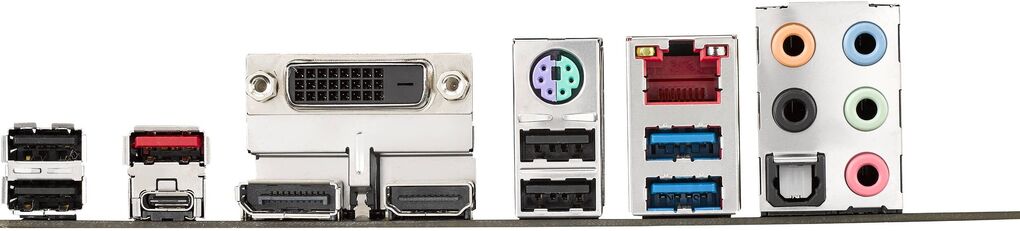

Back I/O Ports 2 x USB 3.1 Type-A + USB Type-CTM
2 x USB 3.1 Gen 1 (blue)
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports 1 x COM port header
1 x AAFP connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x RGB Header(s)
3 x 3D Mount screw port(s)
1 x ROG extension (ROG_EXT) header(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x 14-1 pin TPM connector
1 x T_Sensor Connector
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
OS Support Windows® 8.1 64-bit *6
Windows® 7 32-bit *6
Windows® 7 64-bit *6
Windows® 10 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note *1 The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
*2 The M.2_1 and M.2-2 sockets support Intel Optane Technology.
*3 Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your  motherboard drivers and BIOS to the latest version from ASUS support website.
*4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
*5 2 x USB 2.0 port at mid-board shares with ROG extension (ROG_EXT) port.
*6 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
*7 ROG GameFirst IV is only available for Windows® 10/8.1 64-bit
SKU AsusStrixH270FGaming-R
Barcode # 615678939929
Brand Asus
Brand ASUS

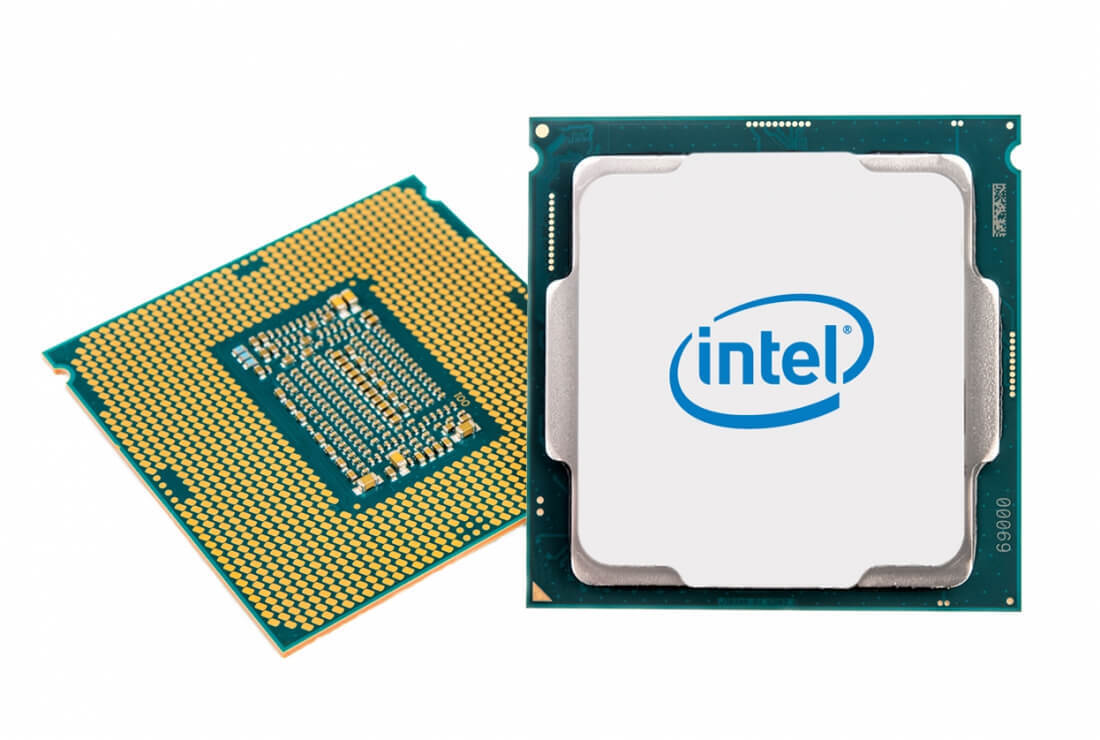

Processor model i5 7500
Form Factor ATX
Model ASUS ROG STRIX H270F GAMING
Socket Type LGA 1151
Shipping Cubic 0.017794000m3
