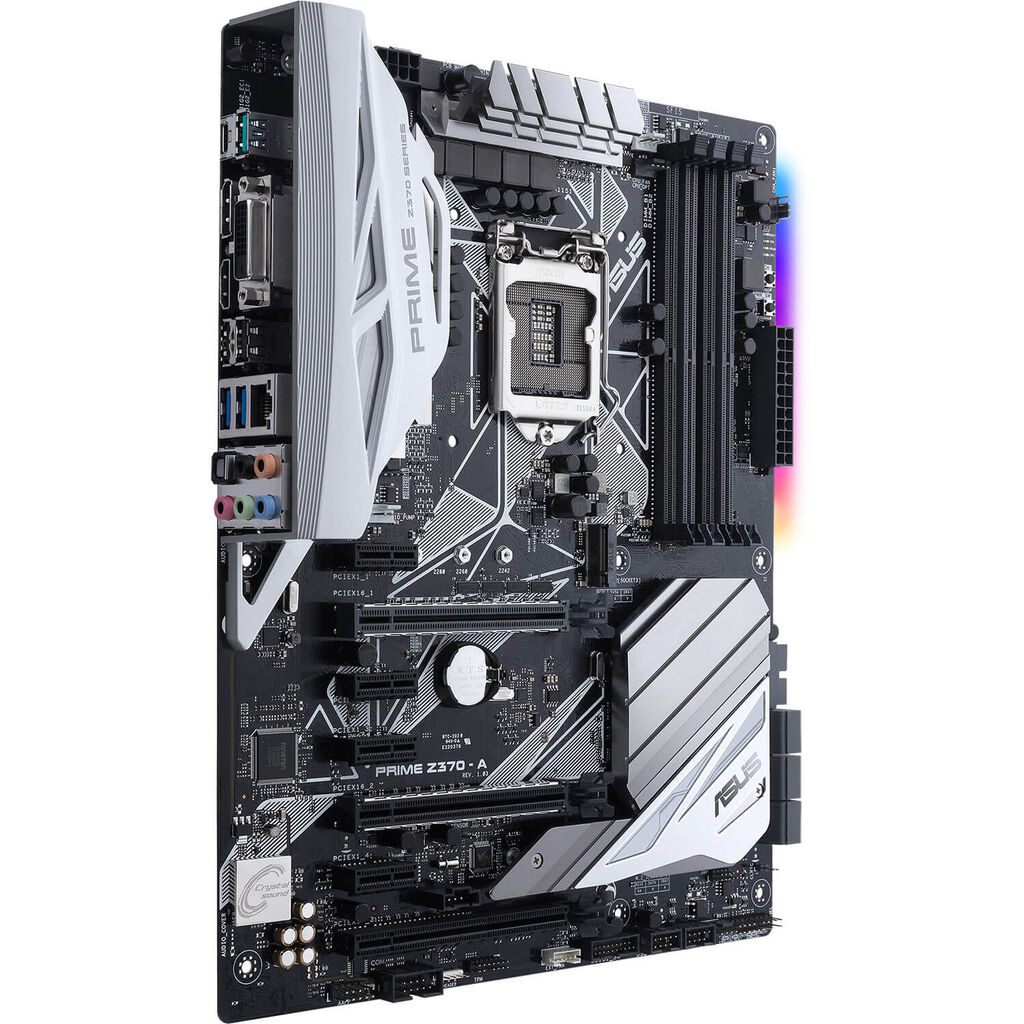

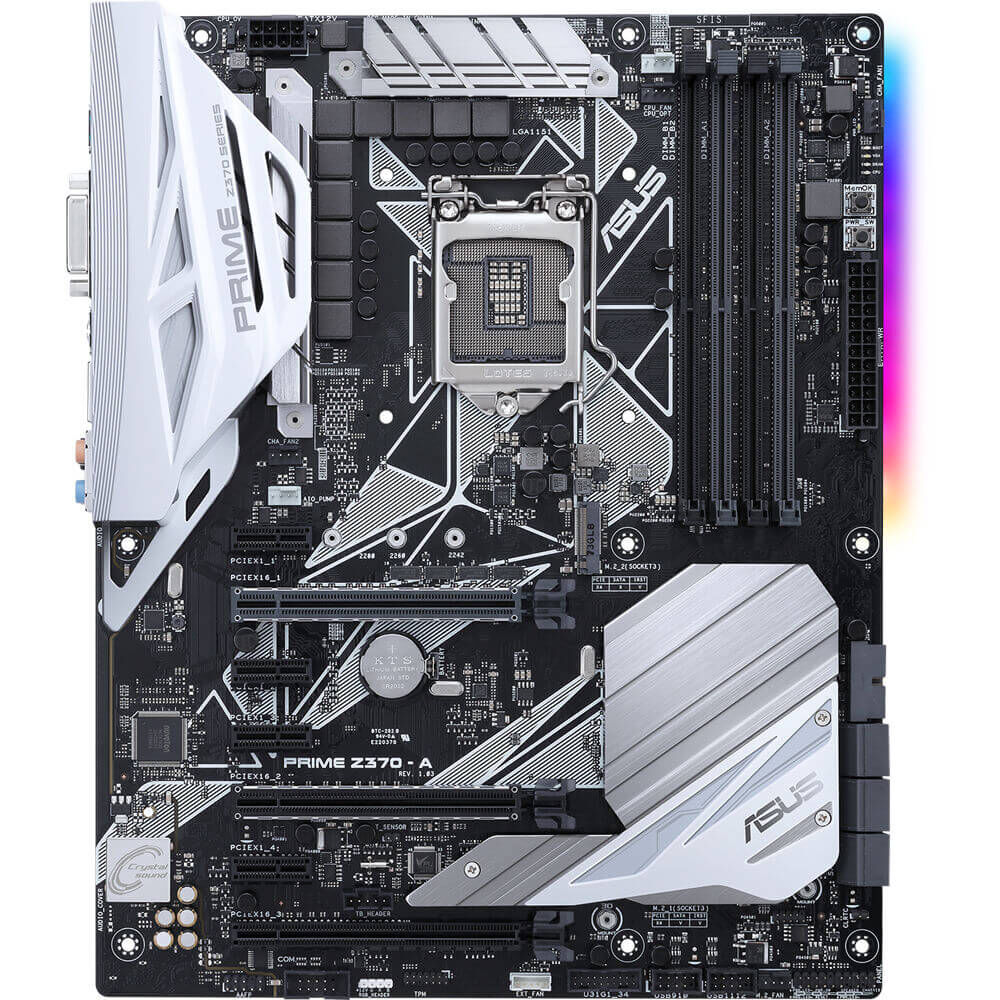

Includes ASUS PRIME Z370-A Motherboard, Intel i7 8700 CPU, 16GB RAM, Rear I/O panel.

Intel LGA 1151 ATX motherboard with M.2 Heatsink, DDR4 4000MHz, Dual M.2, Intel Optane memory ready, SATA 6Gb/s, USB 3.1 Gen 2 Type-C

  • Ready for the latest Intel processors: LGA1151 socket for 8th Generation Intel Core desktop CPUs
  • 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI
  • Next-gen connectivity: Supreme flexibility with Intel Optane memory ready, Thunderbolt 3 and dual M.2 support
  • M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperatures by up to 20°C for unthrottled transfer speeds and enhanced reliability
  • ASUS Aura Sync: Controllable onboard RGB lighting that can be easily synced with an ever-growing portfolio of Aura-capable hardware


(AsusPrimeZ370-A-R)

CPU

Intel® Socket 1151for 8th Generation Core Processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0
* Refer to www.asus.com for CPU support list

Chipset

Intel® Z370

Memory

4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports up to 3 displays simultaneously
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Multi-GPU Support

Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
* For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings
** For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings

Storage

1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*1
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*2
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Supports Intel® Smart Response Technology
Intel® Optane™ Memory Ready

LAN

Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS Turbo LAN Utility
ASUS LAN Guard

Audio

Realtek® S1220A8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120dB SNR stereo playback output and 113dB SNR recording input (Line-in)
- Front panel audio connector (AAFP)
- Supports up to 32-Bit/192kHz playback *3
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- EMI protection cover to prevent electrical noise to affect the amplifier quality,Separate layer for left and right track, ensuring both sound deliver equal quality
- Power pre-regulator: Reduces power input noise to ensure consistent performance

USB Ports

ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A, Support 3A power output)
1 x USB 3.1 Gen 2 port(s) (1 at back panel, , USB Type-CTM, Support 3A power output)
Intel® Z370 Chipset :
6 x USB 3.1 Gen 1 port(s) (2 at back panel, 4 at mid-board)
6 x USB 2.0 port(s) (2 at back panel, 4 at mid-board)

Operating System

Windows® 10 64-bit

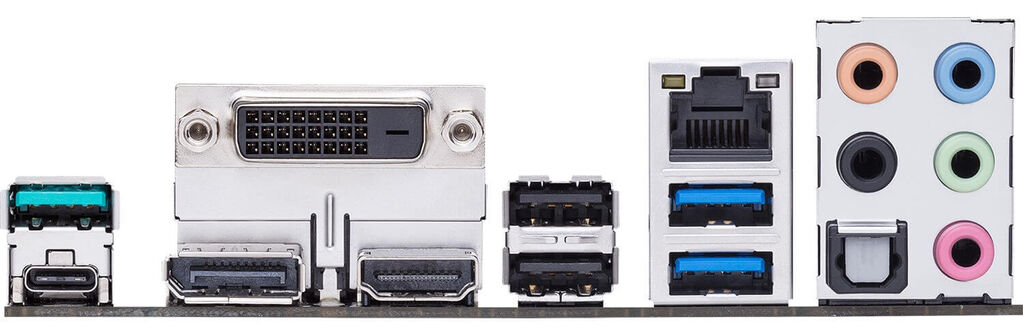

Back I/O Ports 1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 USB Type-CTM
2 x USB 3.1 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports 1 x Aura RGB Strip Header
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x CPU OPT Fan connector(s) (1 x 4-pin)
2 x Chassis Fan connector(s) (2 x 4-pin)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)(Chassis intrusion header is inbuilt)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! button(s)
1 x CPU OV
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x T_Sensor Connector
1 x AIO PUMP Header
2 x 3D Mount screw port(s)
1 x M.2 Fan Header
BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

Manageability

WfM 2.0, DMI 3.0, WOL by PME, PXE

Form Factor

ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Note *1. The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
*2. The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use M.2 PCIE devices in X4 mode.
*3. Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. 32-Bit/192kHz is only available under Windows® 10.
SKU AsusPrimeZ370-A-R
Barcode # 634855295948
Brand Asus
Brand ASUS

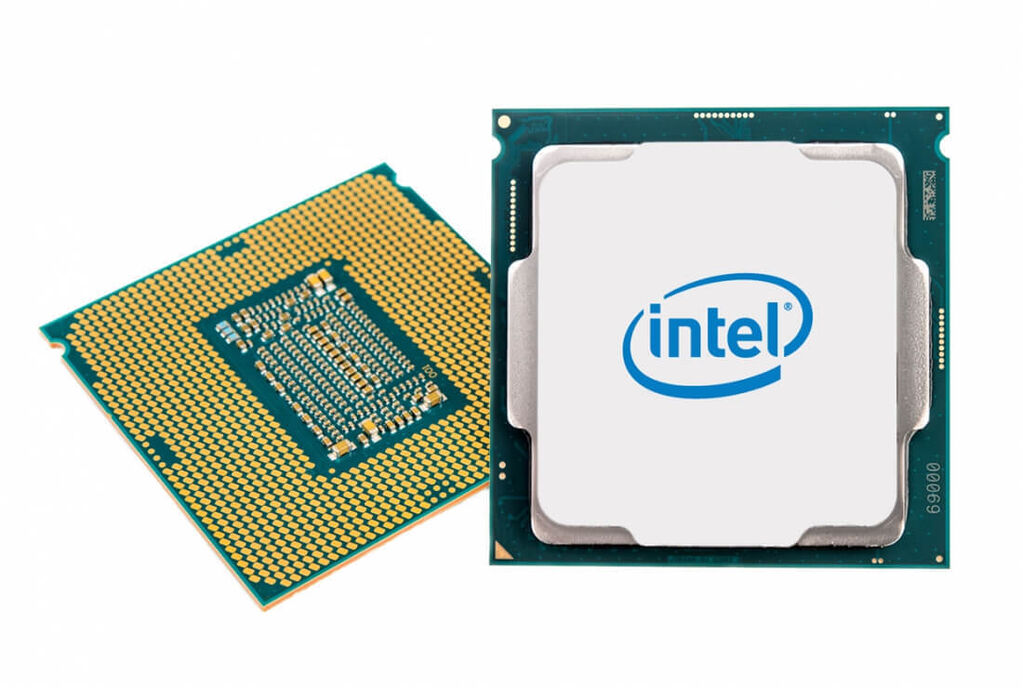

Processor Model Core i7 8700
Form Factor ATX
Model ASUS Prime Z370-A
Processor Type Core i7 8th Gen.
Number of Cores 6
Socket Type LGA 1151
Clock Speed 3.20 GHz
Shipping Cubic 0.017794000m3
