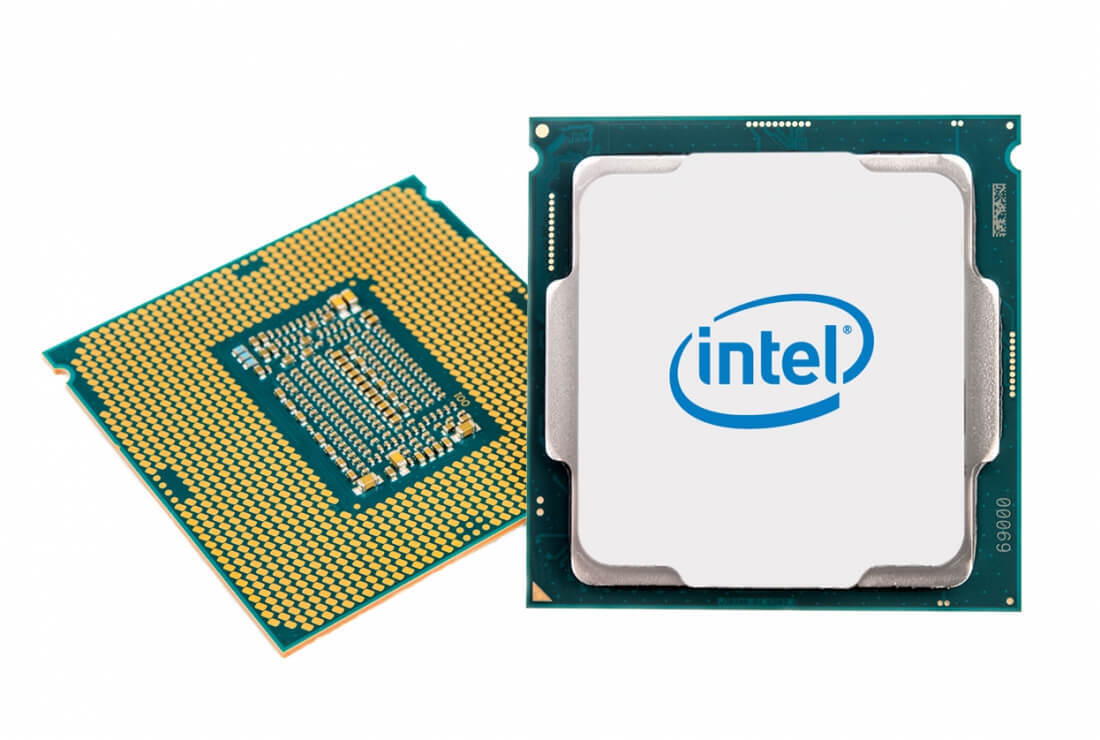

Includes ASUS H110M-K D3 Motherboard, Intel i5 6400 CPU, 16GB DDR3 RAM (2x 4GB), Rear I/O panel.

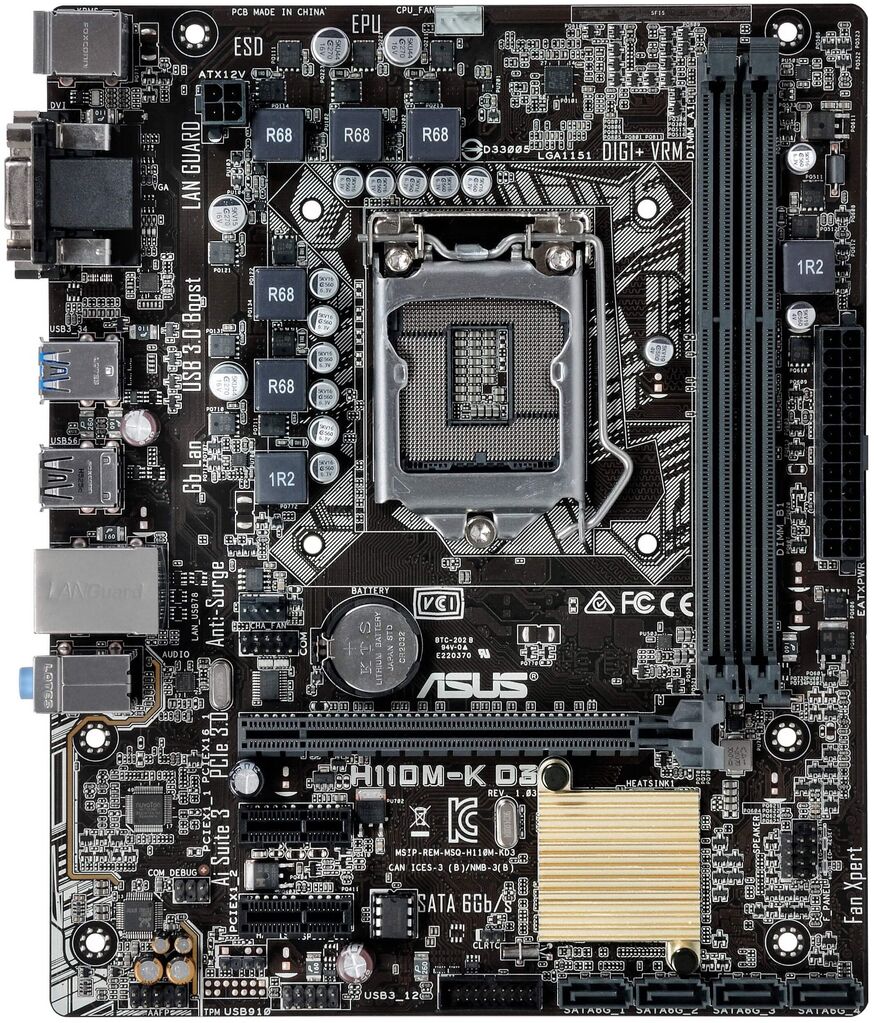

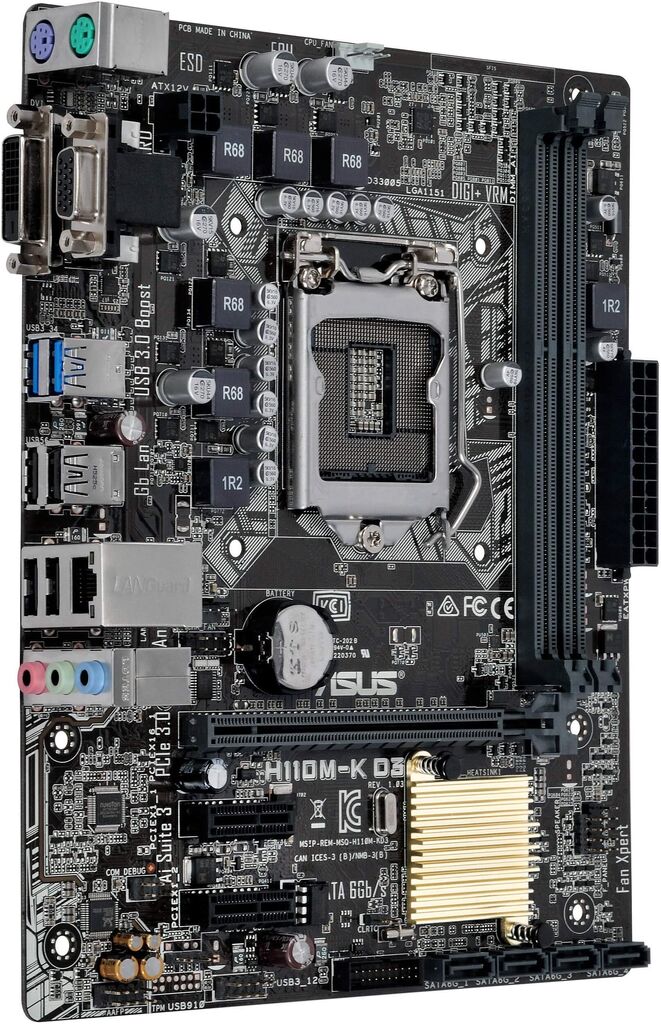

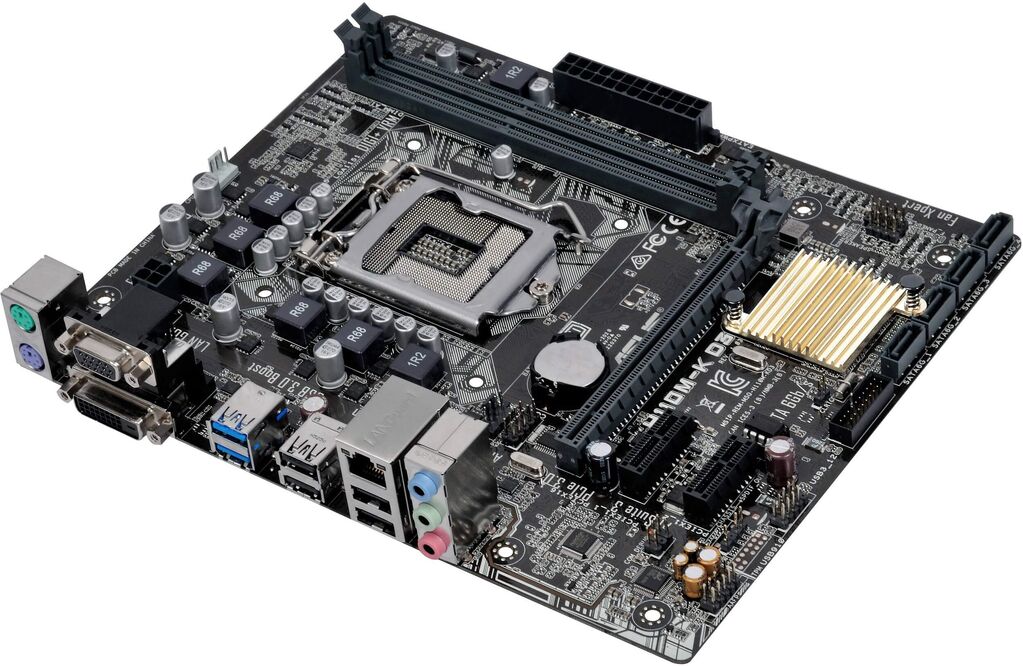

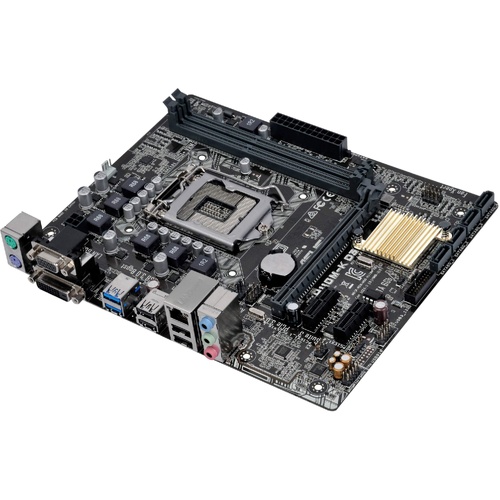

The H110M-K D3 Motherboard from ASUS is designed to fit in cases that support a micro-ATX form factor. The 8.9 x 7.2" H110M-K D3 Motherboard supports 6th Generation (Skylake) Intel Core i7, i5, i3, Pentium, and Celeron processors, the LGA 1151 socket, as well as the Intel H110 chipset. This motherboard supports Windows 10 (64-bit), 8.1 (64-bit), and 7 (64 and 32-bit).



(AsusH110M-K-D3-R)

CPU

- Intel Socket 1151 for 6th Generation Core i7, Core i5, Core i3, Pentium, and Celeron Processors
- Supports Intel 14 nm CPU
- Supports Intel Turbo Boost Technology 2.0

Chipset

Intel H110

Memory

- 2 x DIMM, Max. 32 GB, DDR3 1866 (O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)

Graphics

Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: DVI-D/VGA ports
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1,024 MB
Supports Intel InTru 3D, Intel Quick Sync Video, Intel Clear Video HD Technology, and Intel Insider

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode)
2 x PCIe 2.0 x1

Storage

Intel H110 chipset:
4 x SATA 6 Gb/s ports

LAN

Realtek RTL8111H, 1 x Gigabit LAN Controller

Audio

Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports: Jack-detection, Front Panel Jack-retasking

USB Ports

Intel H110 chipset:
4 x USB 3.0/2.0 ports (2 at the back panel, blue, Type-A, 2 at mid-board)

Intel H110 chipset:
6 x USB 2.0/1.1 ports (4 at the back panel, black, Type-A, 2 at mid-board)

Compatible Operating Systems

Windows 10, 64-bit
Windows 8.1, 64-bit
Windows 7, 32/64-bit

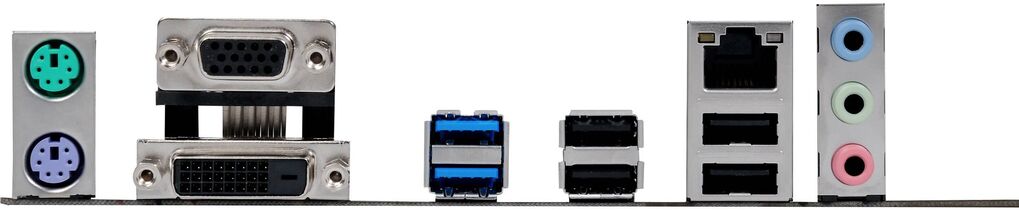

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x VGA/D-Sub
1 x LAN (RJ45) port
2 x USB 3.0 (blue) Type-A
4 x USB 2.0
3 x Audio jacks

Internal I/O Ports

1 x USB 3.0 connector supports an additional 2 USB 3.0 ports
1 x USB 2.0 connector supports an additional 2 USB 2.0 ports
1 x COM port connector
4 x SATA III 6 Gb/s connectors
1 x CPU Fan connector (1 x 4-pin)
1 x Chassis Fan connector (1 x 4-pin)
1 x S/PDIF out header
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12 V Power connector
1 x Front panel audio connector (AAFP)
1 x System panel
1 x Clear CMOS jumper

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 3.0, WOL by PME, PXE

Form Factor

mATX Form Factor
8.9 x 7.2" / 22.6 x 18.3 cm

SKU AsusH110M-K-D3-R
Barcode # 601527933972
Brand Asus
Brand ASUS
Processor Model i5 6400
Form Factor Micro ATX
Model ASUS H110M-K D3
Processor Type Core i5 6th Gen.
Number of Cores 4
Socket Type LGA 1151
Clock Speed 2.70 GHz
Shipping Cubic 0.017794000m3
