Includes ASUS H110M-A/M.2 Motherboard, Intel i5 7400 CPU, 8GB DDR4 RAM (2x 4GB), Rear I/O panel.

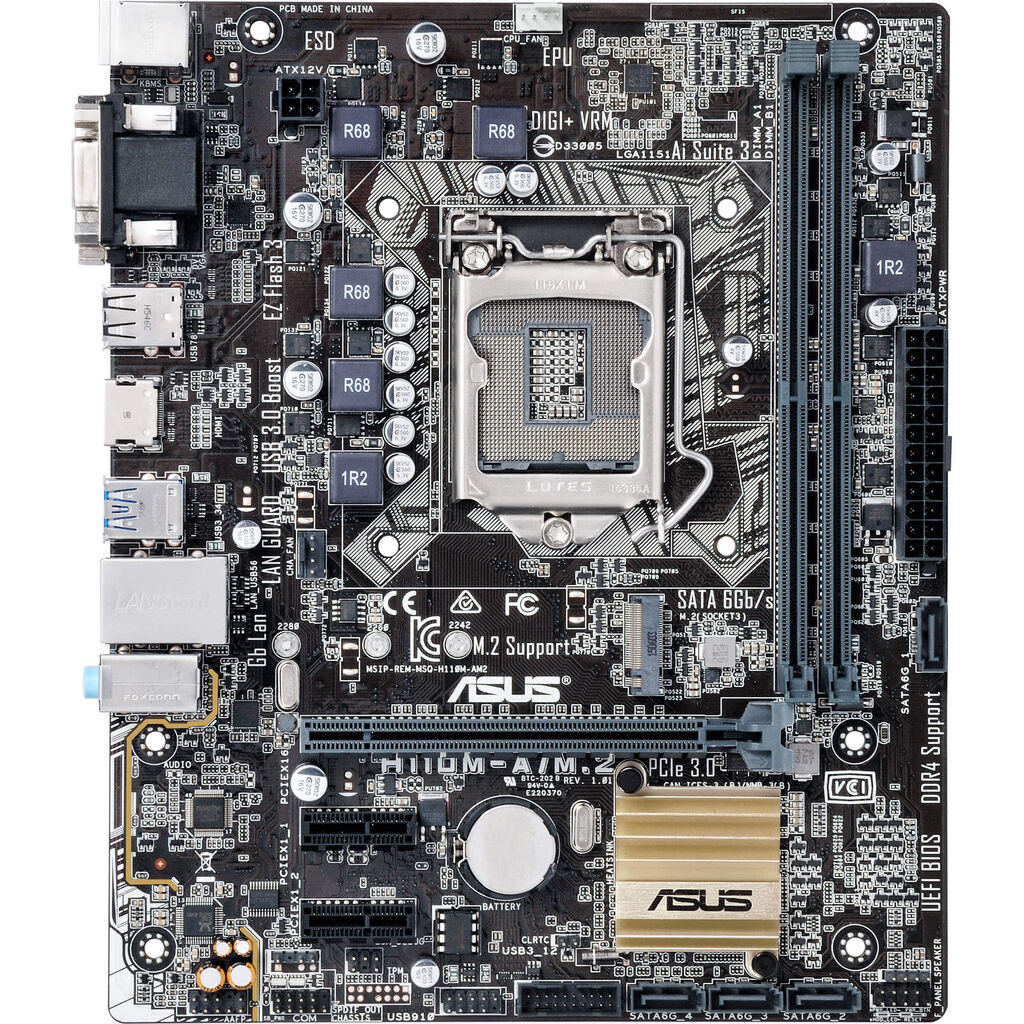

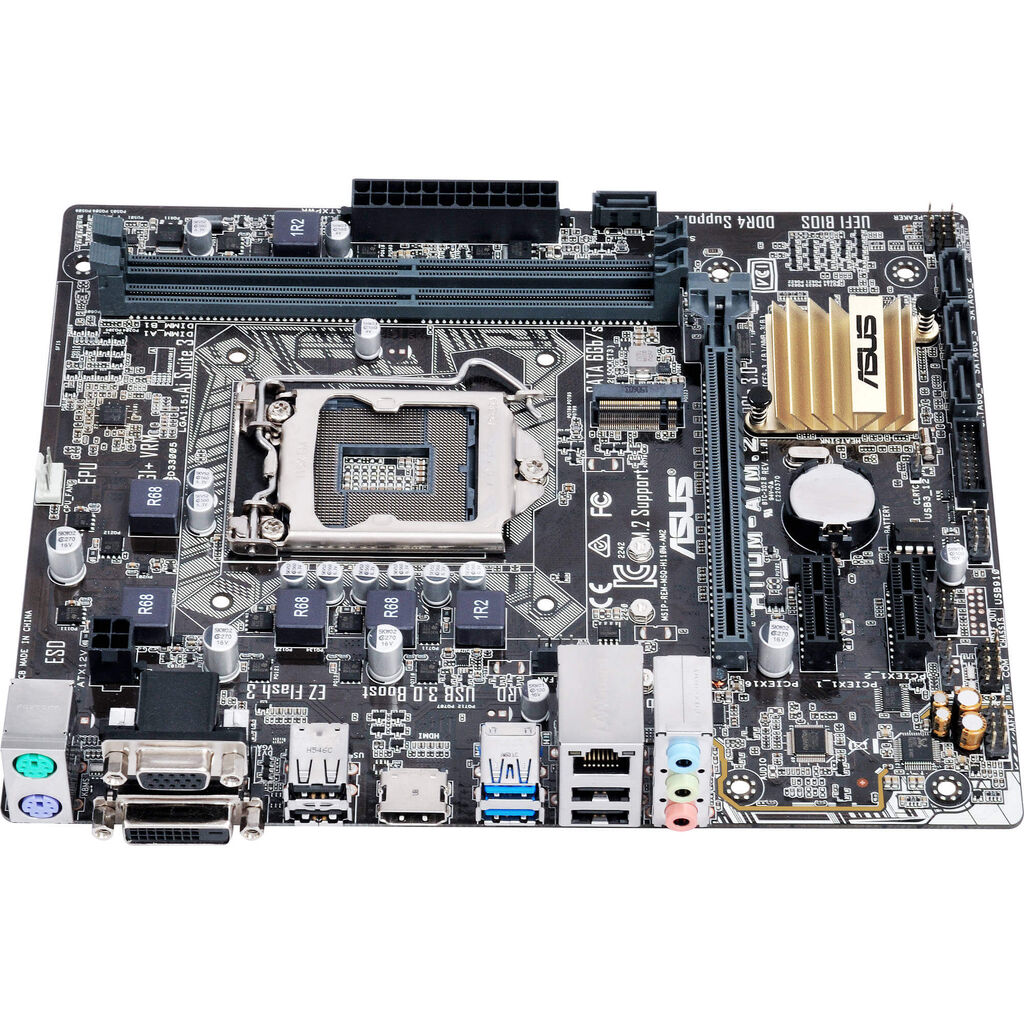

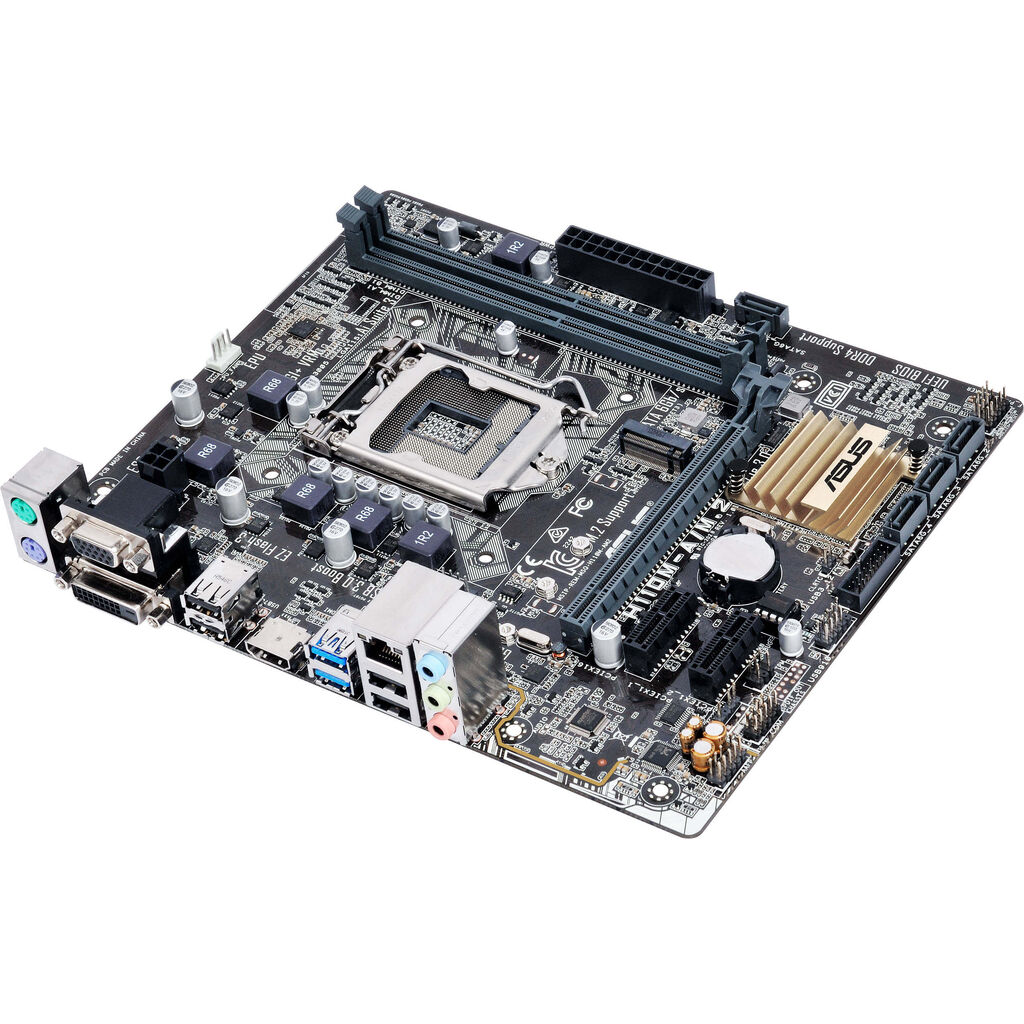

The H110M-A/M.2 LGA 1151 Micro ATX Motherboard from ASUS is designed to fit in cases that support the Micro ATX form factor. The 8.9 x 7.3" H110M-A/M.2 supports 6th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors, the LGA 1151 socket, and the Intel H110 chipset. This motherboard supports Windows 10 (64-bit), 8.1 (64-bit), and 7 (32/64-bit).



(AsusH110M-A-M.2-R)

General

Chipset

Intel H110

CPU Socket

LGA 1151

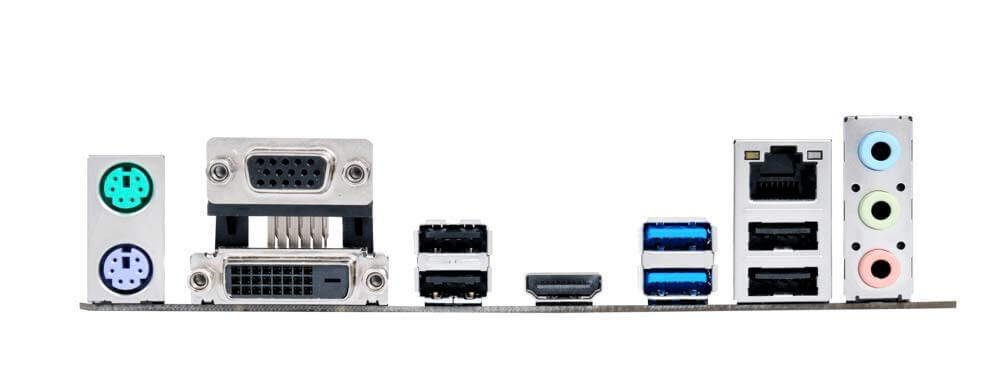

Back Panel I/O

USB

2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)

Display

1x HDMI
1x DVI-D
1x VGA

Audio

3x 1/8" / 3.5 mm

Ethernet / Controller

1x Intel I219V Gigabit

PS/2

2x PS/2

Memory

Memory Slots

2x 288-Pin

Memory Support

DDR4 1866, 2133 MT/s

Maximum Capacity

32 GB

ECC Support

Non-ECC Unbuffered

Storage Expansion

SATA

4x SATA III

Storage Slots

1x M.2 (M Key) 2260, 2280 (SATA III)

U.2

No

RAID Support

No

Internal I/O

Expansion Slots

1x PCIe 3.0 x16
2x PCIe 2.0 x1

USB

1x USB 2.0 Header (Supports 2 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)

Multi-GPU Support

No

Air Cooling

1x 4-Pin CPU
1x 4-Pin System

Power Connectors

1x 24-Pin Mainboard
1x 4-Pin CPU

LED Header

No

Audio

1x S/PDIF

Diagnostics

Clear CMOS

Legacy

1x Serial

BIOS

ROM

128 Mb

Front Panel I/O

Front Panel I/O

AAFP

Audio

Audio Codec

Realtek ALC887 (8-Channel)

Wireless

Wi-Fi

No

Software

Supported Operating Systems

Windows 10 (64-Bit)
Windows 8/8.1 (64-Bit)
Windows 7 (32/64-Bit)

Physical

Form Factor

Micro-ATX

Dimensions

8.9 x 7.3" / 22.6 x 18.5 cm

SKU AsusH110M-A-M.2-R
Barcode # 634855138764
Brand Asus
Brand ASUS

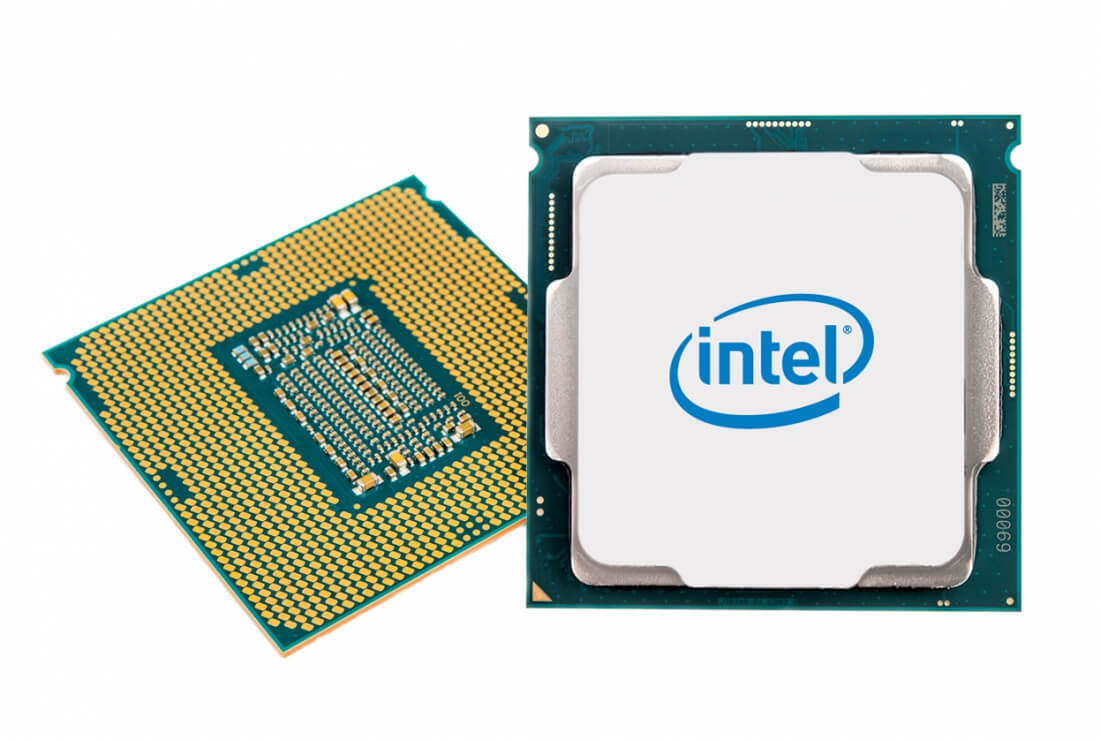

Processor Model i5 7400
Form Factor Micro ATX
Model ASUS H110M-A/M.2
Processor Type Core i5 7th Gen.
Number of Cores 4
Socket Type LGA 1151
Clock Speed 3.00 GHz
Shipping Cubic 0.017794000m3
