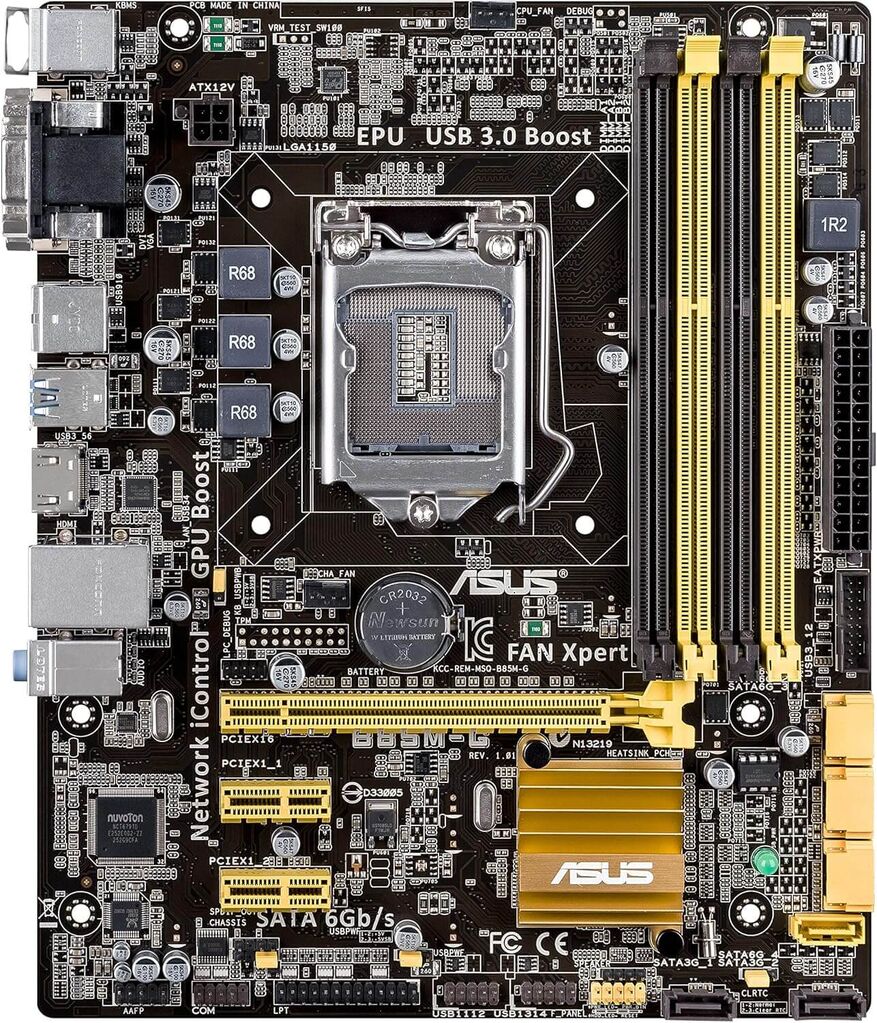

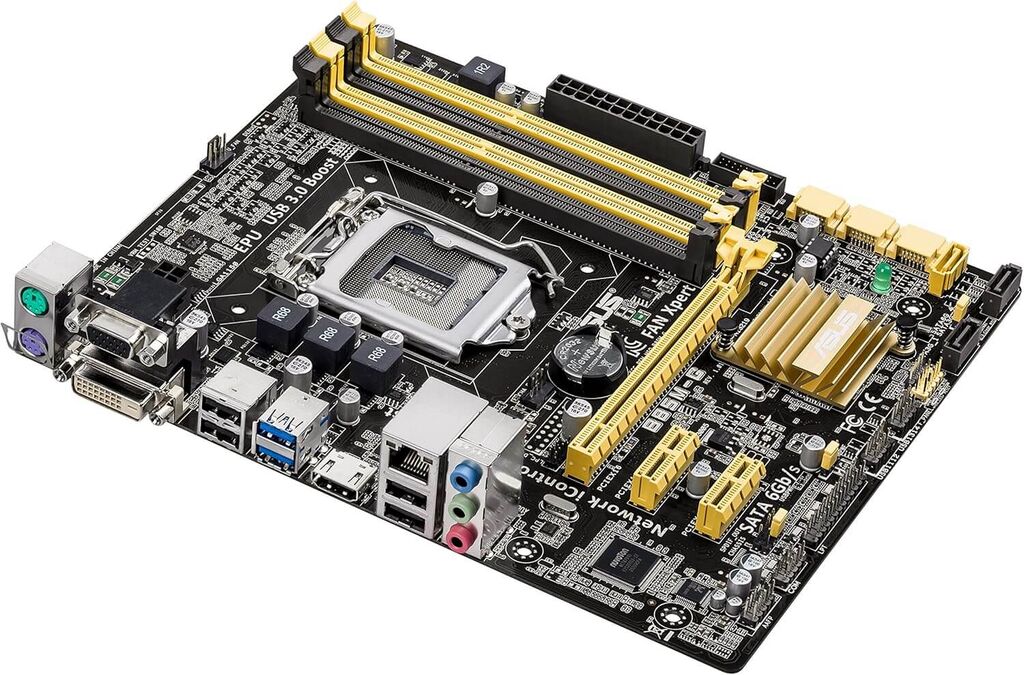

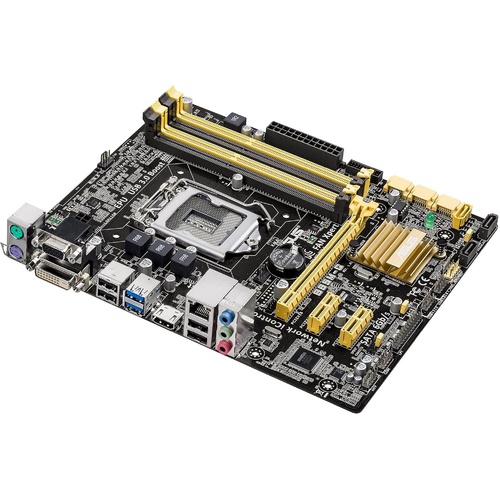

The ASUS B85M-G R2.0 LGA-1150 Micro-ATX Motherboard enables you to build a compact Windows system that comes with standard features found in a typical desktop. It comes armed with an LGA 1150 socket along with a B85 chipset to support Intel's 4th-generation of Haswell processors. The chipset allows ASUS to create a motherboard with four DIMM slots that can accept up to 32GB of DDR3 1600 MHz memory modules. For storage, four SATA III and two SATA II connectors are available for your optical drives, hard drives, and SSDs.

(AsusB85M-G-R)

CPU LGA1150 socket for Intel® 4th Generation CoreTM i7/ i5 / i3, Pentium®, Celeron® Processors
Chipset Chipset Intel® B85 Express Chipset
Memory 4 x DIMM, max. 32GB, DDR3 1600 / 1333 / 1066 MHz, non-ECC, unbuffered memory
Dual-channel memory architecture
Graphics Integrated graphics processor
Multi-VGA output support: D-Sub, DVI, HDMI ports
- Supports DVI-D with max.resolution of 1920 x 1200 @60Hz
- Supports D-Sub with max. resolution of 1920 x 1200 @60Hz
- Supports HDMI with max. resolution of 4096 x 2160 @24Hz / 2560 x
1600 @60Hz
Maximum UMA memory: 1 GB
Expansion Slots 1 x PCI Express 3.0/2.0 x16 slot
2 x PCI Express 2.0 x1 slots
Storage Intel® B85 Express Chipset:
- 2 x Serial ATA 3.0 Gb/s connectors (dark brown)
- 4 x Serial ATA 6.0 Gb/s connector (yellow)
LAN Realtek 8111G Gigabit LAN controller
Audio 7.1-channel Realtek® ALC887-VD2 High Definition Audio CODEC
- Supports multi-streaming
USB Ports 4 x USB 3.0 ports (2 ports at midboard, 2 ports at back panel)
8 x USB 2.0 ports (4 ports at midboard, 4 ports at back panel)

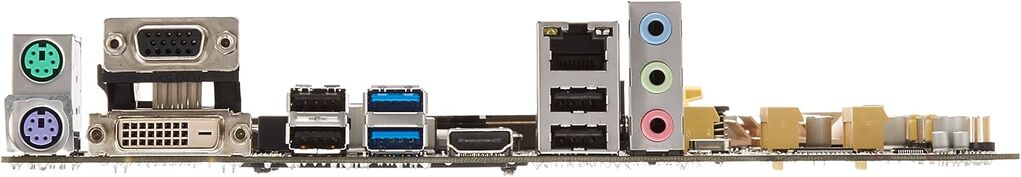

Back I/O Ports 1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
1 x DVI port
1 x D-Sub port
1 x HDMI port
1 x LAN (RJ-45) port
4 x USB 2.0/1.1 ports
2 x USB 3.0 ports
3 x Audio jacks
Internal I/O Ports 1 x USB 3.0 connector supports additional 2 USB 3.0 ports
2 x USB 2.0 connectors support additional 4 USB 2.0 ports
2 x SATA 3.0 Gb/s connectors
4 x SATA 6.0 Gb/s connector
1 x Chassis Intrusion connector
1 x CLRTC header
1 x 4-pin CPU QFan connector
1 x 4-pin Chassis fan connector
1 x Front panel audio connector (AAFP)
1 x System panel connector
1 x Speaker connector
1 x LPT Header
1 x S/PDIF Out Header
1 x COM Header
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
BIOS 64Mb Flash ROM, EFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS v2.7, ACPI v2.0a, SLP 3.0, EUP-ready, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability WOL by PME, WOR by PME, PXE
Form Factor mATX form factor: 9.2”x 7.6” (23.4cm x 19.3cm)
SKU AsusB85M-G-R
Barcode # 601527549012
Brand Asus
Brand ASUS
Processor model i5 4570T
Form Factor Micro ATX
Model ASUS B85M-G
Processor Type Core i5 4th Gen.
Number of Cores 2
Socket Type LGA 1150
Clock Speed 2.90 GHz
Shipping Cubic 0.017794000m3
