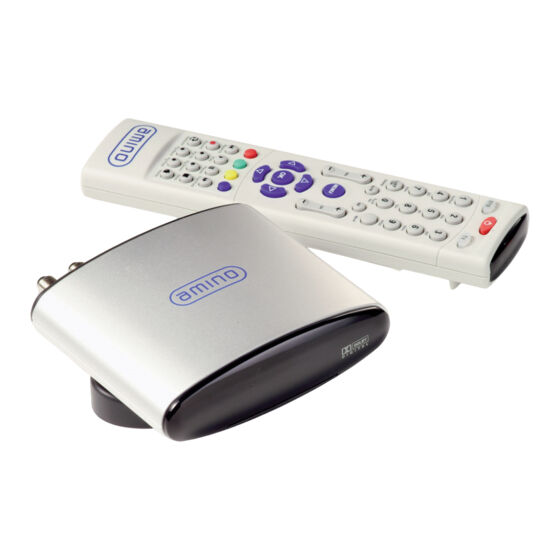

The AmiNET125 is a multi-codec Ethernet Set-Top Box (STB) designed for IPTV and Video on Demand (VoD) applications.

The advanced, low-cost chipset features a combined programmable codec DSP and host processor. This enables development of new services to increase revenue per subscriber while offering protection against changing standards.

With an Ethernet input and highly flexible audio and video outputs, the AmiNET125 provides an elegant and powerful means of delivering sophisticated interactive digital television including multicast, VoD and Internet access.

Increase Return on Investment

Advanced codecs such as H.264 and WMV9 use lower bit rates enabling more customers to be served with the same infrastructure and increasing the reach of DSL networks.

Reduce the Cost of AVC Transition

Multiple codec capability enables the same STB to be used on legacy and advanced networks eliminating the need for a truck-roll when the infrastructure is upgraded.

Accelerate Deployment

Amino software has been integrated with leading IPTV middleware and Conditional Access (CA) providers to ensure rapid deployment of a proven, reliable solution.

Versatile

The AmiNET125 may be used with a wide range of home networking products, such as Readylinks SmartFoot™, to deliver IPTV in multiple rooms. Configurable audio and video outputs allow old or new TV sets to be used for viewing.

Compact and Elegant Supplied in a compact and elegant enclosure, based on the award-winning AmiNET100 design, the AmiNET125 adds style to the most visible component of an IPTV deployment. For high volume orders, Amino can provide custom logos and colours to further enhance your brand.

Supported Middlewares

Amino STB products are supported by leading IPTV middleware providers for integration as part of a broadband TV solution. The AmiNET125 also allows development of applications in HTML and JavaScript

(A125-5011)

Main Features
• VC1 (WMV9) D1 resolution up to 2.5Mb/s
• H.264 MP@L3 D1 resolution up to 2.5Mb/s
• MPEG-2 MP@ML D1 resolution up to 10Mb/s
• Flexible audio and video output via cable options
• Composite, RGB, Component, S-Video
• Stereo Audio
• Dolby 5.1 surround via coaxial S/P-DIF
• PAL and NTSC
• 4:3 and 16:9 formats
• RF Modulator output with loop-through
• Teletext/closed caption decoding and subtitling
• 16-bit colour graphics with Alpha-Blending and picture in graphics
• Video Protocols
• Multicast IPTV (IGMP control)
• VoD (RTSP control)
• USB 2.0
• IR Remote Control combines STB and TV command functions
• Interface to 10/100BaseT Ethernet
• Key-protected, scalable multicast software booting option
• Remote management and software upgrade via network
• 128MB SDRAM as standard
• Smartcard for CA systems support
• HTML 4 Browser with JavaScript
• Silent operation - no forced air cooling
