B Grade Stock Sold AS IS. Includes Advantech Mini PC unit ONLY. No OS, No Hard Drive.

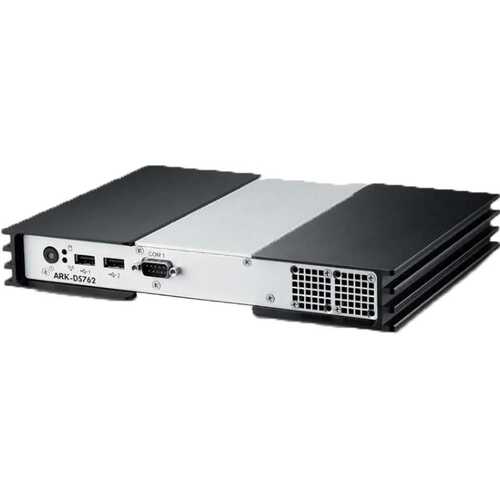

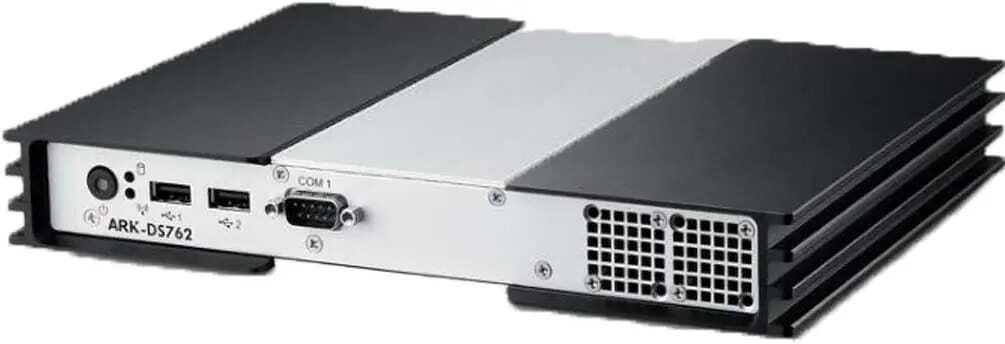

Designed for advanced digital media player and digital signage projects, the ARK-DS762 combines high processing and graphics performance (Intel® 3rd Gen Core up to 45 watts TDP) with rich I/O (including USB 3.0) and extra flexibility via optional expansion modules. The ARK-DS762 can support 3 x HDMI independent displays, and supports Microsoft® Kinect™ technology that allows a screen to become a virtual interactive mirror that can be controlled with gestures or spoken commands. It’s ideal for multi-display applications in retail stores, stadiums, corporate lobbies, restaurants, hotels and other public spaces.

(ARK-DS762-B)

Processor System

    • CPU: 3rd Gen. Intel Core i3 CPU, (uPGA 988B socket, up to 45W)
    • System Chipset: QM77
    • BIOS: AMI uEFI 64 Mbit

Memory

    • Technology: 2 x DDR3 204-pin SODIMM
    • Max. Capacity: 16 GB (up to 8 GB per each SODIMM)

Display

    • Chipset: Embedded in Processor
    • Processor Graphics: Intel HD Graphics 4000
    • Output: 3 x HDMI
    • Resolution: HDMI: Supports 1920 x 1080p at 60 Hz, 36 bpp, Supports HDMI v1.3

Storage

    • SATA: 1 x 2.5-inch SATA II HDD/SSD (support 9.5 mm / 7 mm height)
    • Cfast (socket): 1

Ethernet

    • Interface: Gigabit LAN Controller
    • Controller: Intel 82579LM
    • Connector: 1 x RJ-45

Audio

    • Chipset: Realtek ALC892, High Definition Audio(HD)

I/O Interface

    • HDMI: 3 (Support CEC)
    • LAN: 1 (RJ-45)
    • USB 2.0: 2
    • USB 3.0: 1
    • Audio: 1 audio phone jack for Line-Out, Jack sensor support via OS setting
    • Serial: 1 x COM (RS-232)
    • Mini-PCIe (Internal): 1 (for optional expansion modules)
    • Power input: 1 (DC-in Jack)

Power Requirement

    • Management: ACPI 3.0
    • Power Consumption: 17.4W (idle)

43.8W (full load)

    • Input Voltage: 19 V DC-in (ATX/AT mode, default ATX)
    • Others: Supports boot on power back and schedule boot up function

Watchdog Timer

    • Output: Interrupt, system reset
    • Interval: Programmable by SUSIAccess

Physical Characteristics

    • Mounting: Easy mounting kits for LCD or Plasma
    • Dimensions (W x D x H): 249.6 x 190.0 x 35 mm
    • Weight: 2.0 kg (4.41 lb)

Environment

    • Operating Temperature: 0 ~ 40° C (32 ~ 104° F) (w / HDD); 0 ~ 50° C (32 ~ 122° F) (w / SSD)
    • Relative Humidity: 95% @ 40° C (non-condensing),Operating
    • Vibration Resistance: 0.2 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

Software Development Kit

    • Operating System: Supports Microsoft Windows 8, Windows 7, XP Embedded
    • EWF & WDT SDK: EWF and WDT library for signage stability design in Windows OS
    • Linux: Linux CentOS, Fedora 14
SKU ARK-DS762-B
Barcode # 659359604898
Brand Advantech
Brand Advantech
Type Compact
Model ARK-DS762
Shipping Cubic 0.017794000m3
