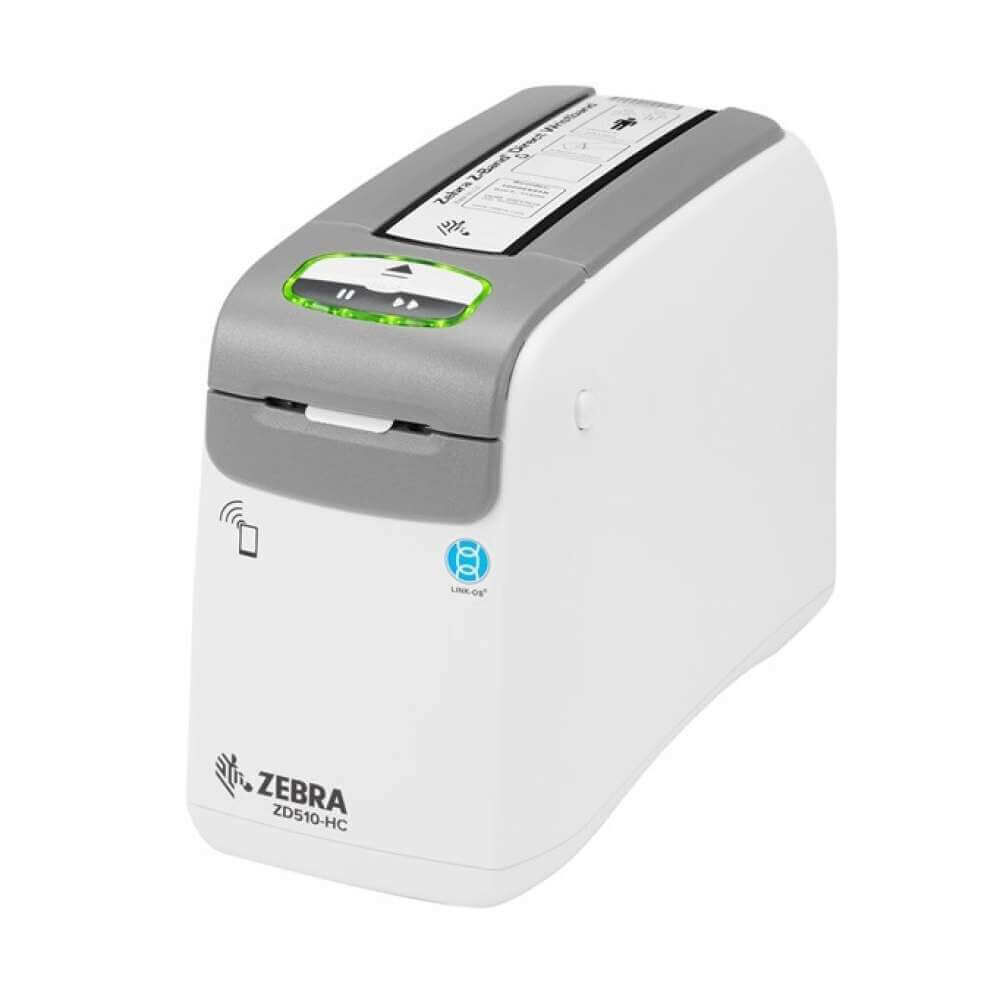

Patient ID wristbands play a critical role in your healthcare facility. Staff and patients count on wristbands to provide the instant positive patient identification required to prevent medical errors. You need dependable, accurate and fast wristband printing on durable wristbands with consistently scannable barcodes–and with the ZD510-HC, you get it all. The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC direct thermal printer with easy-to-load cartridges. These cartridges feature Zebra’s exclusive Z-Band wristbands, uniquely designed with a protective coating to support enhanced hygiene and safety standards in healthcare environments. Increase staff productivity and patient safety with the industry’s easiest to use and most dependable wristband printing solution—the ZD510-HC.

(ZD510-HC-NoPSU-R)

Standard Features

• Quick and easy wristband cartridge loading
• Automatic print speed setting-up to 4 ips depending on installed cartridge
• Direct thermal printing of barcodes, text and graphics
• Dual-wall frame, impact-resistant plastic
• ZPL® or ZPL II® programming language
• Element Energy Equalizer™ (E3™) for superior print quality
• Connectivity: USB Host, USB, Ethernet, Bluetooth Low Energy
• Odometer for print-length tracking
• Illuminated media low/media out indicator
• Tool-less printhead and platen replacement
• Unicode™-compliant for multi-language printing
• Instant media calibration — no wasted media
• Head-up sensor
• XML-enabled printing — allows XML communications from information systems
• ENERGY STAR® certified
• Real Time Clock (RTC)
• ZebraDesigner Essentials—easy label design tool free at  www.zebra.com/zebradesigner

Physical Characteristics

Dimensions 5 inches W x 7 inches H* x 9.5 inches D
127 mm W x 178 mm H* x 242 mm D
* Requires 6 inches/153 mm clearance above printer to load cartridge

Printer Specifications

Operating System Link-OS
Maximum Print Length 22 inches/558 mm
Minimum Print Length 3 inches/76 mm
Print Widths  0.75 inches/19.05 mm, 1 inch/25.4 mm, 1.1875 inches/30.16 mm
Resolution 300 dpi/12 dots per mm
Maximum Print Speed Healthcare: 2 inches/51 mm per second
Z-Band Fun and Z-Band Splash: 4 inches/102 mm per second
Programming Languages ZPL; ZPL II; XML
Memory 256 MB SDRAM memory
512 MB Flash memory

Media Characteristics

  Zebra offers a comprehensive range of wristband solutions for healthcare and hospitality industries.
Healthcare Wristbands
  • Adhesive or clip closure
  • Adult, child and infant sizes
  • Barcodes on Z-Band wristbands are proven to withstand water, soaps, foams, alcohol and other common solvents found in a healthcare environment, and remain scannable for longer than the average patient stay
Hospitality Wristbands
  • One-day and multi-day wristband options
    Seven bright colors
  • Designed for amusement parks, water parks, carnivals, zoos, sporting events and resorts
  • Variable print-on-demand barcoded wristbands means the wristband does not have value until printed, reducing ticket fraud

Options and Accessories

Communications
  • Factory installed wireless dual radio 802.11ac Wi-Fi and Bluetooth 4.1 with Print Touch tag (NFC)
  • USB, USB Host, 10/100 Ethernet only (available in EMEA only)
Programming Languages
  • ZBI 2.0™—Factory-or field-installed, this powerful programming language lets printers run standalone applications, connect to peripherals, and much more
  • Factory installed wireless dual radio: 802.11ac Wi-Fi™ and Bluetooth 4.1
Other Font packs—Asian and other international font kits

Environmental (Printer)

Operating Temperature 40° F to 104° F /4.4° C to 40° C
Storage Temperature -40° F to 140° F /-40° C to 60° C
Operating Humidity 20%-85% non-condensing R.H.
Storage Humidity 5%-85% non-condensing R.H.

Cleaning (Printer)

Healthcare wipeable plastic is designed to withstand a variety of disinfectants, chemicals and cleaning solutions.
See zebra.com for a full list.

Environmental (Wristband Cartridge)

Service Temperature -40° F to 140° F/-40° C to 60° C
Storage Temperature 32° F to 70°F/0° C to 21° C at 35% to 50% non-condensing R.H.

Electrical

Universal power supply (PFC-compliant) 100—240VAC, 50—60Hz, ENERGY STAR qualified printer

Agency Approvals

Emissions FCC Part 15, Subpart B, VCCI, RCM
Emissions and
Susceptibility
(CE): EN 55032:2012 class B and EN 55024:2010, EN 61000-3-2, EN 61000-3-3, CISPR 32:2015
Safety CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTL
Power Supply IEC 60601-1:2012

Fonts and Graphics

  • Character fonts: Standard bitmapped Zebra fonts: A, B, C, D, E (OCR-B), F, G, H (OCR-A), GS, P, Q, R, S, T, U, V and Ø Smooth font (CG Triumvirate™ Bold Condensed)
  • Supports user-defined fonts and graphics—including custom logos
  • Bitmap fonts are expandable up to 10 times, height- and width-independent. Fonts E and H (OCR-B and OCR-A), however, are not considered in spec when expanded
  • Smooth-scalable font Ø (CG Triumvirate Bold Condensed) is expandable dot-by-dot, height-and width-independent, while maintaining edges to a max. 1500 x 1500 dots

Barcode Symbologies

Linear Barcodes

Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, EAN-14, GS1 DataBar™ (formerly RSS), Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extensions
Two Dimensional Barcodes Aztec Code, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
SKU ZD510-HC-NoPSU-R
Barcode # 615678609679
Brand Zebra
Brand Zebra
Type Wristband Printer
Model ZD510-HC
Maximum Resolution 300 dpi
Connectivity USB, Ethernet, Wi-Fi
Technology Thermal
Input Type Monochrome
Supported Paper Size Max Label Width: 1.1875"/30.16 mm
Shipping Cubic 0.017794000m3
