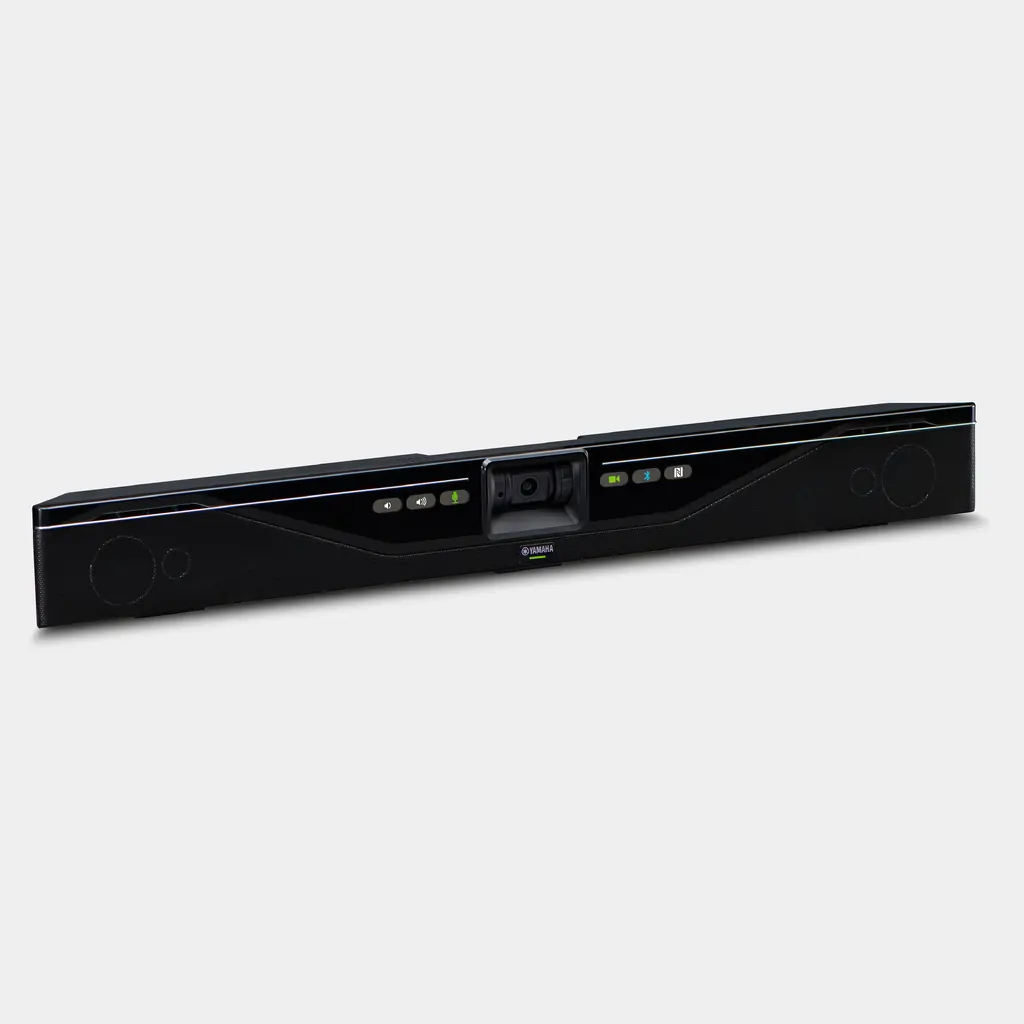

Video Sound Collaboration System for Huddle Rooms

The Yamaha CS-700 video sound collaboration system is specifically designed as an all-in-one unit to equip huddle rooms with best with best in class audio and video capability. Huddle rooms have unique requirements, as they typically are small sized rooms with limited tabletop space. The Yamaha CS-700 combines ultra-wideband audio with high-quality video to fulfill video, audio, and collaboration requirements in one simple, wall-mounted system addressing all communication and collaboration requirements of the huddle room. Audio and video are accomplished through one USB cable. The integrated remote management capability enables IT departments across the world to remotely monitor and manage their huddle room installations.

  • USB audio and video support
  • Beamforming microphone array
  • 4 speaker elements

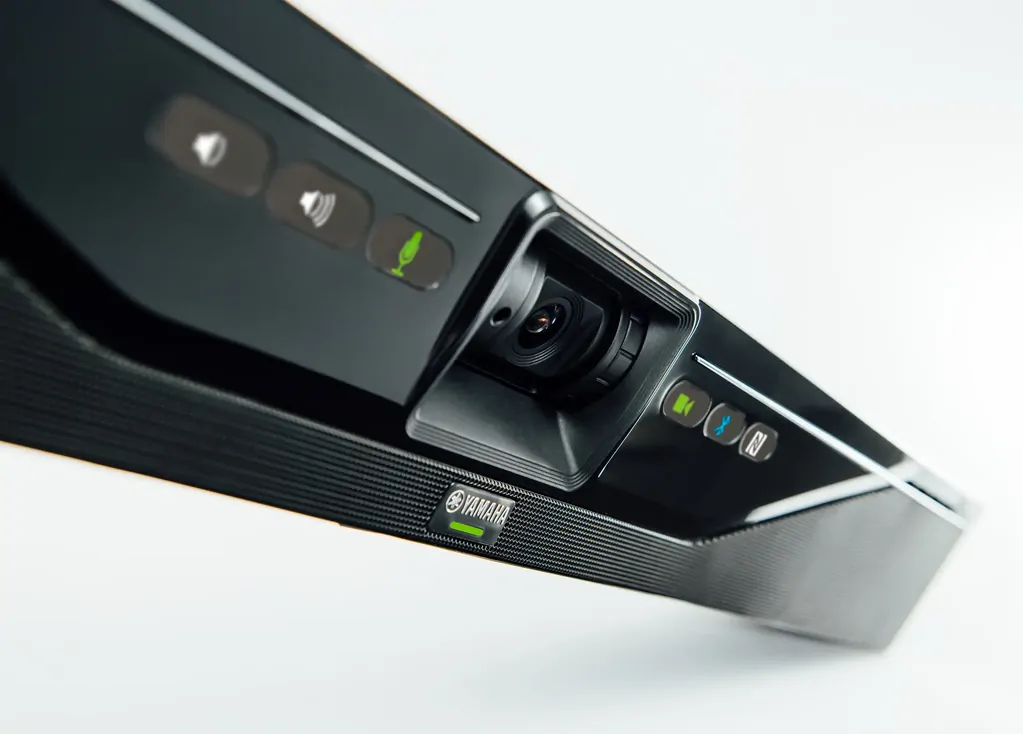

  • Ultra-wide angle camera with 120 degree field of view
  • Remote administration and management, system notifications (SNMP), auto configuration support
  • Works with your chosen UC application
  • Connect calls with Bluetooth & NFC

(CS-700AV-NoPSU-R)

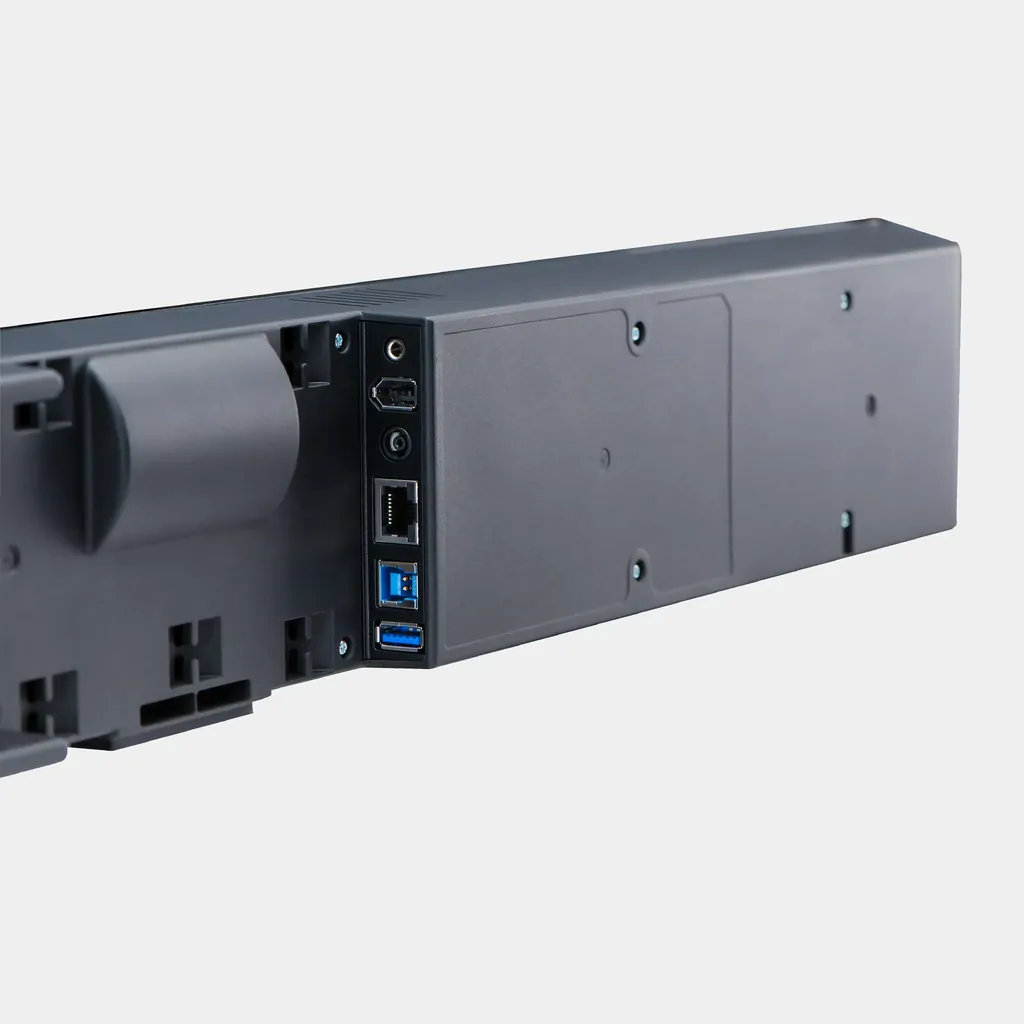

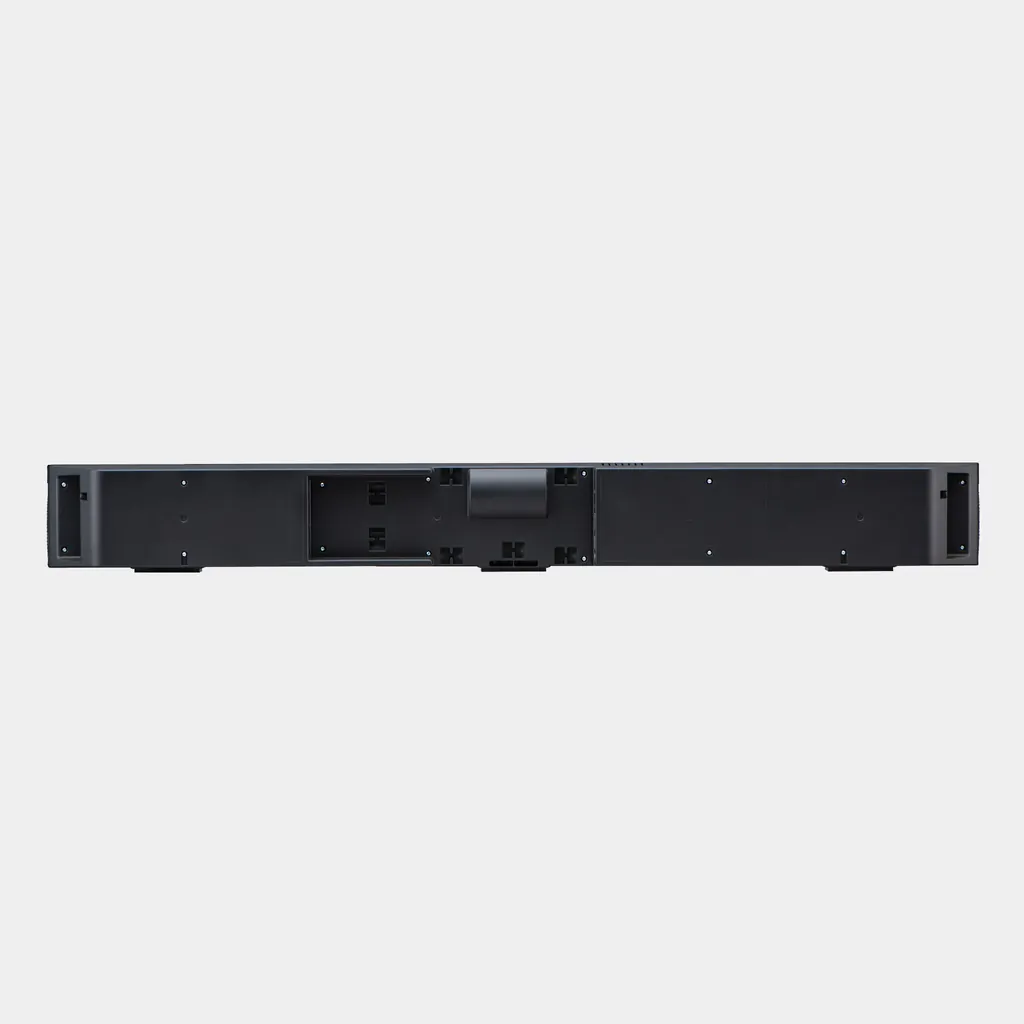

General Interface Mount: Wall Mount Bracket for above or below display mounting, Connector: USB with strain relief, USB Host Port: Audio, video and HID supported over USB 2.0 and 3.0/3.1 (B), Ethernet: RJ 45, Bluetooth®: Audio only, Aux Audio Input: 3.5 mm Stereo, Extension Microphone Port
Power consumption (max) 36 W
Power source Electricity: Input Voltage 100 - 240 VAC, Input Current 1A, Input Frequency 50 - 60 Hz (Power cord length: 10 ft/3 m)
Operating environment Temperature: 0 - 40° C (32 - 104° F), Humidity: 20 - 85% (no condensation)
Dimensions 861.7 (W) x 98.75 (H) x 68.5 (D) mm (34 x 3.9 x 2.7 in)
Weight 3.3 kg (7.3 lbs/incl. bracket)
Supported OS Windows 11、Windows 10(32bit/64bit)、macOS 12、macOS 11
Accessories Wall Mounting Bracket, Region Specific Power Cord, Power Supply, Ethernet Cable, USB Cable 3 m (9.8 ft), Instructions
Audio Microphones 4 microphones beamforming array
Speakers 4 Speaker elements with tweeter and mid-Woofer on left and right
Maximum volume Max SPL: 90 dB at 1 M
Frequency bandwidth For sound pickup: 160 Hz - 16,000 Hz, For playback: 160 Hz - 20,000 Hz
Signal processing Adaptive echo canceller, Noise reduction, Adaptive beamforming, Automatic gain control, Automatic room EQ, Dereverberation
Camera and Video Frame Rate and Resolution USB 3.0: 1,080 p, 720 p, 360 p/30 fps. USB 2.0: 360 p/30 fps.
Field of View 120 degrees
Focus Distance 50 cm
Digital PTZ Maximum Zoom Ration: x 4
Video Processing DeWarping, Auto white balance, Auto exposure, Local tone mapping, 2D/3D Noise reduction
USB Output Format YUY2
SKU CS-700AV-NoPSU-R
Barcode # 615678939240
Brand Yamaha
Brand Yamaha
Type Video Conferencing
Model CS-700AV
Connectivity USB, Bluetooth, NFC, 3.5mm
Shipping Cubic 0.017794000m3
