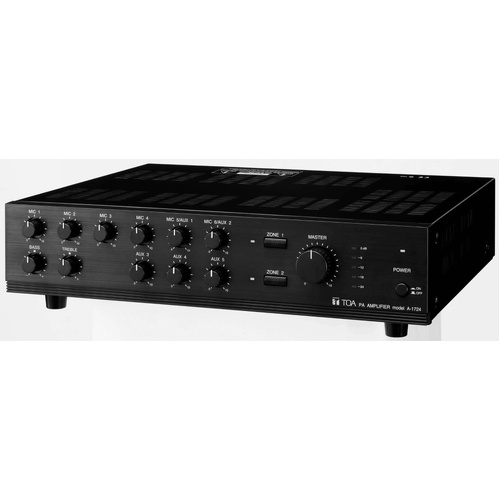

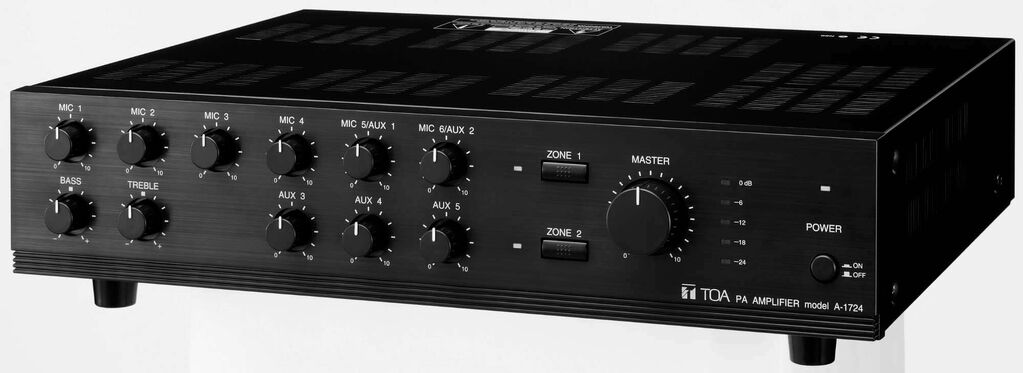

Equipped with 6 Microphone inputs and 5 AUX inputs (simultaneous use of 9 inputs possible), the A-1724 PA amplifier of 240 W is designed to suit the following PA system applications: announcements, BGM, and broadcasting in mosques, churches, large rooms, and factories.

  • User-friendly front panel allows easy operation
  • Individual zone speaker selection buttons enable broadcasting to 2 separate zones
  • One of 3 different program sources can be broadcasted
  • High-quality circuitry for wide frequency response (e.g. for CD music sources and hook-up of FGM / BGM speakers)
  • Recording output
  • 6 MIC inputs
  • AUX-1, 2, 3 inputs for tuner, cd player or other BGM sources



(TOA-A-1724-R)

Power source 220 - 230 V AC, 50 / 60 Hz
Power / current consumption 532 W
Frequency response     50 Hz - 20 kHz
Rated output 240 W
Finish Steel plate, ABS resin, black
Dimensions 420 x 107.7 x 367 mm (W x H x D)
Weight 13.5 kg
Number of channels 1
Connectable microphones 6
Inputs

Mic 1-6 -60 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31

equivalent and phone jack
AUX 1 - 2: -20 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31

equivalent and phone jack .
Either MIC 5 or AUX 1, and either MIC 6 or AUX 2 selectable.
AUX 3 - 4: -20 dBV, 10 kOhm, unbalanced, RCA pin jack
AUX 5: -20 dBV, 10 kOhm, unbalanced, combined type of XLR-3-31 equivalent and phone jack
PWR AMP IN: 0 dBV, 600 Ohm, unbalanced, RCA pin jack (An equalizer or other signal processor connectable between LlNE OUT and PWR AMP IN terminals)

Outputs REC: 0 dBV, 600 Ω, unbalanced, RCA pin jack
SPEAKER: 100 V (42 Ω), 4 – 16 Ω
SKU TOA-A-1724-R
Barcode # 615678555310
Brand TOA
Brand TOA
Type Mixer Amplifier
Model A-1724
Shipping Cubic 0.017794000m3
