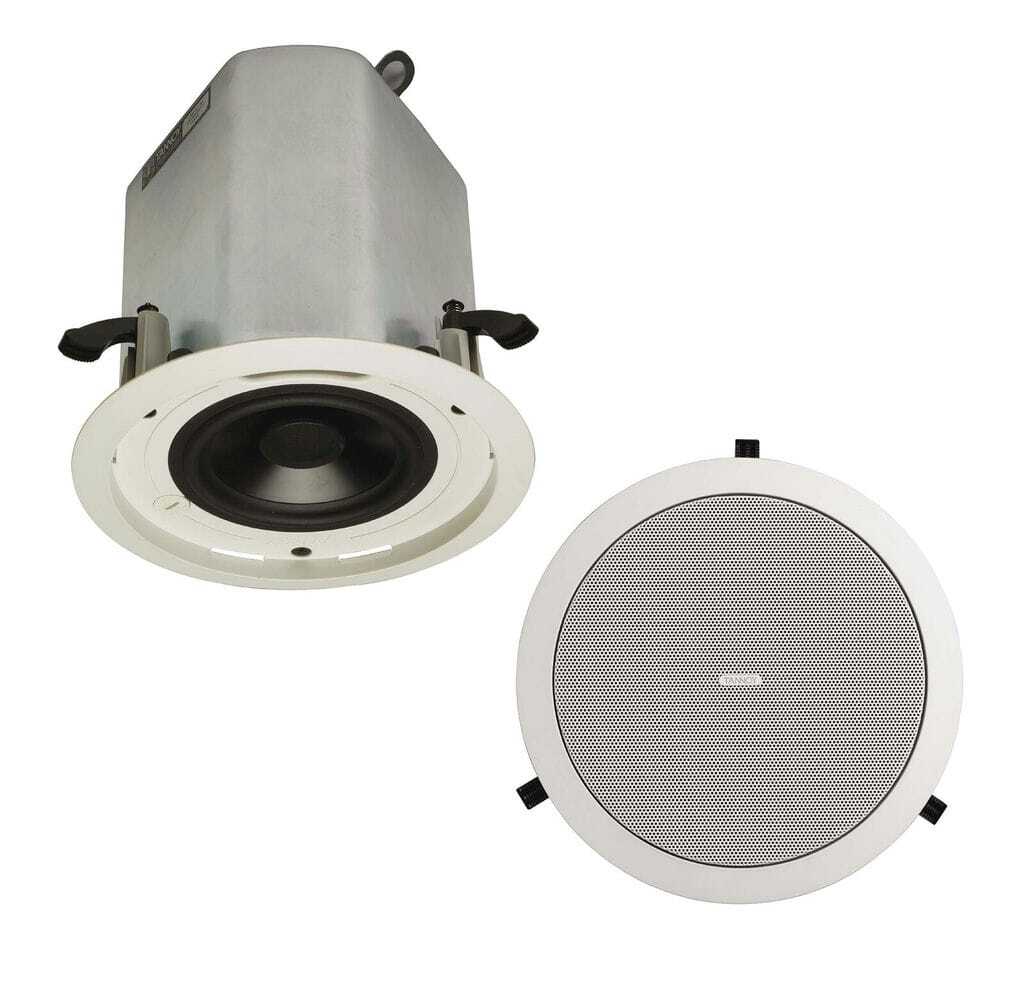

The Tannoy CMS501 DC is a full bandwidth; high power and high sensitivity ceiling monitor system. The 130mm (5.00") Tannoy Dual Concentric™ is a point source, constant directivity drive unit design comprising a multi fibre paper pulp mid bass cone and a 19mm (0.75") ferrofluid cooled, titanium dome HF unit with neodymium magnet system. The driver and passive frequency dividing network is mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material.

Product Features

  • Full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • 5" Dual Concentric full range driver for point source phase coherence
  • 90° constant directivity dispersion for optimum coverage
  • Blind mount version supplied with acoustically enhanced zinc plated steel back can
  • Integrated single unit construction for ease of installation
  • Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
  • UL 1480 certified for general signalling systems
  • UL 2043 certified for air-handling spaces
  • Low insertion loss 30 W line transformer with easily accessible tapping switch
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated UV resistant perforated steel mesh grille with dust protection
  • Removable grille for custom painting
  • Self-aligning 4 way clamp mounting system
  • Designed and engineered in the U.K.

(CMS-501DC-BM-R)

System
Frequency Response (-3dB) (1) 85Hz - 50kHz
Frequency Range (-10dB) (1) 74Hz - 54kHz
System Sensitivity (1W @1m) (2) 89dB (1W = 2.45V for 6W)
Nominal Coverage Angle 90 degrees conical
Coverage Angle (1kHz to 6kHz) 105 degrees
Directivity Factor (Q) 5.9 averaged 1kHz to 6kHz
Directivity Index (DI) 6.9 averaged 1kHz to 6kHz
Rated Maximum SPL 107dB (average), 113dB (peak)
Power Handling (3) Average: 60W, Programme: 120W, Peak: 240W
Recommended Amplifier Power 120W @ 8W
Nominal Impedance 8 ohms
Transformer Taps 70V: 30W/15W/7.5W/3.75W/ OFF & low impedance operation, 100V: 30W/15W/7.5W/OFF & low impedance
Crossover 2kHz - 2nd order LF, 2nd Order HF (with Dynamic HF protection)
Transducers
Low Frequency 130mm (5.00") Dual Concentric constant directivity driver with multi fibre paper pulp cone
High Frequency 19mm (0.75") titanium dome with neodymium magnet system
Physical
Enclosure Back can: Zinc plated steel, Baffle: Reflex loaded UL 94V-0 rated ABS, Grille: Steel
Safety Features Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design Security toggle clamp
Back Can Options Complete with fixed back can
Cable Entry Options Cable clamp & squeeze connector for conduit up to 22mm
Conduit Knockouts 3 Sets of horizontal positions 19 / 22 / 28mm (0.75” / 0.87” / 1.10”)
Connectors Removable locking connector with screw terminals with "loop through" facility
Safety Agency Ratings (pending) UL-1480, UL-2043, CE
Hole Cutout Diameter 190mm (7.50")
Included Accessories C Ring, tile bridge, paint mask, cutout template, grille
Optional Accessories Plaster (mud) ring
Dimensions (Bezel Diameter) 210mm (8.20")
Dimensions (Front of Ceiling to Rear of Back Can) 189.5mm (7.50")
Dimensions (Front of Ceiling to Top of Safety Loop) 207mm (8.10")
Weight (ea.) 11 lbs (4.98 kg)
SKU CMS-501DC-BM-R
Barcode # 659359637018
Brand Tannoy
Brand Tannoy
Type In-Ceiling Speakers
Model CMS 501DC BM
Shipping Cubic 0.017794000m3
