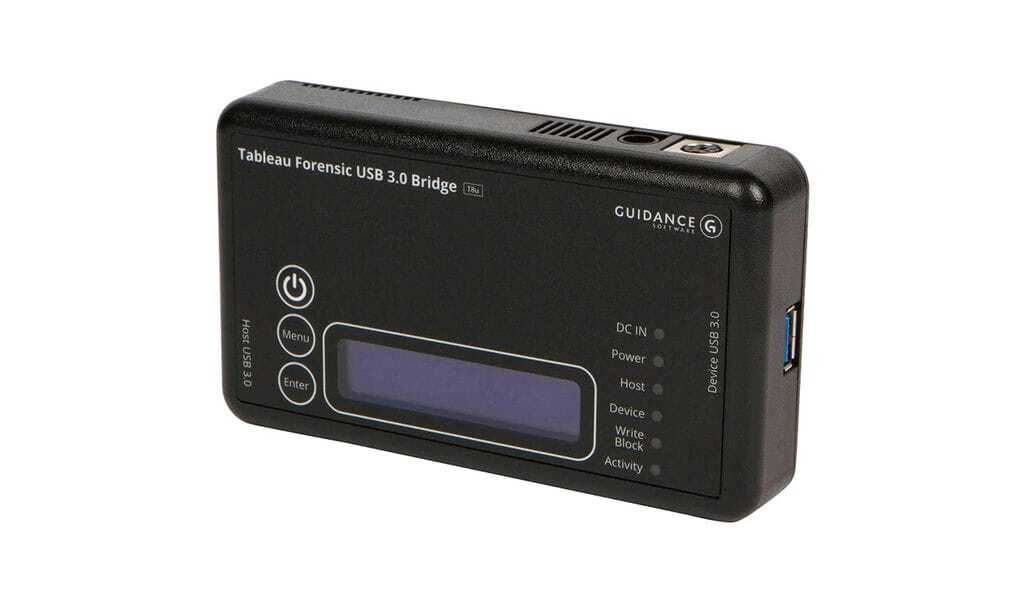

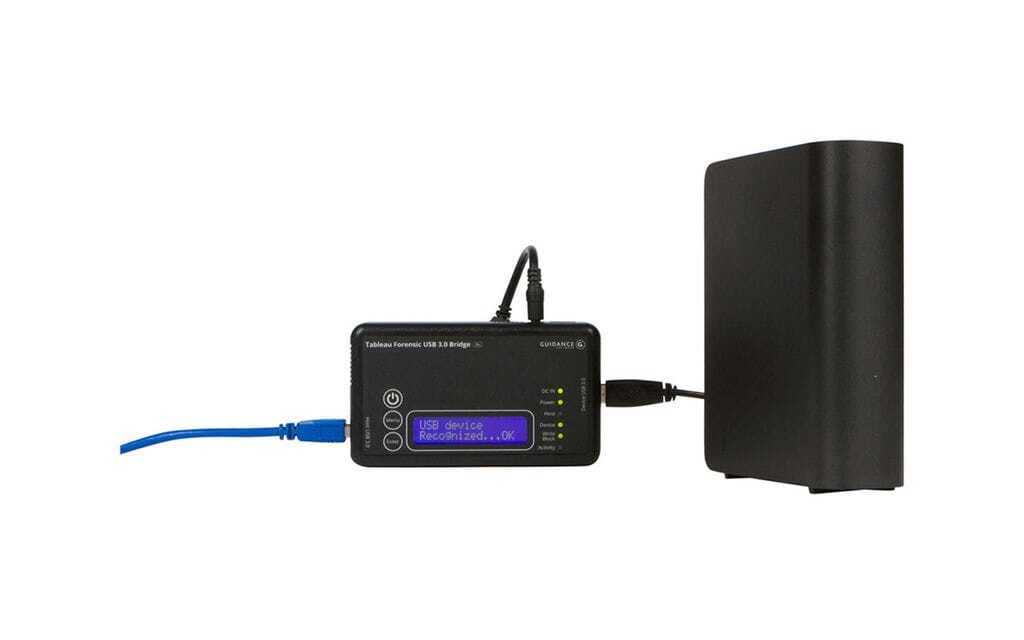

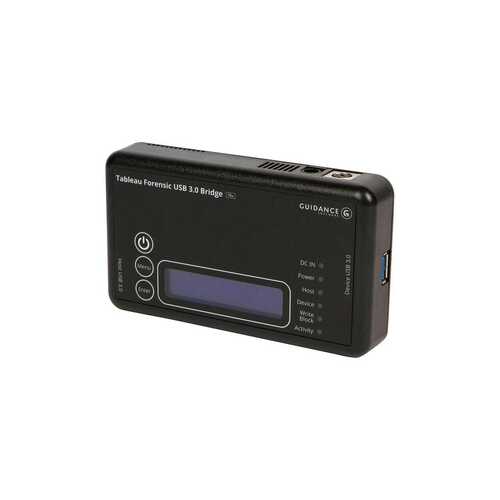

The T8u is the first Tableau Portable Family forensic bridge that supports write-blocked imaging of USB 3.0 devices through a SuperSpeed USB 3.0 host computer connection. T8us powerful combination of a new, high-performing product architecture and USB 3.0 technology provide the speed you need to image USB 3.0 flash drives, multi-terabyte hard drives, or all USB 2.0 / 1.1 drives conforming to the mass storage "bulk-only" specification. Using controlled, real-world configurations and modern forensic imaging software, weve measured forensic data transfer with the T8u in excess of 300 MB/second (while simultaneously calculating MD5 and SHA-1 hashes). No other USB write-blocker can match the T8us forensic performance and value.

- Backlit Interface - Device status, device information, logical unit (LUN) select, and bridge information are easily accessible
- Supports USB 1.0 / 2.0 / 3.0, Flash Drives, Mass Storage Drives, and any "bulk storage" drive
- Kit Includes - TP2 Power Supply with US-Style power cord, TC-USB3 USB 3.0 (A to B) cable, 6 foot length, Soft-Sided bag and Quick Start Guide
- Hardware-Based USB 3.0 Write Blocker

(TableauTK8U-OB)

Compatibility
  Macintosh OS X
  Most modern Linux distributions (Note: Linux distributions have varying levels and quality of support for USB 3.0)
Host OS Microsoft Windows version 7, 8, 10
USB Device USB 3.0 and older devices that conform to the USB Mass Storage class specification and support the Bulk Only Interface Protocol
Connectors: Device (Right) Side
USB 3.0 One USB 3.0 Standard-A connector
Connectors: Host (Left) Side
USB 3.0 One USB 3.0 Standard-B connector
Connectors: Top Side
DC Input One 5-pin Mini-DIN connector for the Tableau TP2 power supply, and one bayonet connector for the Tableau TP5 power supply
Other Features
Status LEDs Six LEDs: DC IN, Power, Host (detect), Device (detect), Wrt Block (enabled), Activity
Physical / Environmental
  +12V @ 0.45A (max) when using a Tableau TP5 power supply
Dimensions 5.625 in. (L) x 3.25 in. (W) x 1.125 in. (H)
Operating Temperature Range 0 to 55 degrees C (no airflow)
Output Voltage (DC OUT) +5VDC @ 0.9A (max)
Power 12 watts typical operating (not including USB device)
Relative Humidity Up to 90% (non-condensing)
Storage Temperature Range -20 to 60 degrees C
Supply Voltage (DC IN) +5V @ 0.3A (max), +12V @ 0.3A (max) when powered using a Tableau TP2 power supply
Weight 7.2oz (204g)
Switches
DIP Switch The 4-position DIP switch configures user-selectable options that are not required for normal operation. See the T8u Quick Reference Guide for more information
User Interface
Buttons Three buttons: "Menu" and "Enter" buttons for navigation, plus an "On/Off" button to control the power
LCD 2 Row x 16 Column monochrome LCD character display with LED backlight
SKU TableauTK8U-OB
Barcode # 659359719608
Brand Tableau
Brand Tableau
Type Forensic Bridge
Colour Black
Model TK8u USB
Shipping Cubic 0.017794000m3
