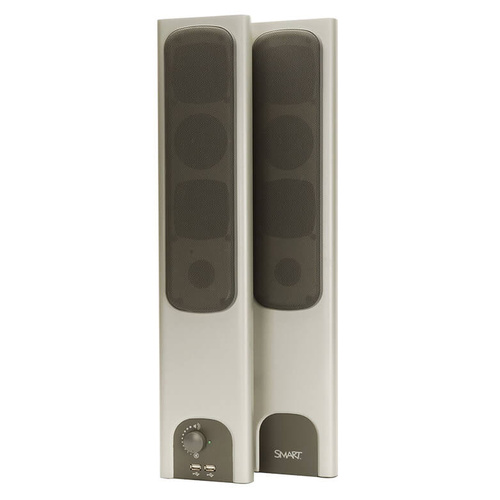

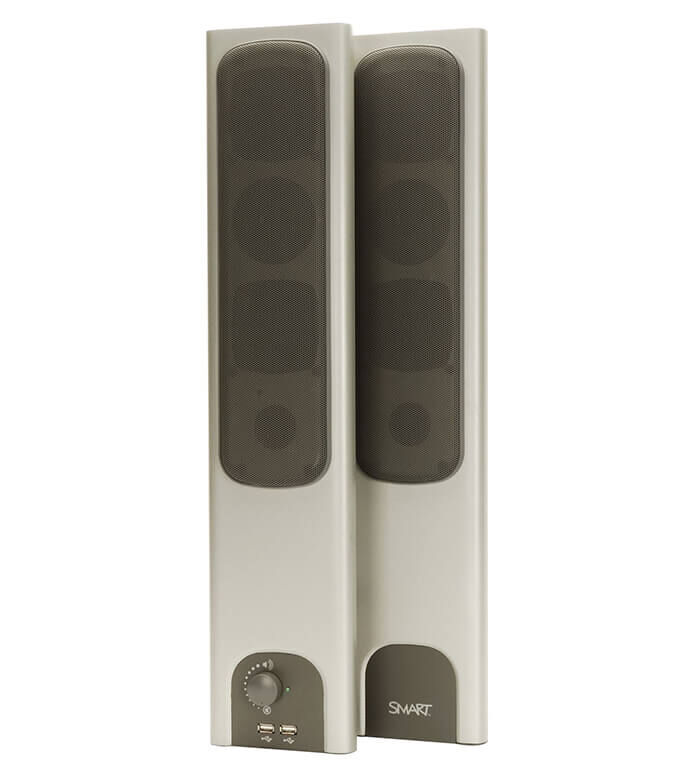

USB audio system for SMART Board® 600 and 800 series interactive whiteboards

Add audio to your SMART Board interactive whiteboard with two 14-watt, stereo-amplified speakers that provide a consistent sound level in rooms up to 1,000 sq. ft. (93 m2). These speakers feature a volume control and integrated USB hub.

The SMART SBA USB audio system for SMART Board® 600 and 800 series interactive whiteboards connects to a computer through a USB cable, and includes a powered USB hub. It can be used with SMART Board 600 and 800 series interactive whiteboards without a SMART projector. The USB audio system also includes an integrated powered USB hub with two USB connectors.

(SBA-USB-2012-R)

Rating 15-watts
Connection Built-in 2-port USB Hub
Auxiliary Input for DVD player or VCR
Others Stereo-Amplified
Mounts to a SMART Board whiteboard or wall
Mounting brackets Attach the speakers directly to a SMART Board interactive whiteboard or wall-mount them.
Color
  • Light gray (approximates PANTONE® Cool Gray 4 C).
  • Matches the SMART UF70 projector and the SMART Board M600 series interactive whiteboard.
Volume control A large volume dial is on the front of the right speaker.
Connectivity
  • USB 2.0 receptacles on the right speaker to connect a USB drive or USB peripherals
  • Dual RCA receptacles on the right speaker to connect a projector or external audio sources
Frequency range 50 Hz to 20 kHz ± 6 dB
Output Provides a comfortable listening volume in rooms up to 1,000 sq. ft. (93 sq. m) in size, with a 30-person capacity (subject to room acoustics).
Maximum output 14 W RMS when both channels are driven simultaneously and no other USB devices are attached to the USB hub (not including the SMART Board interactive whiteboard).
Optimal output 10 W RMS when both channels are driven simultaneously and up to two other low- or high-powered USB devices are interfaced with the USB hub.

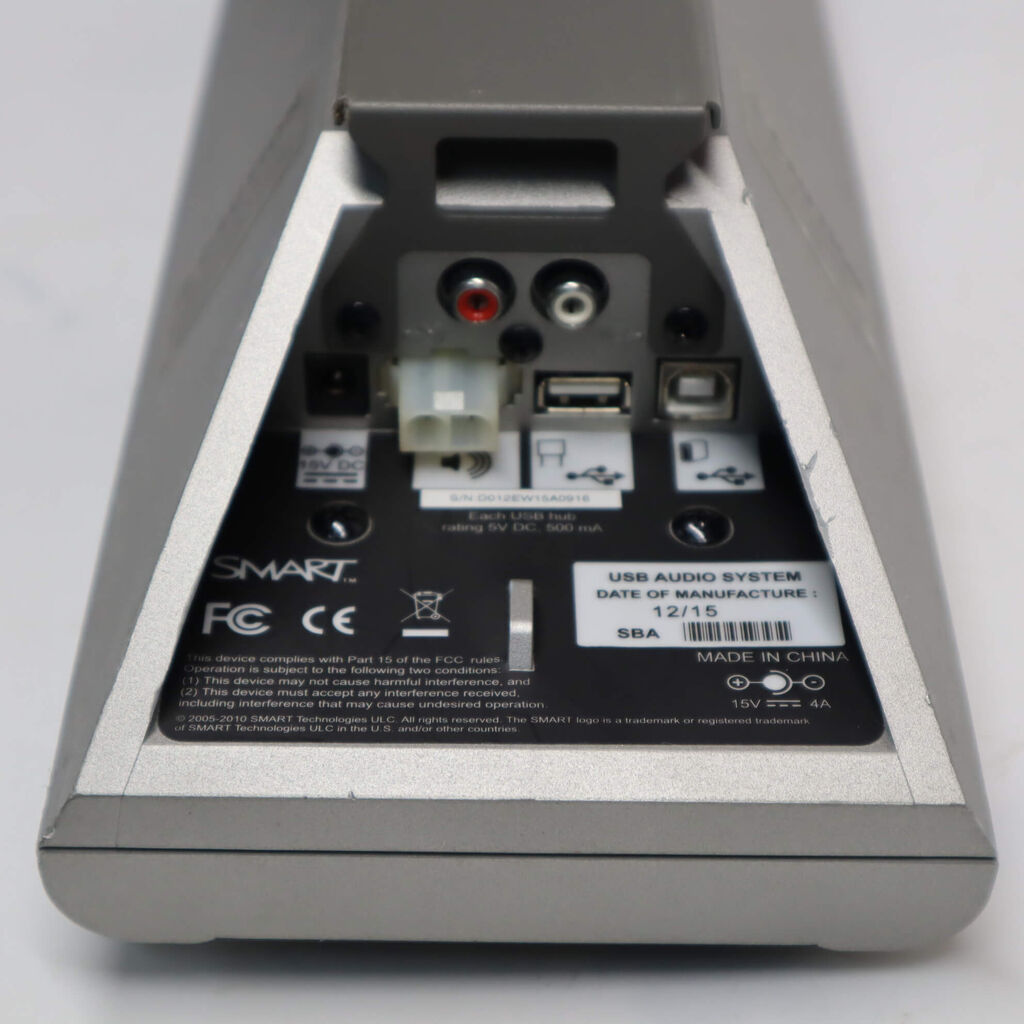

Connection panel Polarized Molex® connector with 25' (7.6 m) of 16 AWG wire
Power Powered barrel connector (15 V DC, 4 A)
USB A Connects to your interactive whiteboard
USB B Connects to your computer
Dual RCA Connects to your projector or an external audio source such as a VCR or DVD/Blu-ray™ player
USB device support Powered USB 2.0 hub.
Power requirements Switching power supply (100V–240V AC, 50 Hz–60 Hz, 1.5A) and a 6' (1.8 m) country specific power cord (15V DC, 4000 mA, 60 VA, positive tip)
Operating specifications 41°F to 95°F (5°C to 35°C) with up to 80% humidity, non-condensing
SKU SBA-USB-2012-R
Barcode # 615678964020
Brand SMART
Brand SMART Technologies
Type Speakers
Model SBA USB Audio System
Shipping Cubic 0.017794000m3
