Includes SRD-1670DC DIgital Video Recorder, power cable. Does NOT include remote..

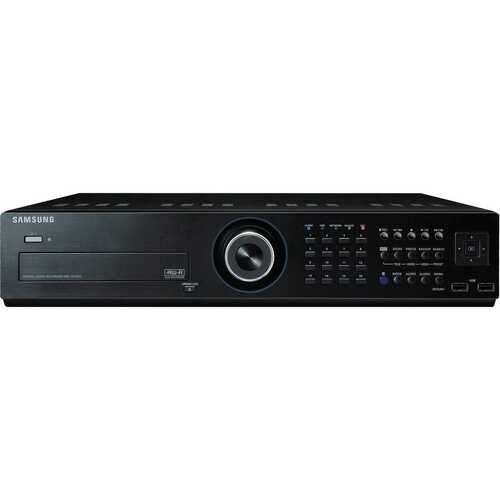

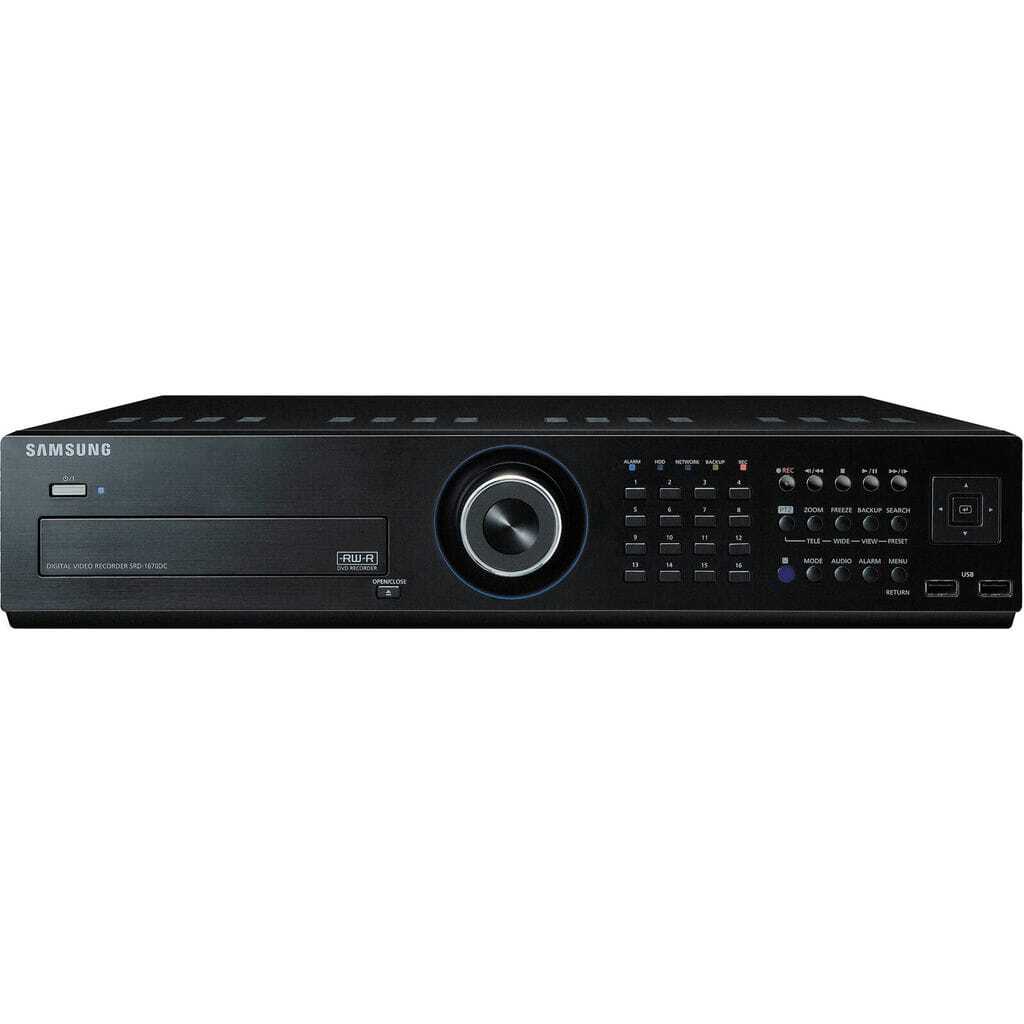

The SRD-1670DC 16-Channel H.264 Digital Video Recorder from Samsung features 16 channel audio inputs and 1-channel audio output. It comes equipped with a built-in DVD burner and supports up to 5 internal SATA hard drives.

  • 16-channel 4CIF real-time DVR
  • H.264 compression, Embedded Linux
  • Up to 480 (NTSC) / 400 (PAL) ips
  • 16 Channel audio inputs and 1-channel audio output
  • HDMI video output for HD display
  • Up to 5 internal drives
  • Free DDNS
  • PTZ control via coaxial cable
  • DVD writer (back-up)

(SRD-1670DC-R)

Display

Video

Input: 16 Composite video 0.5 to 1 Vpp, 75 Ω automatic termination
Resolution: NTSC 704 x 480 / PAL 704 x 576

Live

Frame Rate: NTSC: 480 fps / PAL: 400 fps
Resolution: NTSC 704 x 480 / PAL 704 x 576 Multi Screen Display: 1 / 4 / 6 / 8 / 9 / 13 / 16 / PIP

Performance

Operating System

Embedded: Linux

Recording

Compression: H.264
Record Rate: NTSC up to 120 fps @ 704 x 480 / up to 240 fps @ 704 x 240 / up to 480 fps @ 352 x 240
Mode: NTSC: Manual, schedule (continuous / event), event (pre / post), time lapse (0.9 / 1.9 / 3.8 / 7.5 / 15 / 30 fps)
PAL: Manual, schedule (continuous / event), event (pre / post), time lapse (0.8 / 1.6 / 3.1 / 6.2 / 12.5 / 25 fps)
Overwrite Modes: Continuous
Pre-alarm: Up to 30 sec (5, 10, 20, 30 sec)
Post-alarm: Up to 6 hour (5,10, 20, 30sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4, 5, 6 hour)

Search & Playback

Search Mode: Date/time, event, back up, POS, motion (All search includes preview function
Playback Function: Fast forward/backward, Slow forward/backward, Step forward/backward

Network

Transmission Speed: CIF 480 / 400 fps
Bandwidth: Up to 8 Mb/s, 2 / 1.5 / 1 Mb/s / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50 kb/s
Bandwidth Control: Selectable
Multi Stream: H.264 (4CIF / 2CIF / CIF selectable)
Max. Remote Users: Search 3 / Live unicast 10 / Live multicast 20
Protocol Support:
TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring: Net-i viewer, Smart viewer, Web viewer

Smart Phone

Platform: Android, i-Phone
Protocol Support: RTSP/RTP (UDP), CGI, HTTP
Transmission Speed: Wi-Fi CIF maximum 4 fps (Single channel) / CIF maximum 4 fps (quad channel)
3G CIF maximum 4 fps (single channel) / CIF maximum 4 fps (Quad channel)
Maximum Remote Users: Live 1

Storage

Internal HDD: Up to 5 SATA HDDs
External (e-SATA Interface): 2 expansion bays (Up to 4 HDD each) USB (Back up): 3 USB ports
File Format (Back up): AVI, BU (DVR Player), EXE (Include Player)

Security

Password Protection: 1 Admin, 10 Group, 20 User per 1 Group, User can be assigned authority for function
Data Authentication: Watermark

Interface

Monitors

VGA: 1 VGA (800 x 600, 1024 x768, 1280 x 1024)
HDMI: 480p / 720p / 1080p resolution
Main Composite: 1 BNC, 1 Vpp. 75 Ω Spot Composite: Digital spot (4 BNC , 1VPP, 75 Ω), support multi screen and camera title
Loop Outputs: 16

Audio

Inputs / Output: 16-channel line in (Built-in 4-channel, option audio extension cable) / 1-channel line out
Compression: ADPCM
Sampling Rate: 16 kHz

Alarm

Input / Output: Terminal 16 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC), Rating : 30 VDC / 2A, 125 VAC / 0.5 A
Remote Notification: Notification via e-mail

Connections

Ethernet: 1 RJ-45 10/100/1000 Base-T
Serial Interface: RS-232
PTZ Control Interface: RS-485
PTZ Keyboard: RS-485
USB: USB 2.0, 3 ports
Application Support: Mouse, remote controller
Protocols Support: Supported: Samsung-E, Samsung-T, Pelco-D, Pelco-P, Panasonic, Phillips, AD, DIAMOND, ERNA, KALATEL, VCL TP, VICON, PTZ control via coaxial cable [Samsung CCVC, Pelco-C (Coaxitron)

General

Language

Korean, Japanese, Chinese, English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thai, Rumanian, Serbian, Croatian, Hungarian, Greek (22 languages)

Electrical

Input Voltage / Current: 100 to 240 VAC ±10%, 50 / 60 Hz autoranging
Power Consumption: Maximum 60 W (with 1x HDD)

Environmental

Operating Temperature: 32 to 104°F (0 to 40°C)
Operating Humidity: 20 to 85% RH

Mechanical

Dimensions (W x H x D): 17.32 x 3.46 x 16.80" (440.00 x 88.00 x 426.80 mm)
Weight: Approximately 16.53 lb (7.5 kg) (with hard disks) Rack Mount Kit: 2ea



SKU SRD-1670DC-R
Barcode # 659359603013
Brand Samsung
Brand Samsung
Type Digital Video Recorders
Model SRD-1670DC
Connectivity HDMI, VGA, Composite (BNC)
Unit Of Measure ea
