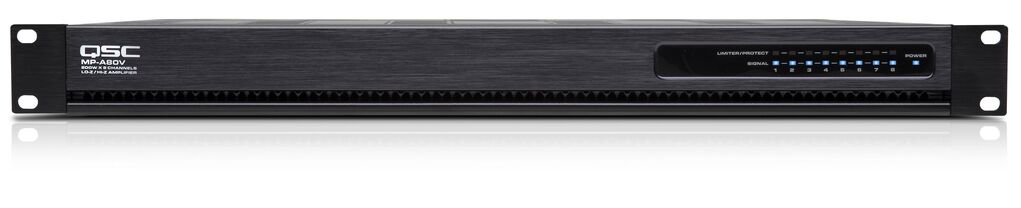

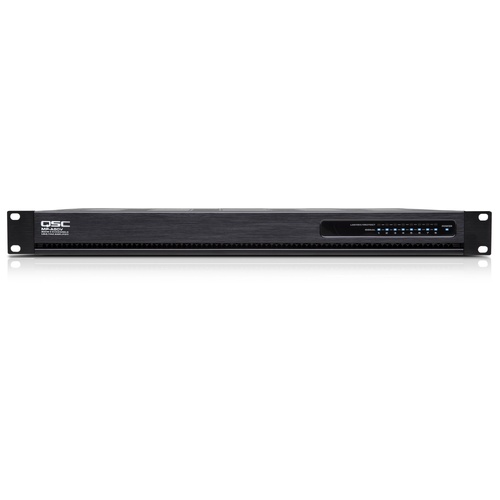

The QSC MP-A80V is an 8-channel amplifier designed for background music and paging applications. The amplifier utilizes Class-D output circuitry with a switch-mode power supply and active PFC. The amplifier provides a FlexAmp circuit topology that enables each pair of channels to deliver up to 400 Watts of total power in any ratio. This FlexAmp technology, when combined with the ability to drive any type of output load (4/8 ohms or 70/100V), ensures remarkable flexibility.

The rear panel offers 8 x 3-pin Euroblock inputs, 4 x 4-pin Euroblock outputs, and a single 5-pin Euroblock remote input for putting the amplifier into standby mode for fire safety systems and an amplifier status signal on the remote output for system verification. The MP-A80V includes an 80 Hz high-pass filter per channel and ships with Euroblock connectors, cable ties, and a power cord.

  • FlexAmp Technology allows each pair of amplifier channels to deliver up to 400W of total power, in any ratio
  • Class-D output circuitry and switch-mode power supply for high efficiency and low cost of ownership
  • 1 RU amplifier design for rack space savings
  • Load selector for driving 4 ohms, 8 ohms, 70 or 100V on each channel
  • Selectable 80 Hz high-pass filter offered on each channel
  • Power saving features—Auto-standby (after 28 minutes with seamless auto-ramp when signal returns) and remote standby input
  • Amp status remote output
  • Rock-solid dependability

(QSCMPA80V-R)

Number of Amplifier Channels

8

Load Impedance/Voltage Support

4 / 8 Ohms
100 / 70 V

Power Rating per Channel

8x 200 W RMS at 8/4 Ohms
8x 200 W RMS at 100/70 V

Amplifier Class

Class-D

Performance

Protections

DC Fault, Open Circuit, Overcurrent, RF, Short Circuit, Thermal

Frequency Response

20 Hz to 20 kHz ±0.5 dB (8 Ohms)

Damping Factor

100

SNR/Noise

> 103 dB SNR

THD/Distortion

≤ 0.01% Distortion (at 4 Ohms, at 8 Ohms)
≤ 1% Distortion (at 4 Ohms, at 8 Ohms, Max)

Signal Processing

DSP

No

Audio Delay

No

EQ & Filters

High-Pass Filter

Dynamics

No

Connectivity

Analog Audio I/O

8x Block 3-Pin Balanced Line Input
4x Block 4-Pin Speaker Output

Digital Audio I/O

No

Network I/O

No

Other I/O

1x Block 5-Pin Remote Input

USB I/O

No

Phantom Power

No

Wireless

No

Power

Input Power

100 to 240 VAC, 60 / 50 Hz

AC Power Connector

1x IEC 15 A / NEMA 5-15

Physical

Display

Single-LED Indicators Only

Rackmount Size

1 U

Cooling

1x Fan (Variable Speed)

Certifications

CE, FCC, RoHS, UL, WEEE

Dimensions

19 x 14.8 x 1.8" / 482.6 x 375.9 x 45.7 mm

Weight

12.8 lb / 5.81 kg

Packaging Info

Package Weight

17.3 lb

Box Dimensions (LxWxH)

23.3 x 20.2 x 6.6"

SKU QSCMPA80V-R
Barcode # 601527919006
Brand QSC
Brand QSC
Type Power Amplifier
Model MP-A80V
Shipping Cubic 0.017794000m3
